Vibration total values (triax vector sum) deter-
mined according to EN 60745:
Surface grinding: Vibration emission value
a

h

= 4.5 m/s

2

, Uncertainty K = 1.5 m/s

2

,

Disk sanding: Vibration emission value
a

h

= 3.0 m/s

2

, Uncertainty K = 1.5 m/s

2

.

The vibration emission level given in this informa-
tion sheet has been measured in accordance with
a standardised test given in EN 60745 and may be
used to compare one tool with another. It may be
used for a preliminary assessment of exposure.
The declared vibration emission level repre-
sents the main applications of the tool. However
if the tool is used for different applications, with
different accessories or poorly maintained, the
vibration emission may differ. This may signifi-
cantly increase the exposure level over the total
working period.
An estimation of the level of exposure to vibra-
tion should also take into account the times
when the tool is switched off or when it is run-
ning but not actually doing the job. This may sig-
nificantly reduce the exposure level over the to-
tal working period.
Identify additional safety measures to protect
the operator from the effects of vibration such
as: maintain the tool and the accessories, keep
the hands warm, organisation of work patterns.

Declaration of Conformity

We declare under our sole responsibility that
the product described under “Technical Data” is
in conformity with the following standards or
standardization documents: EN 60745 accord-
ing to the provisions of the directives
2004/108/EC, 98/37/EC (until Dec. 28, 2009),
2006/42/EC (from Dec. 29, 2009 on).
Technical file at:
Robert Bosch GmbH, PT/ESC,
D-70745 Leinfelden-Echterdingen

29.11.2007, Robert Bosch GmbH, Power Tools Division

D-70745 Leinfelden-Echterdingen

Assembly

Mounting the Protective Devices

f

Before any work on the machine itself, pull
the mains plug.

Protection Guard for Grinding

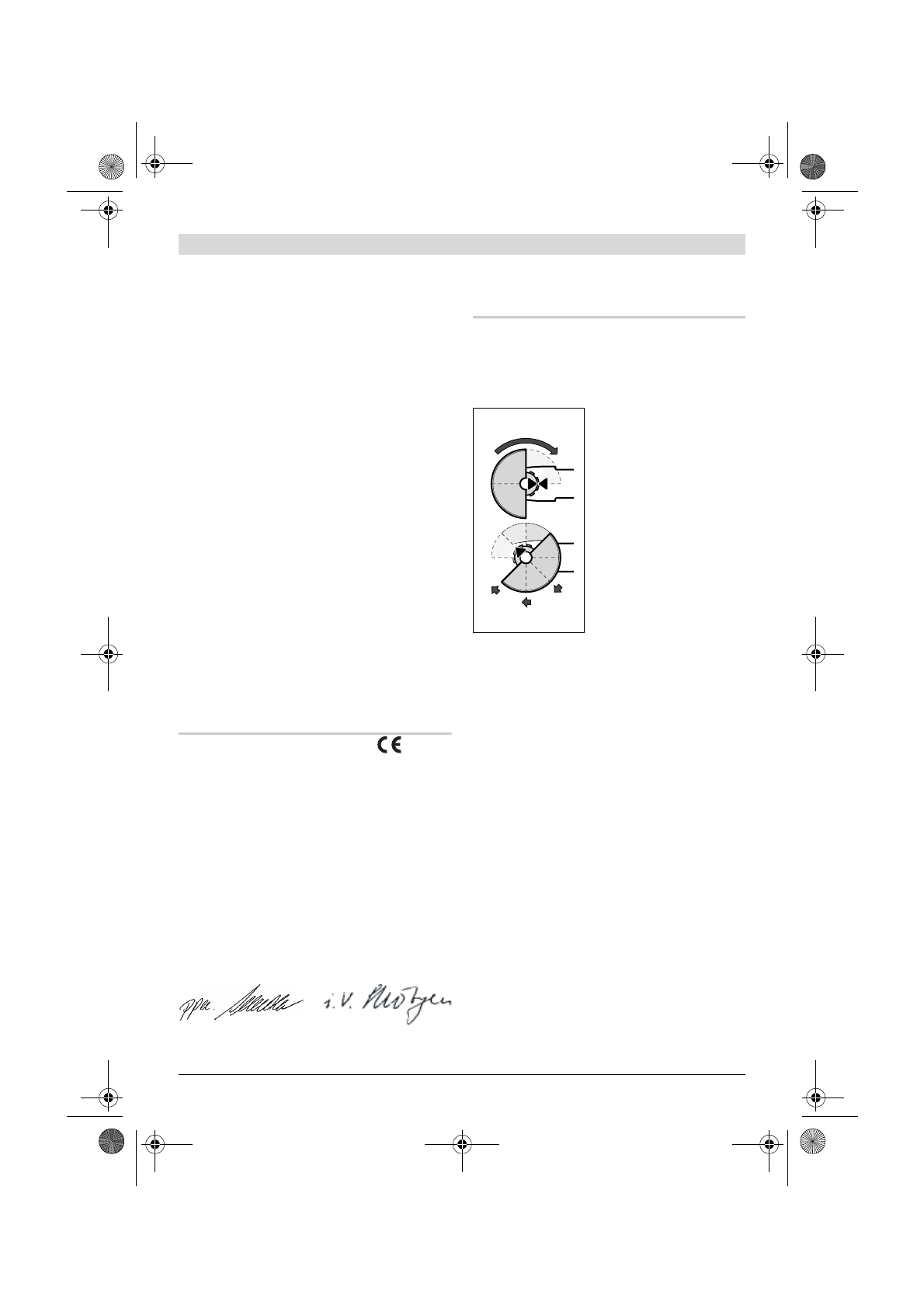

Place the protection guard

12

 onto the spindle collar

as shown in the illustration.
The triangle marks on the
protection guard must cor-
respond with the respec-
tive marks on the gear case.
Press the protection guard

12

 onto the spindle collar

until the shoulder of the
protection guard is seated
against the flange of the
machine, and turn the pro-
tection guard until it can
clearly be heard to engage.

Adjust the position of the protection guard

12

 to

the requirements of the work process. For this,
press the release lever

1

 upward and turn the

protection guard

12

 to the required position.

f

Adjust the protection guard 12 in such a
manner that sparking is prevented in the di-
rection of the operator.

f

The protection guard 12 may be turned only
upon actuation of the release lever 1! Oth-
erwise the power tool may not continue to
be used under any circumstances and must
be taken to an after-sales service agent.

Note:

 The encoding keys on the protection

guard

12

 ensure that only a protection guard

that fits the machine type can be mounted.

Protection Guard for Cutting

f

For cutting metal, always work with the pro-
tection guard for cutting 13.

f

For cutting stone, always work with the cut-
ting guide with dust extraction protection
guard 20.

The protection guard for cutting

13

 is mounted

in the same manner as the protection guard for
sanding

12

.
