Wear ear protectors.

Exposure to noise

can cause hearing loss.

Danger area! Keep hands, fingers or

arms away from this area.

Keep your fingers clear of the movable

parts of the glide arm.

Danger of fingers

being crushed or contused and considera-

bly injured.

Observe the dimensions of the saw blade. The hole diameter

must match the tool spindle without play. Do not use reduc-

ers or adapters.

When transporting the machine, hold it only

at the locations indicated (recessed han-

dles) or by the transport handle.

Never carry the power tool via the handle of

the glide arm.

Bevel lock lever open:

Adjusting bevel angles is possible.
Bevel lock lever shut:

The set bevel angle of the glide arm is locked.

Indicates the individual steps for adjusting the bevel angle.

1.

 Loosen lock lever

2.

 Tilt the glide arm lightly leftward

3.

 Set the desired bevel angle range on the rotary knob

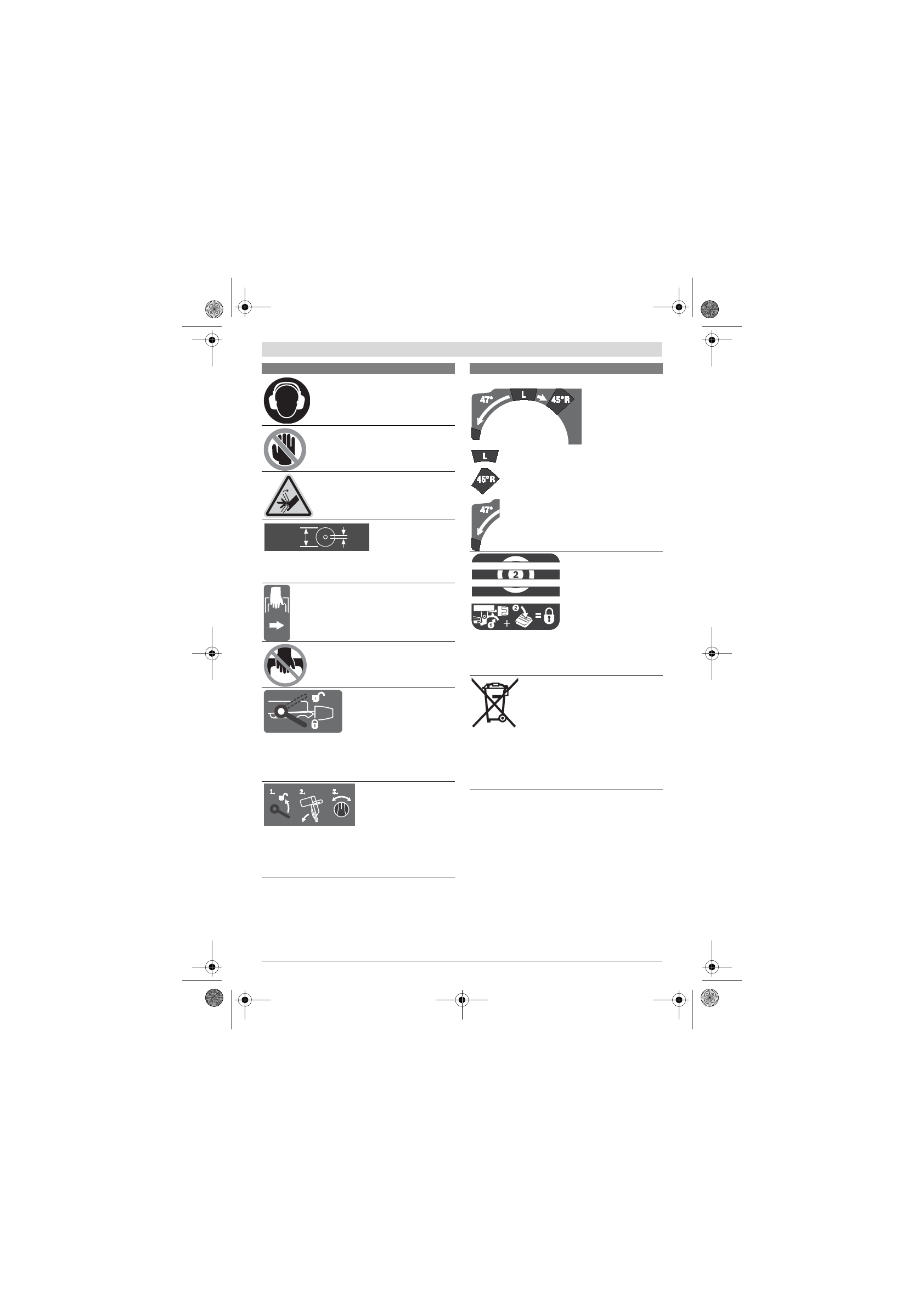

Symbols and their meaning

Ø

30

mm

Ø

305 mm

Setting bevel angle ranges on the rotary knob

Saw blade is inclined to the left (45 °  to 0 ° )

Saw blade is inclined to the right (0 °  to 45 ° )

Total tilting range of the glide arm (– 47 °  to +47 ° )

For adjustment of random mitre angles, the saw table must

move freely and the mitre detent override must be blocked:
– Pull lever

n

 and at the same time push the mitre detent

override

o

 downward at the front

Do not dispose of power tools into house-

hold waste!

Only for EC countries:

According to the European Guideline 2002/96/EC for Waste

Electrical and Electronic Equipment and its implementation

into national right, power tools that are no longer usable

must be collected separately and disposed of in an environ-

mentally correct manner.

Symbols and their meaning
