English
1-7

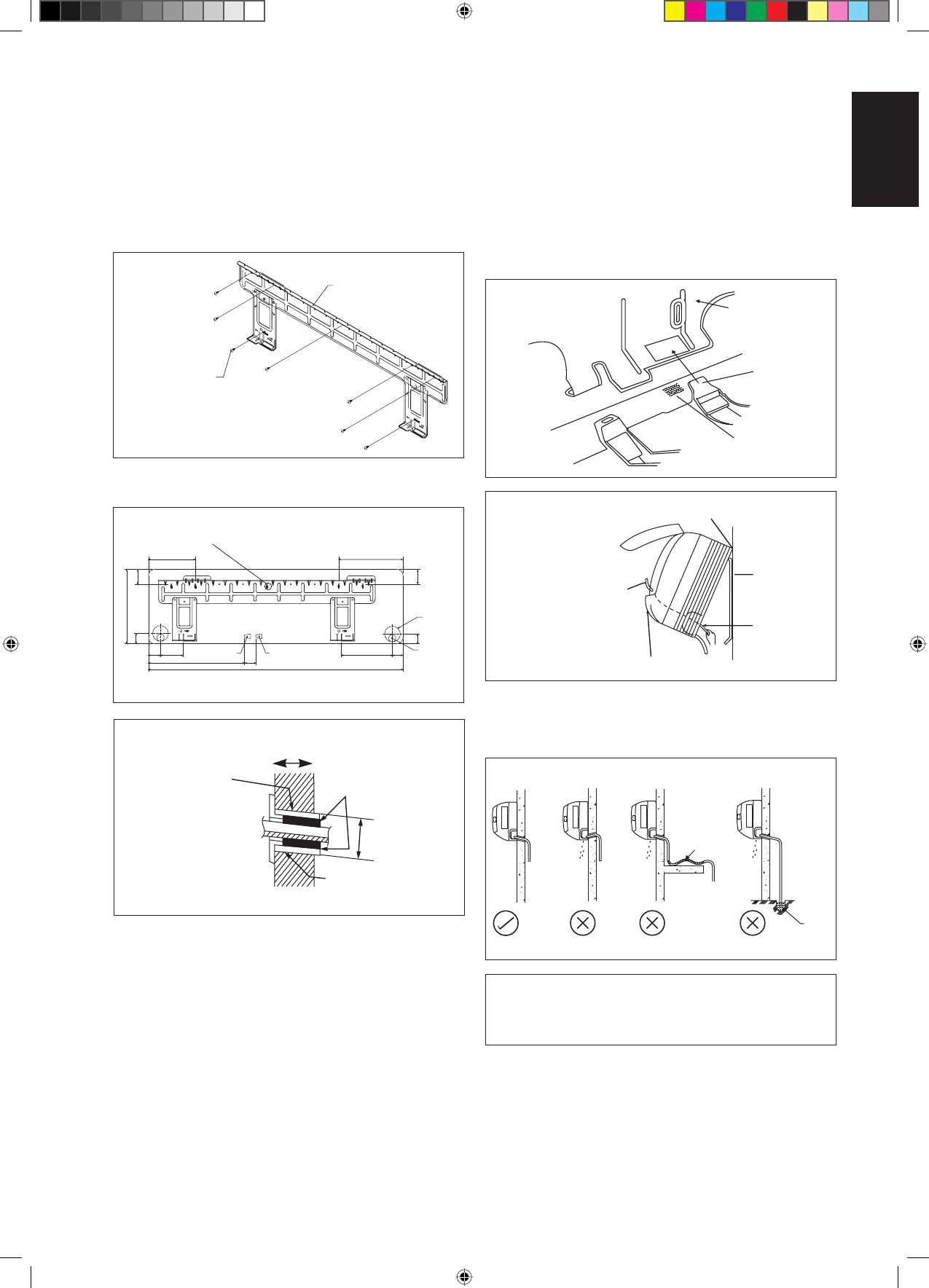

How To Attach The Indoor Unit
Hook the claws of the bottom frame to the mounting plate.
How To Remove The Indoor Unit
Push up the marked area (at the lower part of the front
grille) to release the claws.
Mount The Unit Onto The Installation Plate
Hook the indoor unit onto the upper portion of the installation
plate (Engage the two hooks at the rear top of the indoor unit
with the upper edge of the installation plate). Ensure that the
hooks are properly seated on the installation plate by moving
it to the left and right.
Mounting plate
Clip
Bottom frame
Mark (Rear side)
Front grille
Water
leaking
Water
retention
End
dipped
into
water
Drain
Correct
Wrong
Water
leaking
Water
leaking
Wrong
Wrong
Water Drainage Piping
The indoor drain pipe must be in a downward gradient for
smooth drainage. Avoid situations that are likely to cause
water to leak.
Water Drainage
W h e n s t r i p p i n g t h e e n d s
of interconnecting wires in
advance, bind right ends of
wires with insulating tape.
Hand indoor unit’s hook here.
Mounting plate
Interconnecting
wires
Wire guide
!
CAUTION
• Do not install the unit at altitude over 2000m for
both indoor & outdoor.
Mounting Installation Plate
Ensure that the wall is strong enough to withstand the weight
of the unit. Otherwise, it is necessary to reinforce the wall
with plates, beams or pillars.
Use the level gauge for horizontal mounting, and fix it with
7 suitable screws for FTXB50/60CV1B.
In case the rear piping draws out, drill a hole 65mm in
diameter with a cone drill, slightly lower on the outside wall
(see figure).
Mounting plate
Mounting plate
fixing screw
Recommended Mounting Plate Retention Spots And
Dimensions
Through
the wall
hole Ø
65mm
190
173
61
310
61
Drain hose
position
Gas pipe end
Liquid pipe end
48
45
580
1065
219
40
40
91
45
All dimensions are in mm
«
Recommended mounting plate
retention spots (7 spots in all)
Hole with cone drill
Inside
Ø 65
Wall embedded pipe
(Field supply)
Wall hole cover
(Field supply)
Wall embedded pipe
(Field supply)
Outside
Caulking
