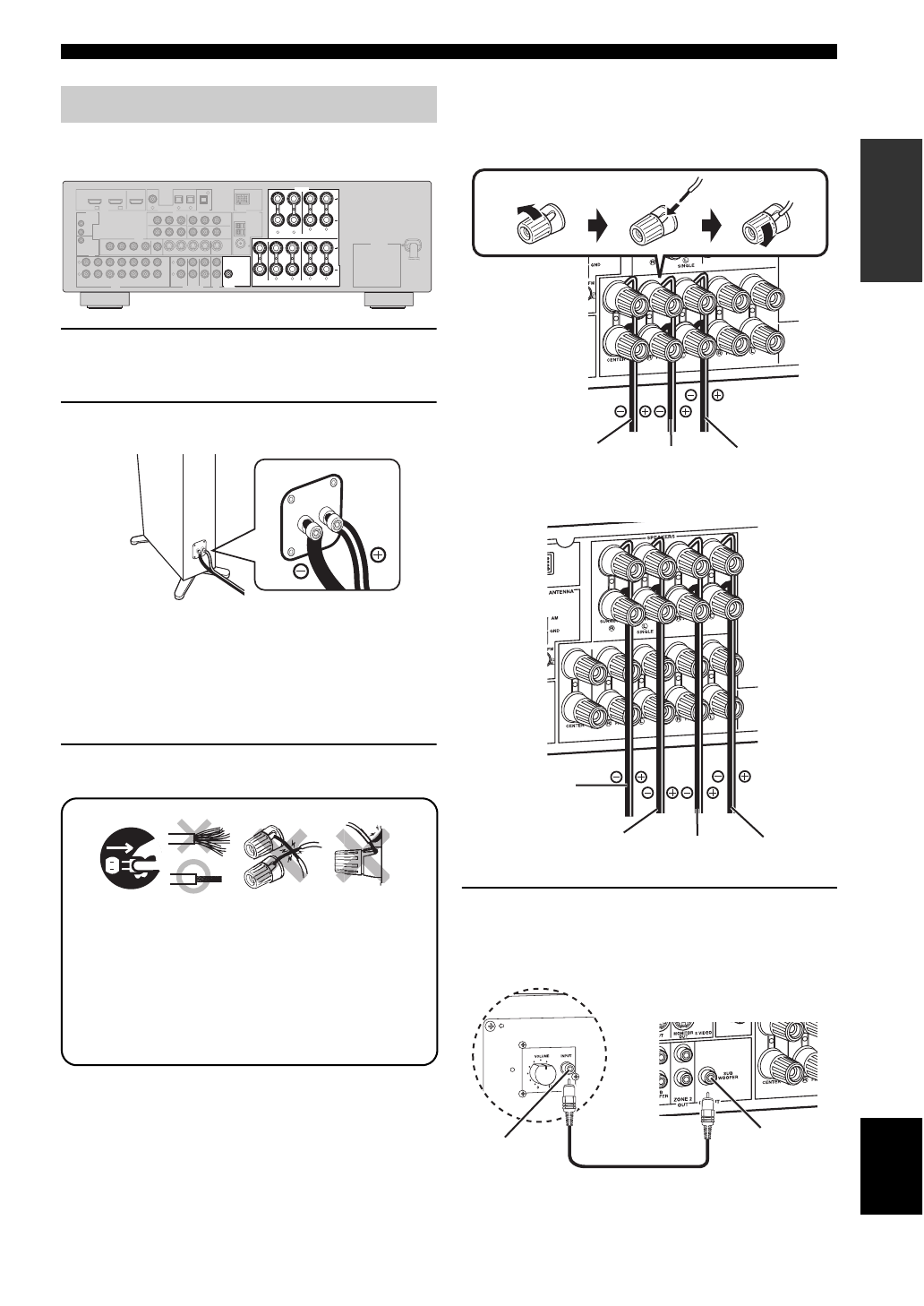

Quick start guide

5

En

English

INTR

ODUCTION

Place your speakers in the room and connect them to this
unit.

1

Place your speakers and subwoofer in the
room.

2

Connect speaker cables to each speaker.

Cables are colored or shaped differently, perhaps with
a stripe, groove or ridge. Connect the striped
(grooved, etc.) cable to the “+” (red) terminals of
your speaker. Connect the plain cable to the “–”
(black) terminals.

3

Connect each speaker cable to the
corresponding speaker terminal of this unit.

1

Make sure that this unit and the subwoofer are
unplugged from the AC wall outlets.

2

Twist the exposed wires of the speaker cables
together to prevent short circuits.

3

Do not let the bare speaker wires touch each other.

4

Do not let the bare speaker wires touch any metal
part of this unit.

Be sure to connect the left channel (L), right channel
(R), “+” (red) and “–” (black) properly.

Front and center speakers

Surround and surround back speakers

4

Connect the subwoofer cable to the input
jack of the subwoofer and the SUBWOOFER
OUTPUT jack of this unit.

Step 1: Set up your speakers

L

R SURROUND

L

R

FRONT B

L

R

FRONT A

CENTER

L

R

SURROUND BACK/BI-AMP

SINGLE

SWITCHED

MONITOR

OUT

L

R

DTV/CBL

DVR

DVD

MD/

CD-R

OUT

(REC)

IN

(PLAY)

OUT

IN

DTV/CBL

DVR

DVD

OUT

OUT

+12V
15mA MAX.

IN

IN

MONITOR

OUT

DTV/CBL

DVR

DVD

OUT

S VIDEO

IN

CD

L

R

SUB

WOOFER

SUB

WOOFER

SURROUND

CENTER

MULTI CH INPUT

AUDIO

VIDEO

OUTPUT

ZONE 2

OUT

FRONT(6CH)

SB(8CH)

1

2

3

DTV/CBL

DTV/CBL

MD/CD-R

OUT

DTV/CBL

DVR

DVD

DVD

OPTICAL

4

MD/CD-R

COAXIAL

DVD

P

R

P

B

Y

P

R

P

B

Y

MONITOR OUT

AM

GND

FM

75

UNBAL.

COMPONENT VIDEO

ANTENNA

SPEAKERS

HDMI

REMOTE

TRIGGER

OUT

DIGITAL INPUT

DIGITAL
OUTPUT

VIDEO

DOCK

IN1

IN2

AC OUTLETS

L

R SURROUND

L

R

FRONT B

L

R FRONT A

CENTER

L

R

SURROUND BACK/BI-AMP

SINGLE

SUB

WOOFER

OUTPUT

SPEAKERS

1

2

3

4

To the front

right speaker

To the front
left speaker

Loosen

Insert

Tighten

To the center

speaker

To the surround

back right

speaker

To the surround
back left speaker

To the surround
left speaker

To the surround
right speaker

SUBWOOFER
OUTPUT jack

Subwoofer cable

Input jack

AV receiver

Subwoofer
