12

 En

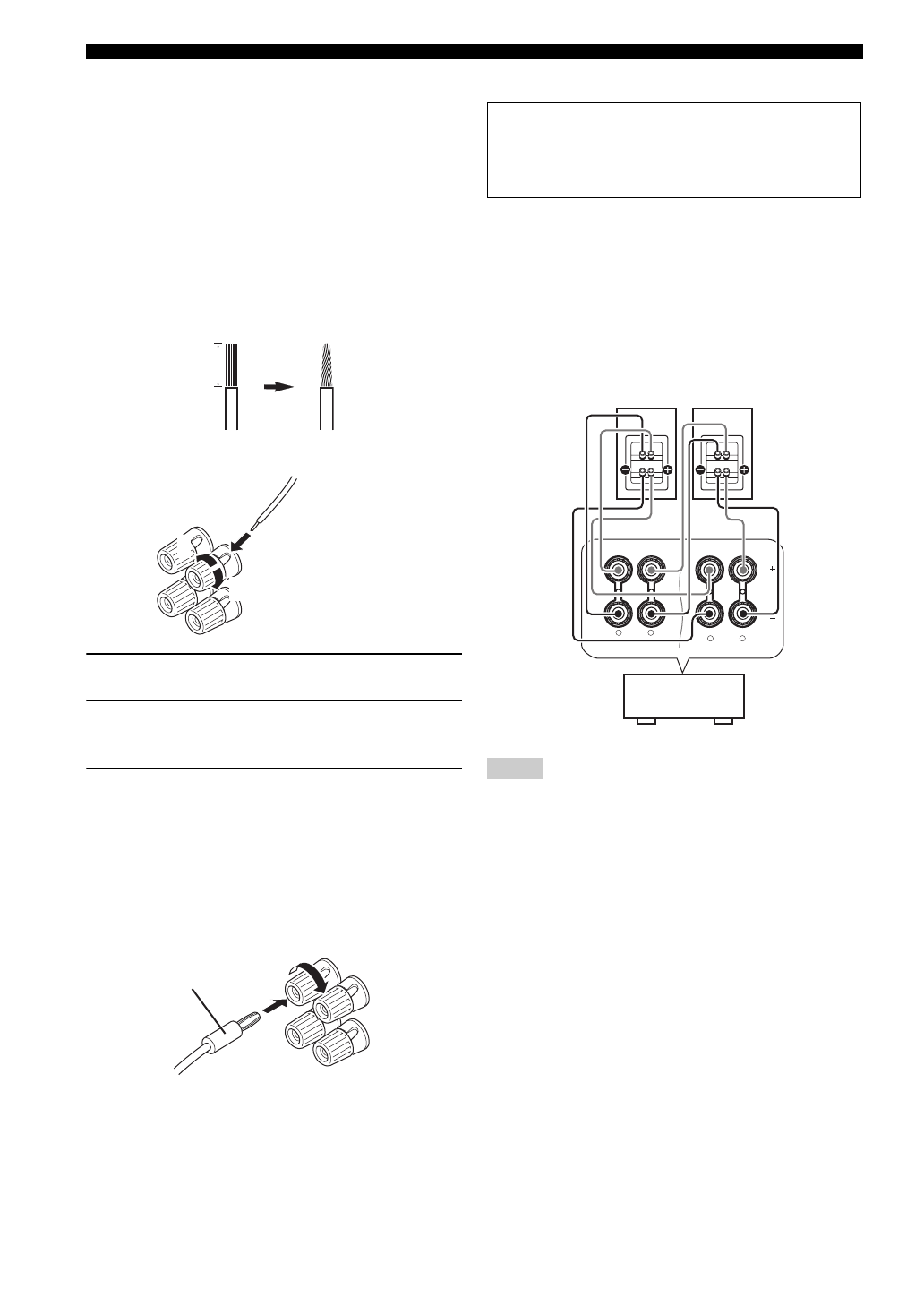

Connections

■

Before connecting to the SPEAKERS
terminal

A speaker cord is actually a pair of insulated cables
running side by side. Cables are colored or shaped
differently, perhaps with a stripe, groove or ridges.
Connect the striped (grooved, etc.) cable to the “+” (red)
terminals of this unit and your speaker. Connect the plain
cable to the “–” (black) terminals.

Remove approximately 10 mm (3/8”) of insulation
from the end of each speaker cable and then
twist the bare wires of the cable together to
prevent short circuits.

■

Connecting to the FRONT A terminals

1

Loosen the knob.

2

Insert the bare end of the speaker wire into
the hole on the terminal.

3

Tighten the knob to secure the wire.

Connecting the banana plug
(except Europe, Russia, Korea, and Asia models)

The banana plug is a single-pole electrical connector
widely used to terminate speaker cables. First, tighten the
knob and then insert the banana plug connector into the
end of the corresponding terminal.

■

Using bi-amplification connections

This unit allows you to make bi-amplification connections
to one speaker system. Check if your speakers support
bi-amplification.
To make the bi-amplification connections, use the FRONT
and SURROUND BACK terminals as shown below. To
activate the bi-amplification connections, set “BI-AMP”
to “ON” in “Advanced setup” (see page 77).

• When you make the conventional connection, make sure that

the shorting bars are put into the terminals appropriately. Refer
to the instruction manuals of the speakers for details.

• When you use bi-amplification connections, you can not use

surround back speakers.

10 mm (3/8”)

1

2

3

Red: positive (+)
Black: negative (–)

Banana plug

Caution

Remove the shorting bars or bridges to separate the
LPF (low pass filter) and HPF (high pass filter)
crossovers.

Notes

L

R

FRONT A

L

R

SURROUND BACK/BI-AMP

SINGLE

This unit

Left

Right

Front speakers
