24

 En

Connections

1

HDMI indicator

Lights up when the signal of the selected input source is
input at the HDMI IN jacks (see page 14).

2

DOCK indicator

• Lights up when you station your iPod in a Yamaha

iPod universal dock (such as YDS-10, sold separately)
connected to the DOCK terminal of this unit (see
page 20) and V-AUX is selected as the input source.

• Flashes while the connected Yamaha Bluetooth adapter

(such as YBA-10, sold separately) and the Bluetooth
component is in the paring (see page 55) or the
Bluetooth adapter is searching the Bluetooth
component (see page 55).

• Lights up while the connected Yamaha Bluetooth

adapter is connected to the Bluetooth component (see
page 20).

3

ENHANCER indicator

Lights up when the Compressed Music Enhancer mode is
selected (see page 40).

4

Input source indicators

The corresponding cursor lights up to show the currently
selected input source.

5

YPAO indicator

Lights up when you run “AUTO SETUP” and when the
speaker settings set in “AUTO SETUP” are used without
any modifications (see page 26).

6

Tuner indicators

Lights up when this unit is in the FM or AM tuning mode
(see pages 45 to 47).

7

96/24 indicator

Lights up when a DTS 96/24 signal is input to this unit.

8

MUTE indicator and VOLUME level indicator

• The MUTE indicator flashes while the MUTE function

is on (see page 37).

• Indicates the current volume level.

9

PCM indicator

Lights up when this unit is reproducing PCM (Pulse Code
Modulation) digital audio signals.

0

Decoder indicators

The respective indicator lights up when any of the
decoders of this unit function.

A

Headphone indicator

Lights up when headphones are connected (see page 37).

B

SP A B indicators

Light up according to the set of front speakers activated
(see page 35).
SP A: The FRONT A speakers are activated.
SP B: The FRONT B speakers are activated.

C

ZONE2 indicator

Lights up when Zone 2 is turned on (see page 75).

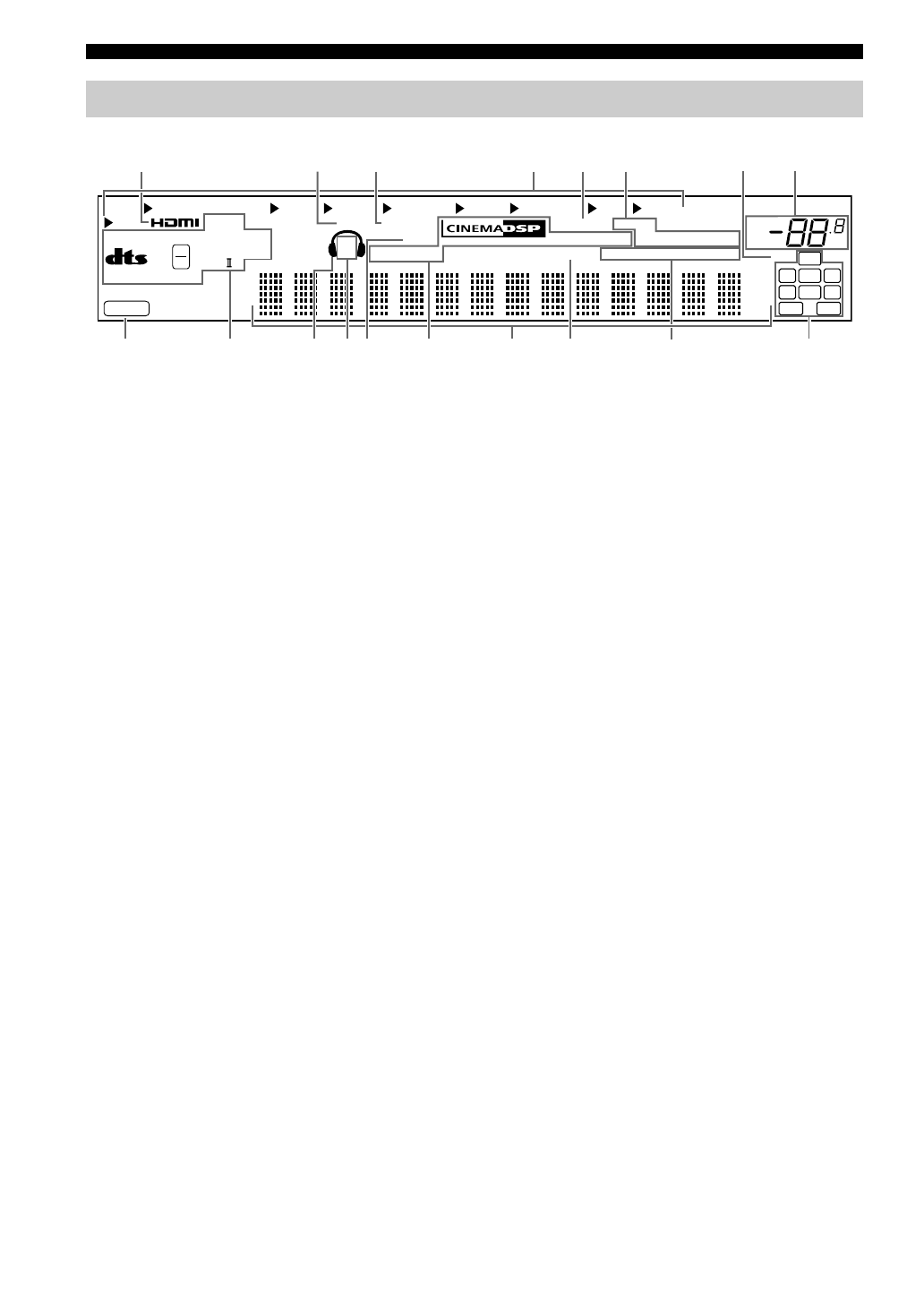

Front panel display

MUTE

ms

dB

ft

VOL.

dB

PCM

96/24

VIRTUAL AUTO

YPAO MEMORY

TUNED STEREO

EON

CT

RT

PTY

PS

HOLD

PTY

SLEEP

USB

MULTI CH

DVR

V-AUX

DTV/CBL

DVD

CD

MD/CD-R

TUNER

MATRIX DISCRETE

ES

DOCK

ENHANCER

SILENT CINEMA

ZONE 2

SP

A B

96
24

q

PL

x

LFE

L

L C R

SL SB SR

SBR

SBL

q

EX

q

DIGITAL PLUS

G

H

F

E

C

B

D

A

0

9

1

2

3

4

5

6

7

8
