Connections

This unit is equipped with the DOCK terminal on the rear
panel that allows you to connect a Yamaha iPod universal
dock (such as YDS-10, sold separately) or Bluetooth
adapter (such as YBA-10, sold separately). Connect a
Yamaha iPod universal dock or Bluetooth adapter to the
DOCK terminal on the rear panel of this unit using its
dedicated cable.

When the components are the Yamaha products and have
the capability of the transmission of the remote control
signals, connect the REMOTE IN jack and REMOTE
OUT jack to the remote control input and output jack with
the monaural analog mini cable as follows.

y

• If the components have the capability of the SCENE control

signals, this unit can automatically activate the corresponding
components and start the playback when you use one of the
SCENE buttons. Refer to the owner’s manuals for details about
the capability of the SCENE control signals of the components.

• If the component connected to the REMOTE OUT jack is not

the Yamaha product, set “SCENE IR” in the advanced setup
menu to “OFF” (see page 77).

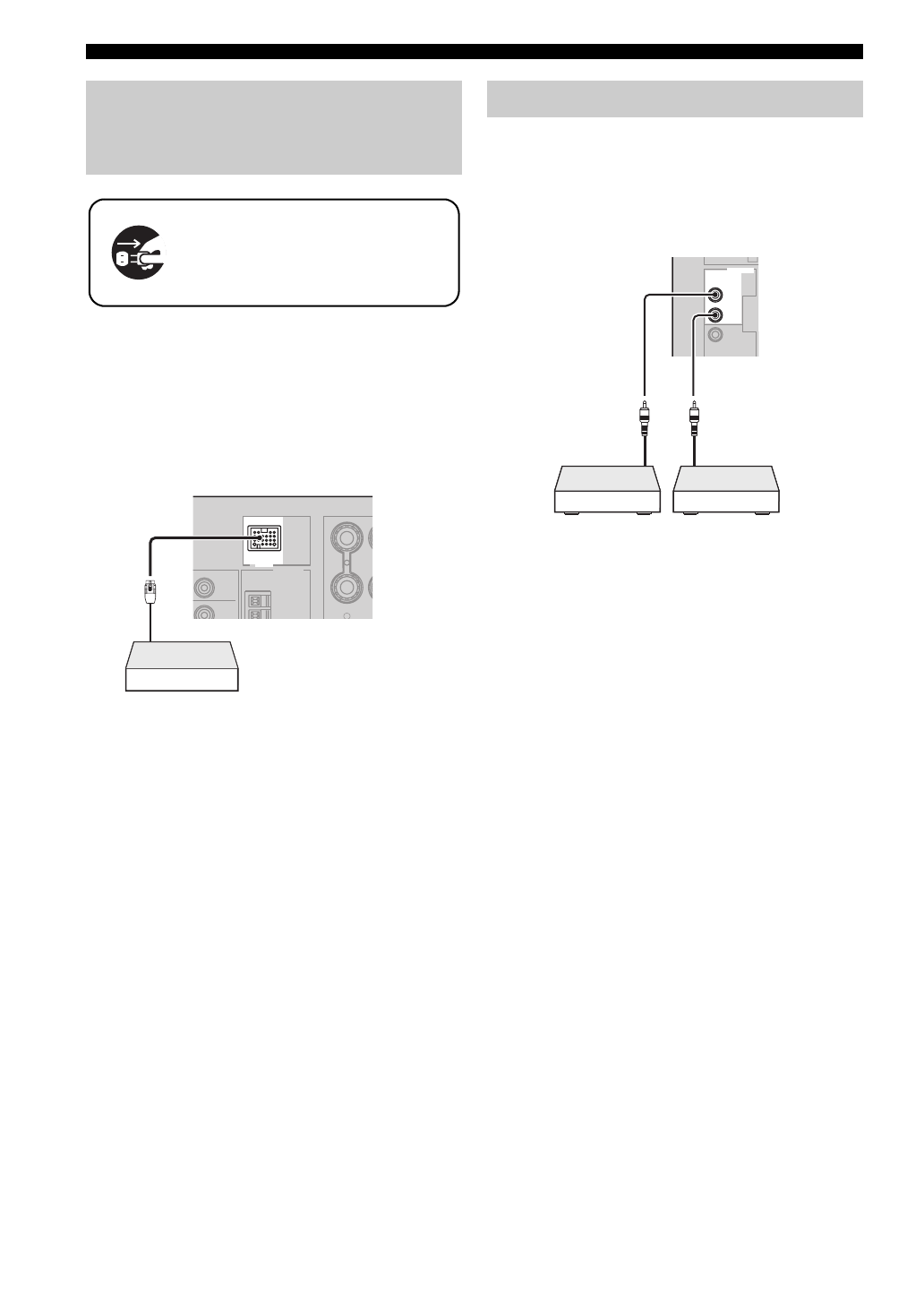

Connecting a Yamaha iPod™
universal dock or Bluetooth™
adapter

Make sure that this unit and other
components are unplugged from the
AC wall outlets.

R

SURROUND BAC

DTV/CBL

DVR

Y

AM

GND

ANTENNA

DOCK

DOCK

Yamaha iPod universal dock

or Bluetooth adapter

Using REMOTE IN/OUT jacks

OUT

+12V
15mA MAX.

IN

DVD

REMOTE

IN1

OUT

IN

REMOTE

Yamaha

component
(CD or DVD

player, etc.)

Remote
control in

Remote

control out

Infrared signal

receiver or

Yamaha

component
