21

 En

Connections

English

PRE

P

ARA

T

ION

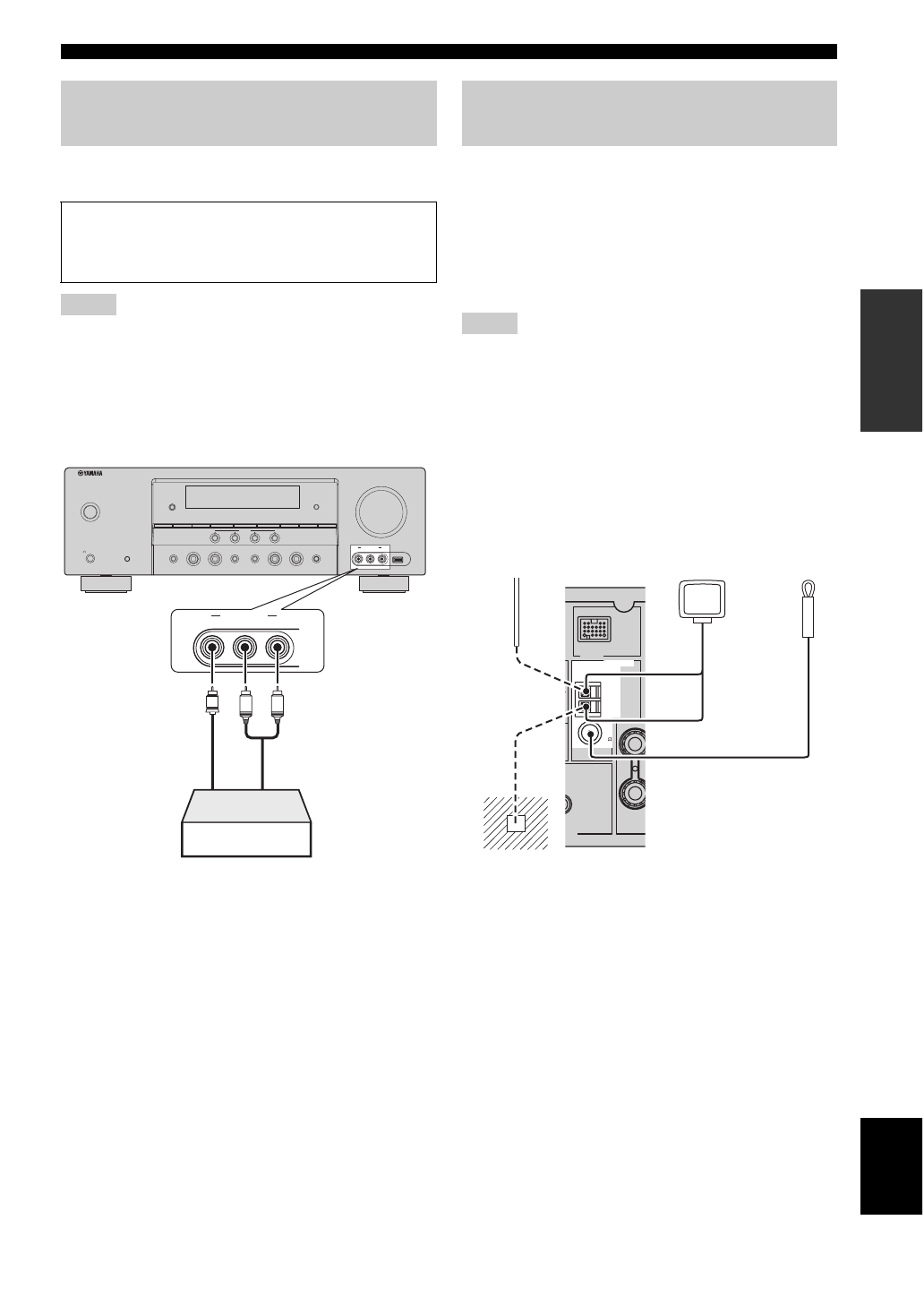

Use the VIDEO AUX jacks on the front panel to connect a
game console or a video camera to this unit.

• To reproduce the source signals input at these jacks, select

“V-AUX” as the input source.

• When audio signals are input at the AUDIO jacks and the

DOCK terminal on the rear panel, the priority order of the input
signal is as follows:
1. DOCK
2. AUDIO

Both FM and AM indoor antennas are supplied with this
unit. Connect each antenna correctly to the designated
terminals. In general, these antennas should provide
sufficient signal strength.

y

See page 22 for connection information of the supplied AM loop
antenna.

• The AM loop antenna should be placed away from this unit.
• The AM loop antenna should always be connected, even if an

outdoor AM antenna is connected to this unit.

• A properly installed outdoor antenna provides clearer reception

than an indoor one. If you experience poor reception quality,
install an outdoor antenna. Consult the nearest authorized
Yamaha dealer or service center about outdoor antennas.

Using the VIDEO AUX jacks on the
front panel

Caution

Be sure to turn down the volume of this unit and other
components before making connections.

Notes

SPEAKERS

PHONES

SILENT CINEMA

ON/OFF

A/B/OFF

l

   PRESET/TUNING/CH

h

A/B/C/D/E

BAND

ZONE 2
ON/OFF

EDIT

PRESET/TUNING

MEMORY

ZONE

CONTROL

TUNING  AUTO/MAN'L

OPTIMIZER MIC

AUDIO SELECT

DIRECT

STRAIGHT

EFFECT

TONE CONTROL

l

       INPUT

h

l

   PROGRAM

h

VOLUME

SCENE

1

2

3

4

MAIN ZONE

SYSTEM OFF

VIDEO

L    AUDIO    R

VIDEO AUX

USB

VIDEO

L    AUDIO    R

VIDEO AUX

V

L

R

Game console or

video camera

Video

output

Audio
output

Connecting the FM and AM
antennas

Notes

CENTER

O

SUB

WOOFER

PUT

AM

GND

FM

75

UNBAL.

ANTENNA

DOCK

AM

GND

FM

75

UNBAL.

ANTENNA

Indoor FM
antenna
(supplied)

Ground (GND terminal)

For maximum safety and minimum interference, connect the
antenna

GND

 terminal to a good earth ground. A good earth

ground is a metal stake driven into moist earth.

AM loop
antenna
(supplied)

Outdoor AM antenna

Use a 5 to 10 m (16 to 33
ft) vinyl-covered wire
extended outdoors from a
window.
