22

 En

Connections

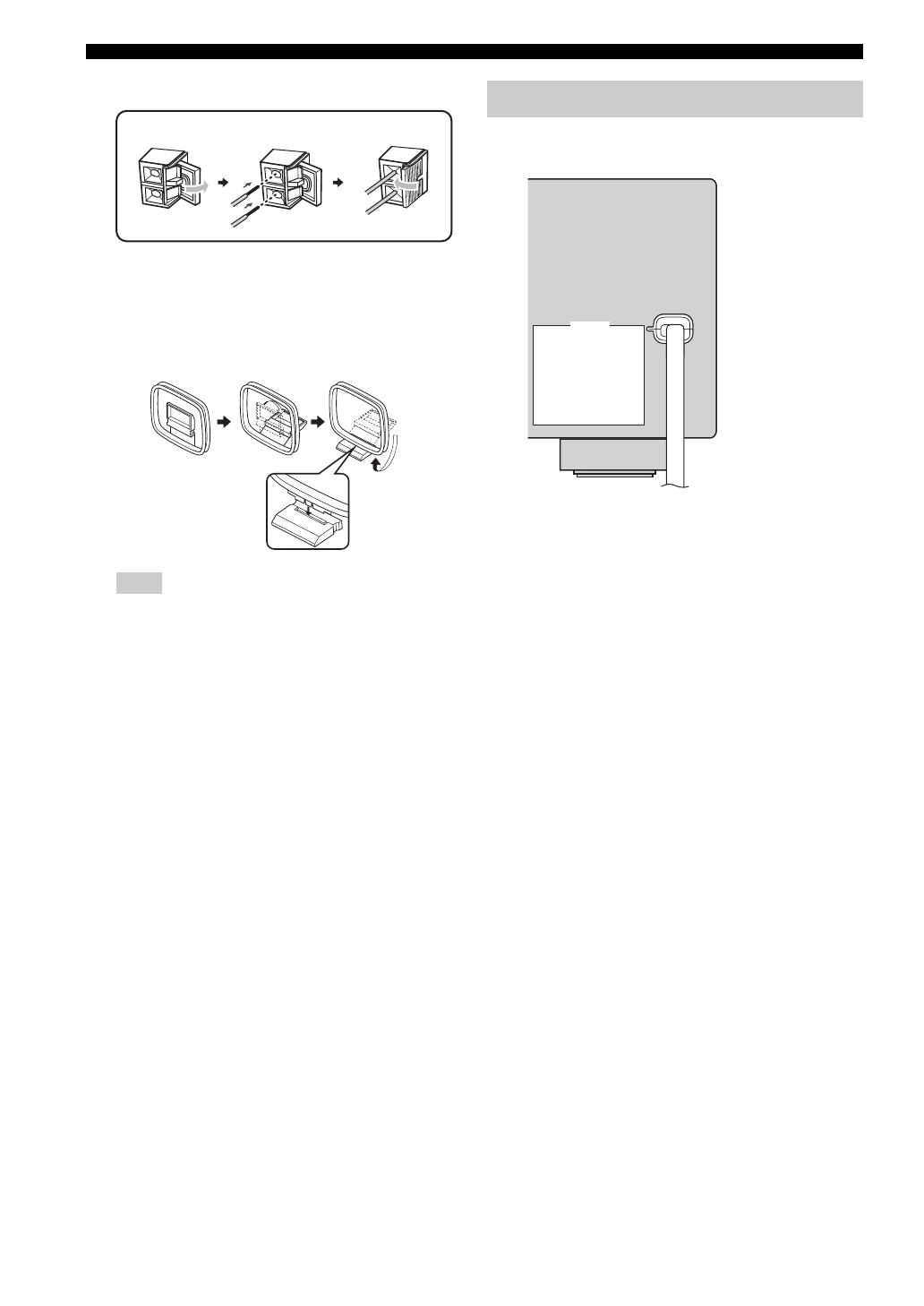

Connecting the wire of the AM loop antenna

y

The wire of the AM loop antenna does not have any polarity
and you can connect either end of the wire to AM or GND
terminal.

Assembling the supplied AM loop antenna

The types of the supplied AM loop antenna is different
depending on the models.

Once all connections are complete, plug the power cable
into the AC wall outlet.

■

AC OUTLET(S) (SWITCHED)

Australia model ......................................................  1 outlet
Korea model ............................................................... None
Other models ......................................................... 2 outlets

Use these outlet(s) to supply power to any connected
components. Connect the power cable of your other
components to these outlet(s). Power to these outlet(s) is
supplied when this unit is turned on. However, power to
these outlet(s) is cut off when this unit is set to the standby
mode. For information on the maximum power or the total
power consumption of the components that can be
connected to these outlet(s), see “Specifications” on
page 91.

Note

Open the lever

Insert

Close the lever

Connecting the power cable

SWITCHED

AC OUTLETS

SWITCHED

AC OUTLETS

Power cable
