25

 En

Connections

English

PRE

P

ARA

T

ION

D

CINEMA DSP indicator

Lights up when you select a sound field program (see
page 41).

VIRTUAL indicator

Lights up when Virtual CINEMA DSP is active (see
page 41).

SILENT CINEMA indicator

Lights up when headphones are connected and a
sound field program is selected (see page 41).

E

Multi-information display

Shows the name of the current sound field program and
other information when adjusting or changing settings.

F

SLEEP indicator

Lights up while the sleep timer is on (see page 39).

G

Radio Data System indicators
(Europe and Russia models only)

PTY HOLD

Lights up while searching for the Radio Data System
stations in the PTY SEEK mode.

PS, PTY, RT and CT

Light up according to the selected Radio Data System
display mode.

EON

Lights up when the EON data service is being
received.

H

Input channel and speaker indicators

Input channel indicators

• Indicate the channel components of the current

digital input signal.

• Light up or flash according to the settings of the

speakers when this unit is in the automatic setup
procedure (see page 26) or the speaker level setting
procedure in the “SP LEVEL” (see page 61).

■

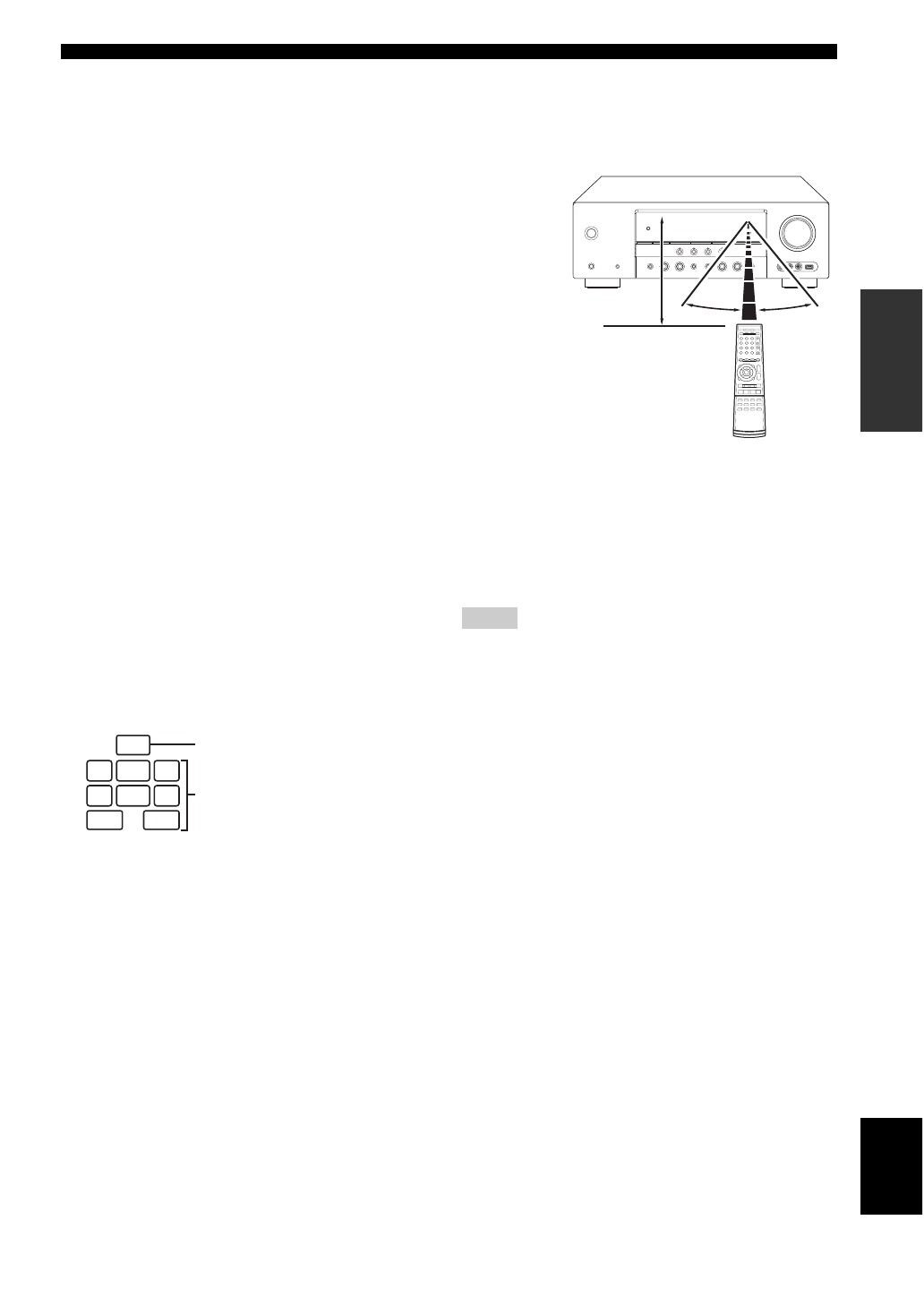

Using the remote control

The remote control transmits a directional infrared ray.
Be sure to aim the remote control directly at the remote
control sensor on this unit during operation.

1

 Infrared window

Outputs infrared control signals. Aim this window at the
component you want to operate.

y

To set the remote control codes for other components, see
page 73.

• Do not spill water or other liquids on the remote control.
• Do not drop the remote control.
• Do not leave or store the remote control in the following types

of conditions:
– places of high humidity, such as near a bath
– places of high temperature, such as near a heater or stove
– places of extremely low temperatures
– dusty places

Input channel indicators

LFE

L

L C R

SL SB SR

SBR

SBL

LFE indicator

Notes

30º

30º

Approximately 6 m (20 ft)
