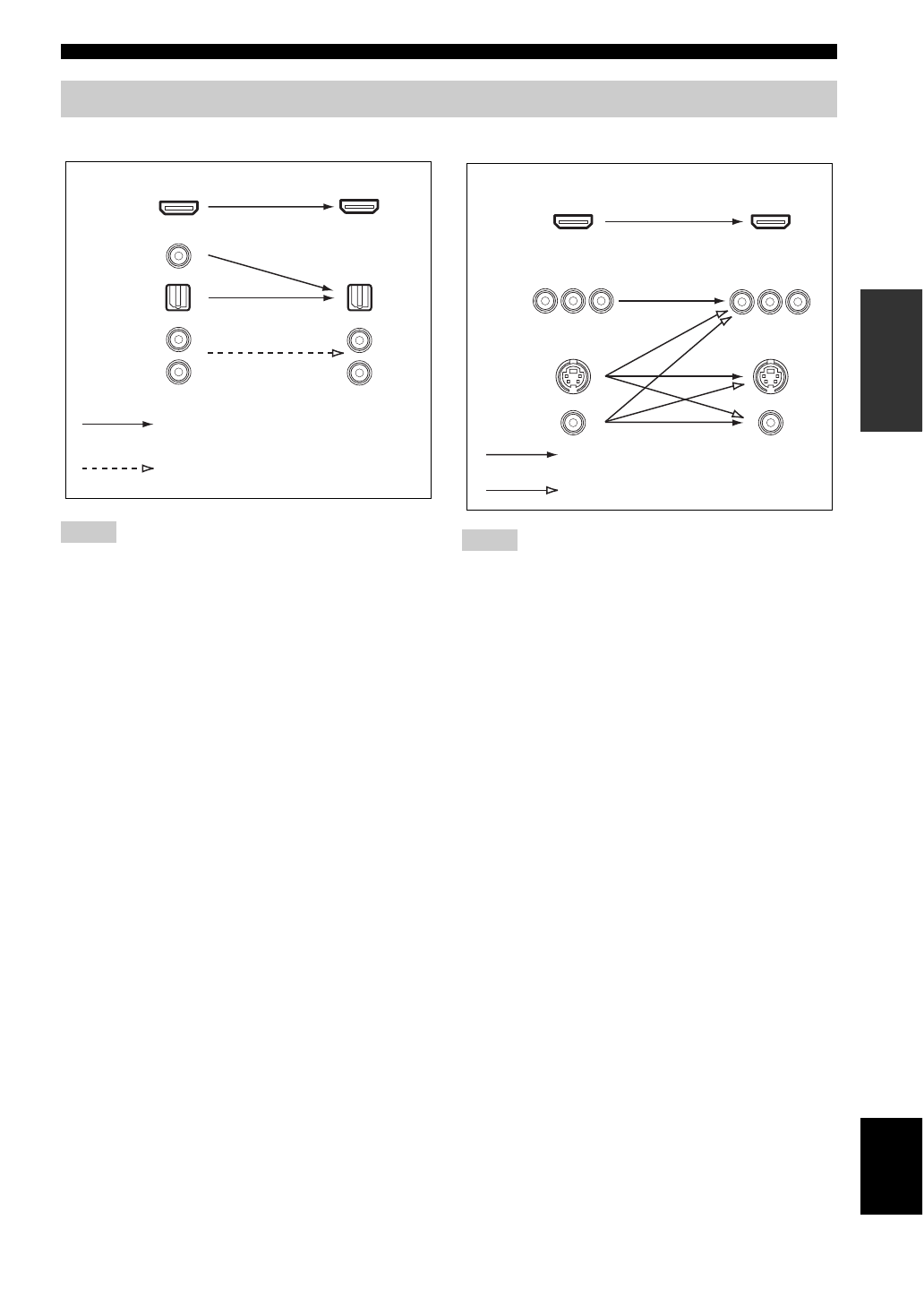

Audio signal flow

• 2-channel as well as multi-channel PCM, Dolby Digital and

DTS signals input at the HDMI IN DVD or HDMI IN
DTV/CBL jack can be output at the HDMI OUT jack only
when “SUPPORT AUDIO” is set to “Other” (see page 64).

• Audio signals input at the HDMI IN jacks are not output at the

AUDIO output and DIGITAL OUTPUT jacks.

■

Video signal flow

• When the all video signals are input at the HDMI,

COMPONENT VIDEO, S VIDEO and VIDEO jacks, the
priority order of the input signals is as follows:
1. HDMI
2. COMPONENT VIDEO
3. S VIDEO
4. VIDEO

• When some digital video signals are input at the HDMI IN

DVD or HDMI IN DTV/CBL jack, the video conversion
function does not work.

• Digital video signals input at the HDMI IN DVD or HDMI IN

DTV/CBL jack cannot be output from analog video output
jacks.

Audio and video signal flow

Notes

HDMI

AUDIO

DIGITAL AUDIO

(COAXIAL)

DIGITAL AUDIO

(OPTICAL)

Output

Input

Analog output

Digital output

Notes

S VIDEO

VIDEO

COMPONENT

VIDEO

HDMI

Through

Output

Input

Video conversion ON (see page 67)
