3

English

A

UAT(Y)(P)360, 420A

UAT(Y)(P)250, 300A

UAT(Y)(P)60~200A

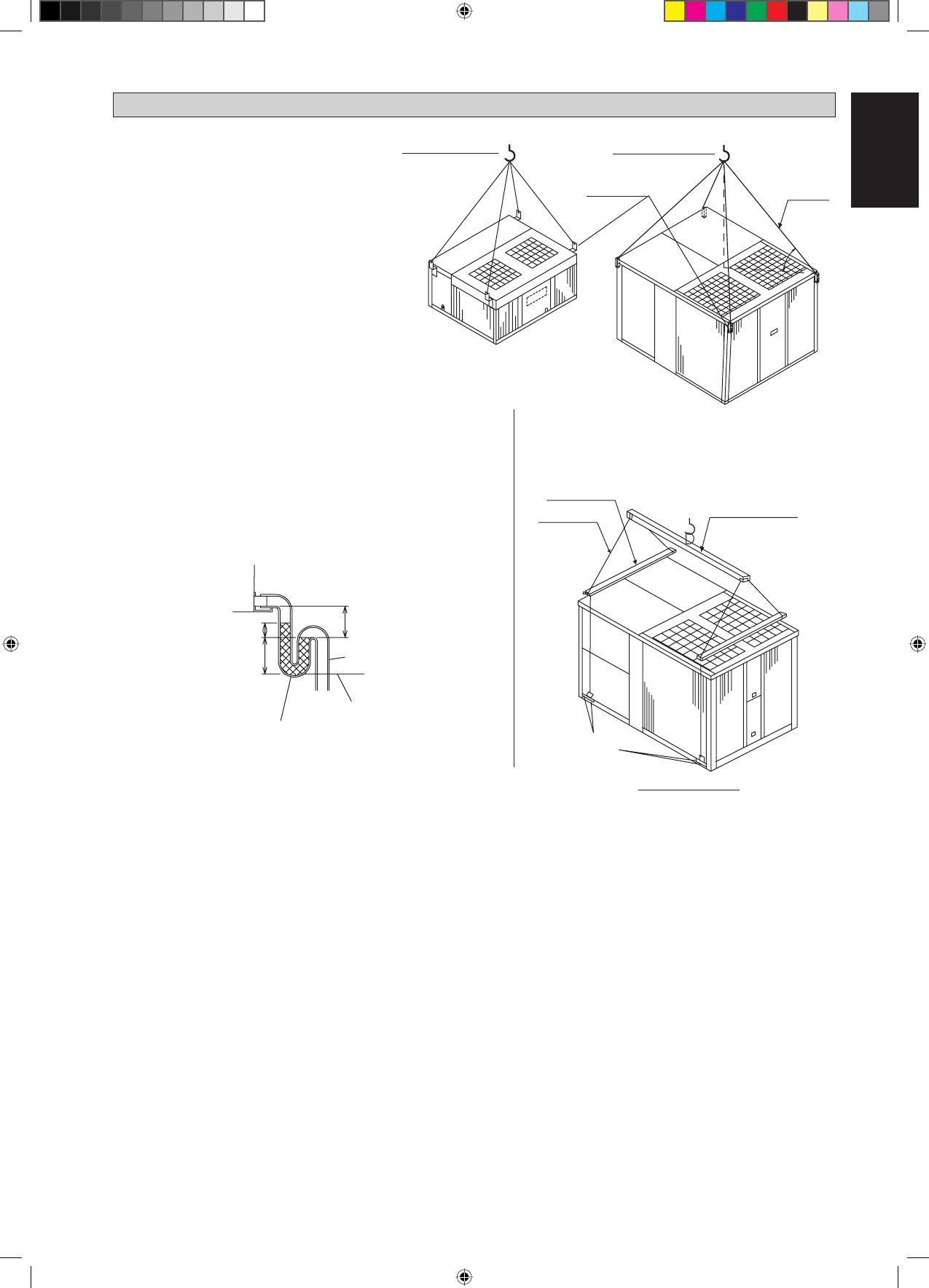

1.4  Unit Lifting

Hanger brackets at 4 corner of the unit are
used for unit lifting purpose.

The angle A of the chain should be at least 45°,
and insulation should be added at 4 corner of
the chain to prevent the damage of the panel
when lifting.

Note: ESP = External Static Pressure


Drain trap for condensate

Drain piping

Drain trap

The drain piping should have a drain trap.

A

B

C

The drain pipe
should extend
below this level.

Lifting Beam

Spreader Bar

Chain

Lifting Holes for shackle

(4 corners)

Chain

Hanger Bracket

A



  70mm

B



  2C

C



  2X ESP

INSTALLATION OF THE UNIT

1.5 Drain piping

 A 1 FPT condensate drain fitting is provided. The drain pipe can
be led out at the front side.
 The drain pipe must be provided with a trap on the outside of
the unit and also installed at an incline for proper drainage, as
shown in the right.
 To prevent condensate formation and leakage, provide the drain
pipe with insulation to safeguard against sweating.
 Upon completion of the piping work, check that there is no
leakage and that the water drains off properly.

•

•

•

•
