8

All electrical work must be carried out by quali

fi

  ed electrician and accordance with local supply requirement and associated

regulation.

•

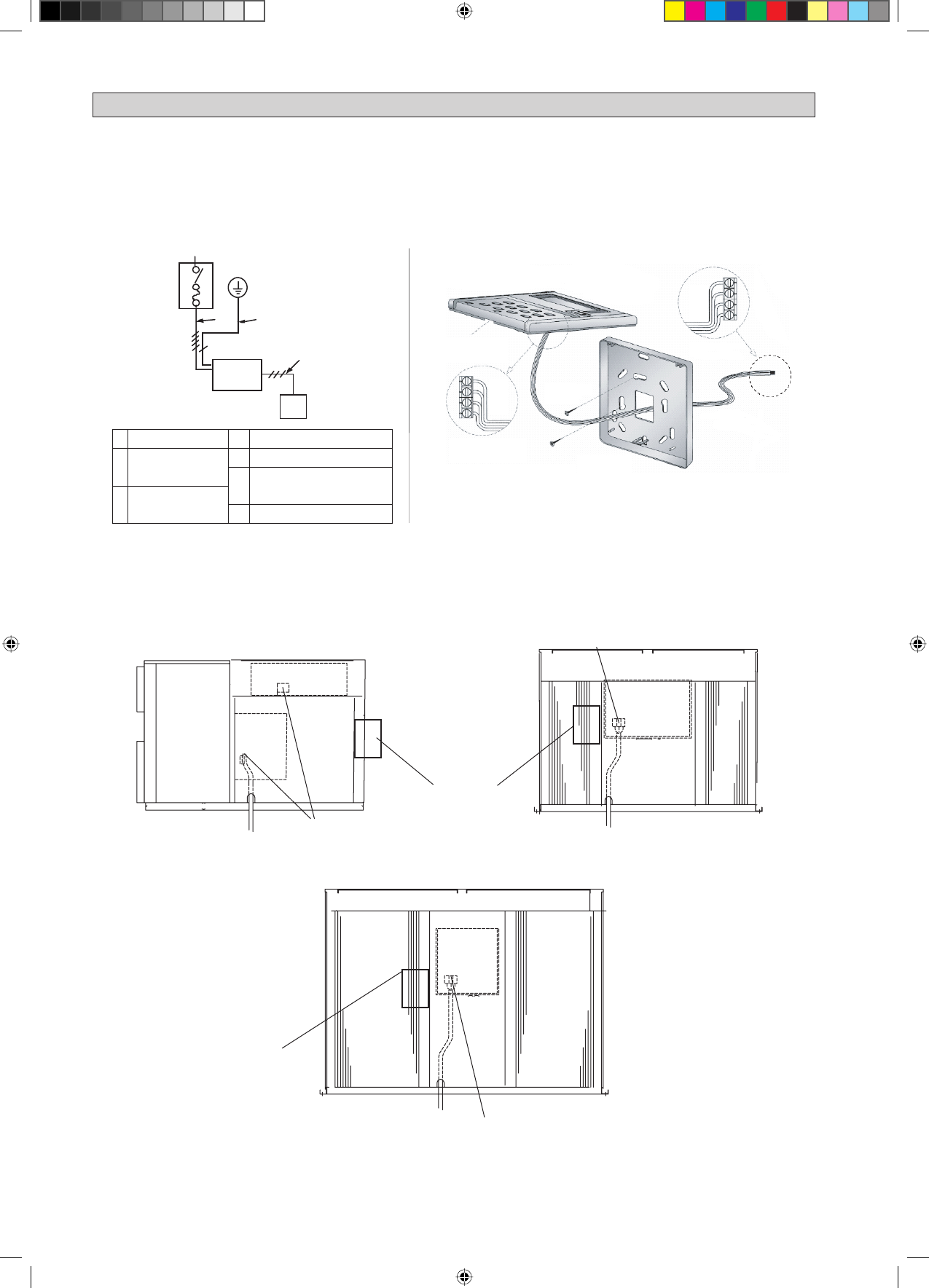

Method for connecting electric wire

Before connecting the wire, consult the electric power company of jurisdiction.

1. The entire wiring diagram of unit.

3. Wiring connection to unit
  Remove the panel and connect the units power supply wires to terminal block, as shown below.

UAT(Y)(P)60, 80, 100, 120A

UAT(Y)(P)150, 200A

Terminal block

Terminal block

UAT(Y)(P)60 only

UAT(Y)(P)250, 300, 360, 420A

Recommended
switch box
position

Recommended
switch box position

Terminal block

NOTE:

   While installing the circuit breaker onto the unit, make sure that the screws do not damage the components

(e.g. coil) inside of the unit.

The circuit breaker also can be installed without attaching to the unit.

a

b

c

g

d

e

f

2. Remote control wire connection.

UAT(Y)(P)150, 200, 250, 300, 360, 420A

Note:  For UAT(Y)(P)60, 80, 100, 120A, wire is attached the

remote control. Connect directly to connector 'CN2' on
mainboard.

LCD Remote

(Top case)

Connection at

Mainboard

Connection Wire
(

fi

 eld supply)

PE

GND

+5

B
A

GND

+5

B
A

Connection behind

Top case

WIRE CONNECTION

a. Power supply

d.

Unit

b.

Main switch/fuse
(

fi

 eld supply)

e. Remote control

f.

Connection wiring for
unit & remote controller

c.

Power supply
wiring for unit

g. Earth
