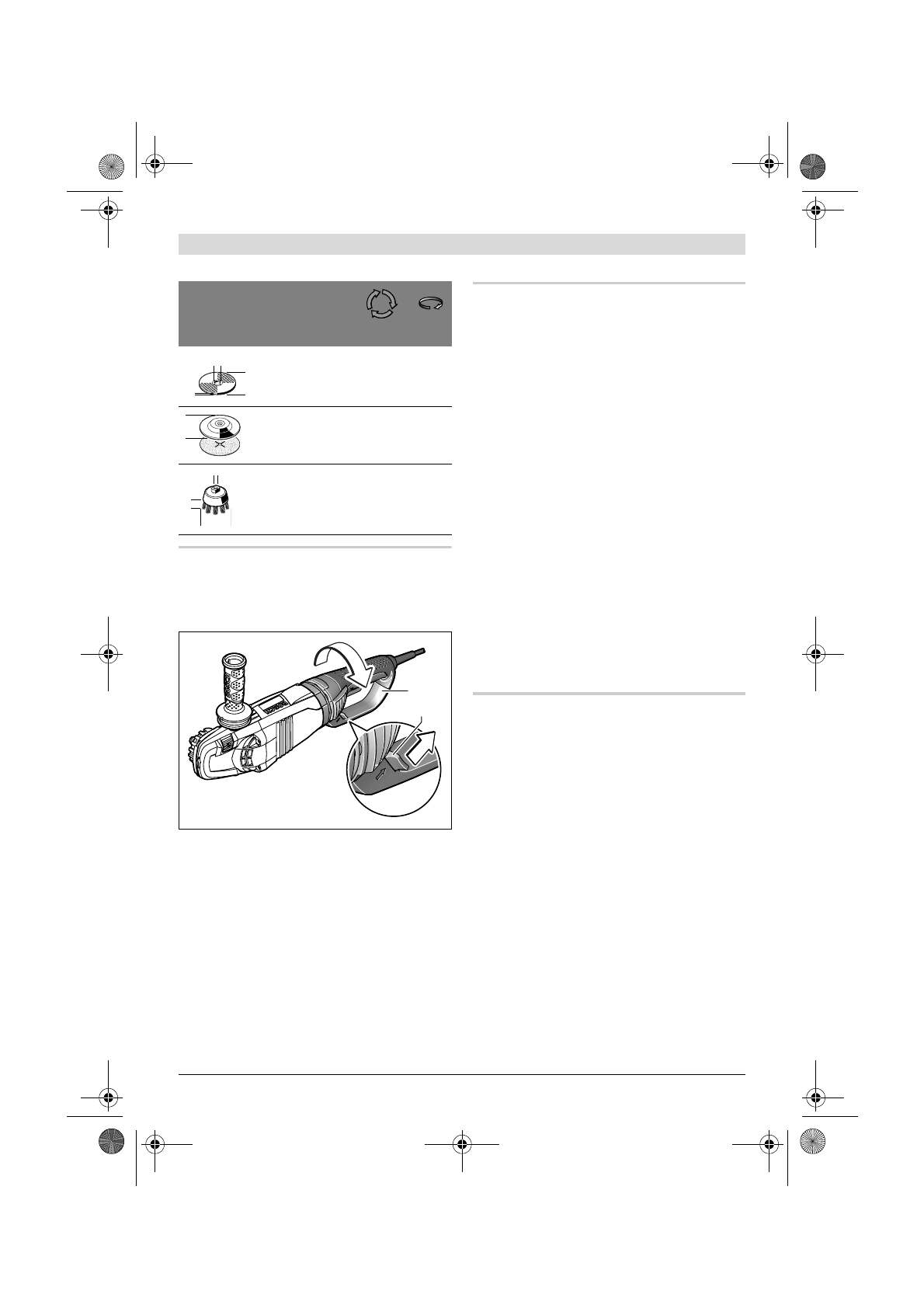

Rotating the Main Handle

(GWS 24-180 LVI / GWS 24-230 LVI)

f

Before any work on the machine itself, pull

the mains plug.

The main handle

24

 can be rotated with respect

to the machine housing toward the left or right

in steps of 90°. In this manner, the On/Off

switch can be brought into a more convenient

position for special working situations, e.g., for

cutting operations using the cutting guide with

dust extraction protection guard

21

/cut off

stand or for left-handed persons.
Press the handle unlocking button

25

 in the di-

rection of the arrow and at the same time turn

the main handle

24

 to the requested position

until it latches.

Dust/Chip Extraction

f

Dusts from materials such as lead-containing

coatings, some wood types, minerals and

metal can be harmful to one’s health. Touch-

ing or breathing-in the dusts can cause aller-

gic reactions and/or lead to respiratory infec-

tions of the user or bystanders.

Certain dusts, such as oak or beech dust, are

considered as carcinogenic, especially in

connection with wood-treatment additives

(chromate, wood preservative). Materials

containing asbestos may only be worked by

specialists.

–

Use dust extraction whenever possible.

–

Provide for good ventilation of the work-

ing place.

–

It is recommended to wear a P2 filter-

class respirator.

Observe the relevant regulations in your

country for the materials to be worked.

Operation

Starting Operation

f

Observe correct mains voltage! The voltage

of the power source must agree with the

voltage specified on the nameplate of the

machine. Power tools marked with 230 V

can also be operated with 220 V.

When operating the machine with power from

mobile generators that do not have sufficient re-

serve capacity or are not equipped with suitable

voltage control with starting current amplifica-

tion, loss of performance or untypical behavior

can occur upon switching on.

Please observe the suitability of the power gen-

erator being used, particularly with regard to

the mains voltage and frequency.

Switching On and Off

To

start

 the power tool, press the On/Off switch

3

 forward and then down.

To

lock-on

 the pressed On/Off switch

3

, push

the On/Off switch

3

 further forward.

max.

[mm]

[mm]

D

b

d

[rpm] [m/s]

180

230

8

8

22.2

22.2

8 500

6 500

80

80

180

230

–

–

8 500

6 500

80

80

100 30 M 14

8 500

45

b

d

D

D

D

b

d

25

24
