1-12

2

SIG

1

N

L

Model

ATXN25/35MV1B ATXN50/60MV1B

ARXN25/35MV1B ARXN50/60MV1B

Voltage range**

220-240V/~/50Hz +

!



Power supply cable size* mm

2

Number of Conductors

1.5

3

2.5

3

Interconnection cable size* mm

2

Number of Conductors

1.5

4

2.5

4

Recommended fuse/circuit breaker rating

A

15

20

* If the length of the cable is more than 2m, use cable with bigger size.

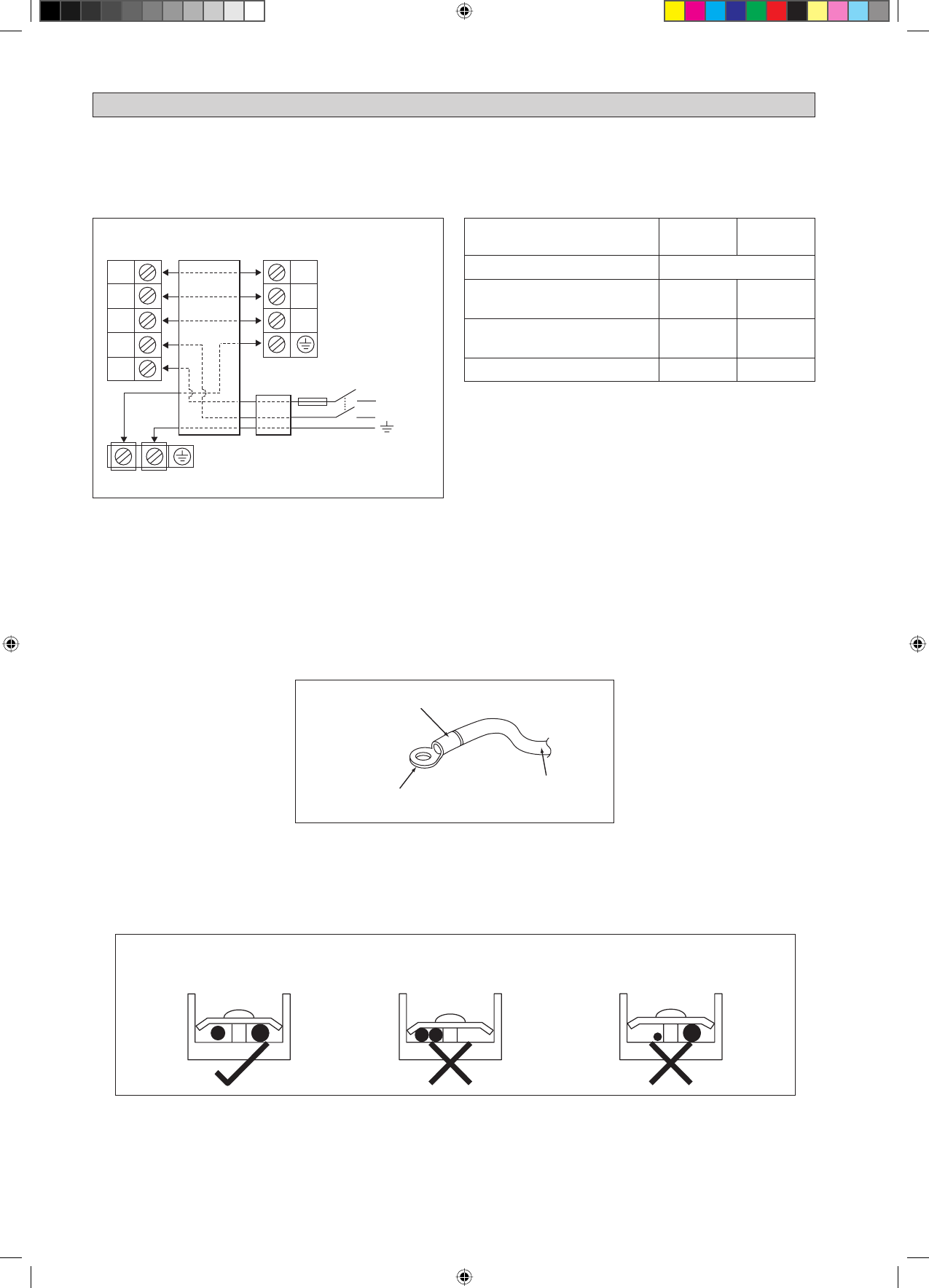

ELECTRICAL WIRING CONNECTION

IMPORTANT :



*  The figures shown in the table are for information purpose only. They should be checked and selected

to comply with the local/national codes of regulations. This is also subject to the type of installation and
conductors used.



**  The appropriate voltage range should be checked with label data on the unit.

Outdoor Unit
Terminal Block

Indoor Unit

Terminal Block

There must be an all pole disconnection
in the supply mains with a contact
separation of at least 3mm.

!

Attach insulation sleeve

Round crimp-style terminal

Electric wire

All wires must be firmly connected.
Make sure all the wire do not touch the refrigerant pipings, compressor or any moving parts.
The connecting wire between the indoor unit and the outdoor unit must be clamped by using provided cord anchorage.
The power supply cord must be equivalent to H07RN-F which is the minimum requirement.
Make sure no external pressure is applied to the terminal connectors and wires.
Make sure all the covers are properly fixed to avoid any gap.
Use round crimp-style terminal for connecting wires to the power supply terminal block. Connect the wires by matching
to the indication on terminal block. (Refer to the wiring diagram attached on the unit).







Connect wires of the
same gauge to both side.

Do not connect wires of the
same gauge to one side.

Do not connect wires
of different gauges.

Used the correct screwdriver for terminal screws tightening. Unsuitable screwdrivers can damage the screw head.
Over tightening can damage the terminal screws.
Do not connect wire of different gauge to same terminal.
Keep wiring in an orderly manner. Prevent the wiring from obstructing other parts and the terminal box cover.




N / L2

L / L1

Power

Supply

Main

Switch

Fuse /

Circuit

Breaker

Power
Supply
Cable

2

SIG

1

Interconnection

cable

1 IM-5WMYJ-1113(0)DK SIESTA_EN.i12   12

1 IM-5WMYJ-1113(0)DK SIESTA_EN.i12   12

1/13/14   5:17:30 PM

1/13/14   5:17:30 PM
