The indoor unit must be installed in such a way so as to prevent
short circuit of the cool discharged air with the hot return air.

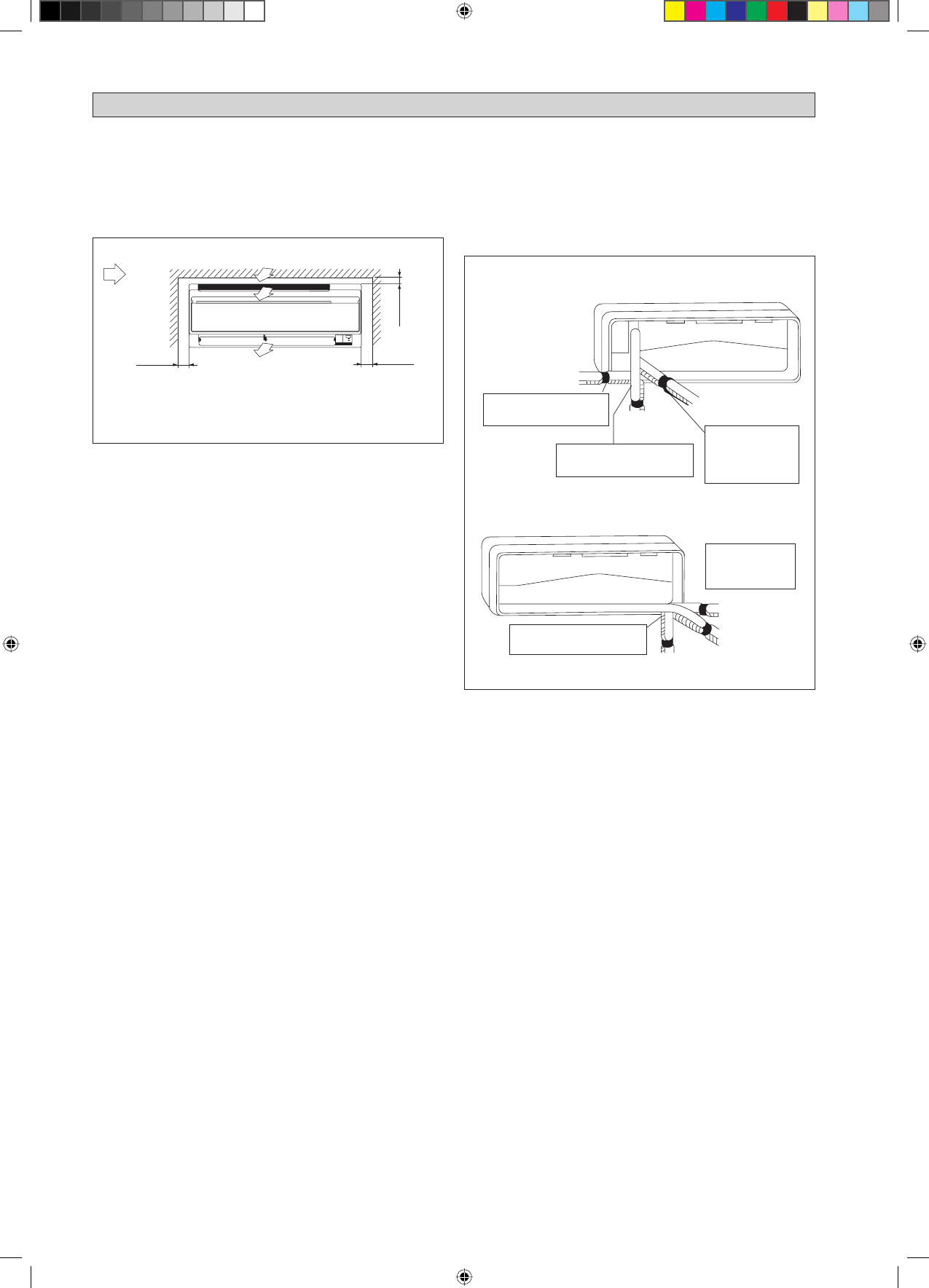

Please follow the installation clearance shown in the figure. Do
not place the indoor unit where there could be direct sunlight
shining on it. Also, this location must be suitable for piping
and drainage, and be away from doors or windows.

min. 50
(Space for
maintenance)

Air flow
(Indoor)

The refrigerant piping can be routed to the unit in a number
of ways (left or right from the back of the unit), by using the
cut-out holes on the casing of the unit. Bend the pipes carefully
to the required position in order to align it with the holes. For
the side and bottom out, hold the bottom of the piping and
then position it to the required direction. The condensation
drain hose can be taped to the pipes.

Right-side, right-back or right-bottom piping

min. 50
(Space for
maintenance)

min. 30

(Space for

performance)

Required space

Right-back piping

All dimensions are in mm

Right-bottom
piping

Right-side piping

Remove pipe port cover
here for right-side piping

Left-back piping

Left-side piping

Left-bottom piping

Left-side, left-back or left-bottom piping

INSTALLATION OF THE INDOOR UNIT

Remove pipe port cover
here for right-bottom piping

Bind coolant pipe
and drain hose
together with
insulating tape.

Remove pipe port
cover here for
left-side piping

Remove pipe port cover
here for left-bottom piping
