CONTROLS AND FUNCTIONS

7

INTR

ODUCTION

English

1

PHONO jacks and GND terminal

See page 8 for connection information.

2

Audio input/output jacks

See page 8 for connection information.

3

AC OUTLET(S)

Use to supply power to your other audio/video
components.
See page 10 for details.

4

AC power supply cord

See page 10 for connection information.

5

SPEAKERS terminals

Connect one or two speaker sets.
See page 8 for connection information.

6

IMPEDANCE SELECTOR

See “IMPEDANCE SELECTOR switch” on this page.

■

Asia and General models only

VOLTAGE SELECTOR is only applicable to the Asia and
General models.

VOLTAGE SELECTOR

See page 10 for details.

■

IMPEDANCE SELECTOR switch

Do not change the IMPEDANCE SELECTOR switch
while the power of this unit is turned on, as doing so may
damage the unit.
If this unit fails to turn on, the IMPEDANCE SELECTOR
switch may not be fully slid to either position. If this is the
case, slide the switch all the way to either position when
this unit’s power supply is completely cut off.
Select the switch position (left or right) according to the
impedance of the speakers in your system.

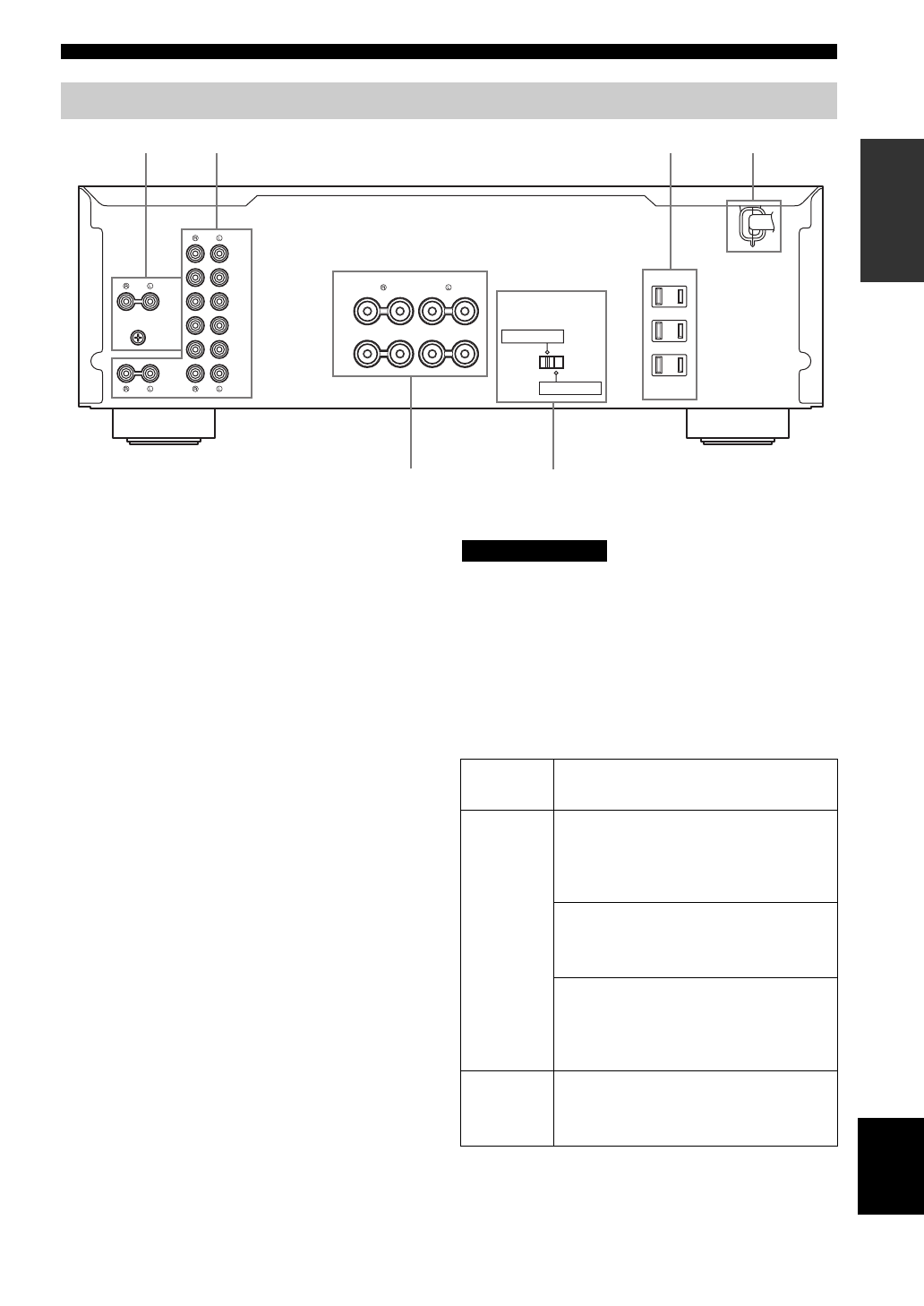

Rear panel

AC OUTLETS

IMPEDANCE SELECTOR

SPEAKERS

TUNER

TAPE

IN

(PLAY)

OUT

(REC)

MD

AUX

GND

PHONO

CD/DVD

IN

(PLAY)

OUT

(REC)

SWITCHED

100W MAX. TOTAL

+

+

A

B

–

–

A OR B: 4

Ω

MIN / SPEAKER

A+B: 8

Ω

MIN / SPEAKER

A OR B:   6

Ω

MIN / SPEAKER

5

1

2

3

4

6

(U.S.A. model)

Switch

position

Impedance level

Right

Asia model

• If you use one set (A or B), the impedance of

each speaker must be 8

Ω

 or higher.

• If you use two sets (A and B), the impedance

of each speaker must be 16

Ω

 or higher.

Canada model

• You can use one set (A or B), and the

impedance of each speaker must be 6

Ω

 or

higher.

Other models

• If you use one set (A or B), the impedance of

each speaker must be 6

Ω

 or higher.

• If you use two sets (A and B), the impedance

of each speaker must be 12

Ω

 or higher.

Left

• If you use one set (A or B), the impedance of

each speaker must be 4

Ω

 or higher.

• If you use two sets (A and B), the impedance

of each speaker must be 8

Ω

 or higher.

CAUTION
