9

CONNECTIONS

PREP

ARA

TION

English

1

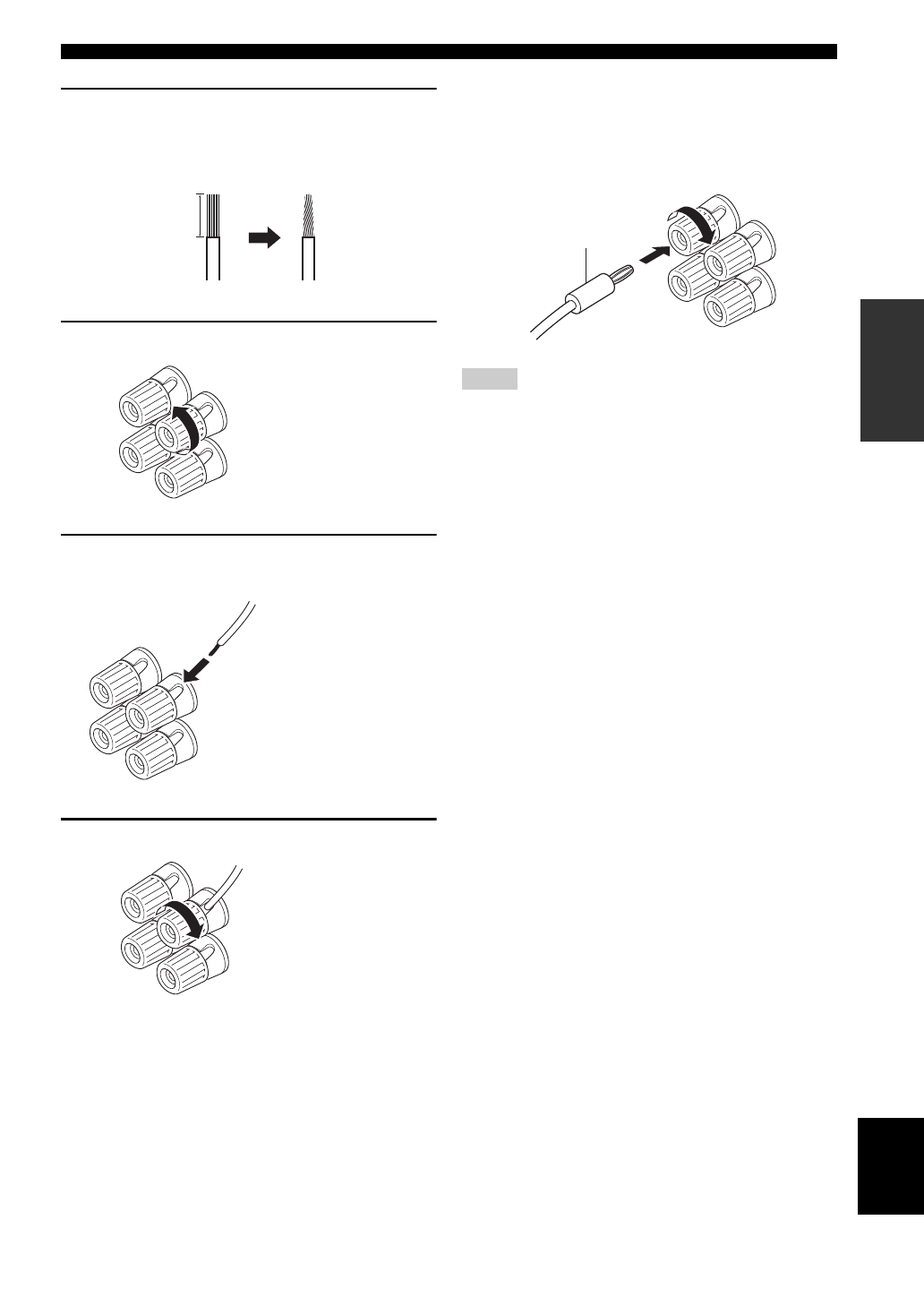

Remove approximately 10 mm (3/8 in) of
insulation from the end of each speaker
cable and twist the exposed wires of the
cable together to prevent short circuits.

2

Unscrew the knob.

3

Insert one bare wire into the hole in the side
of each terminal.

4

Tighten the knob to secure the wire.

■

Connecting the banana plug

(With the exception of Asia, Korea, U.K. and
Europe models)

First, tighten the knob and then insert the banana plug into
the end of the corresponding terminal.

• One or two speaker sets can be connected to this unit. If you use

only one speaker set, connect it to either the SPEAKERS A or B
terminals.

• Use speakers with the specified impedance shown on the rear

panel of this unit.

10 mm (3/8 in)

Red: positive (+)

Black: negative (–)

Red: positive (+)

Black: negative (–)

Red: positive (+)

Black: negative (–)

Notes

Banana plug
