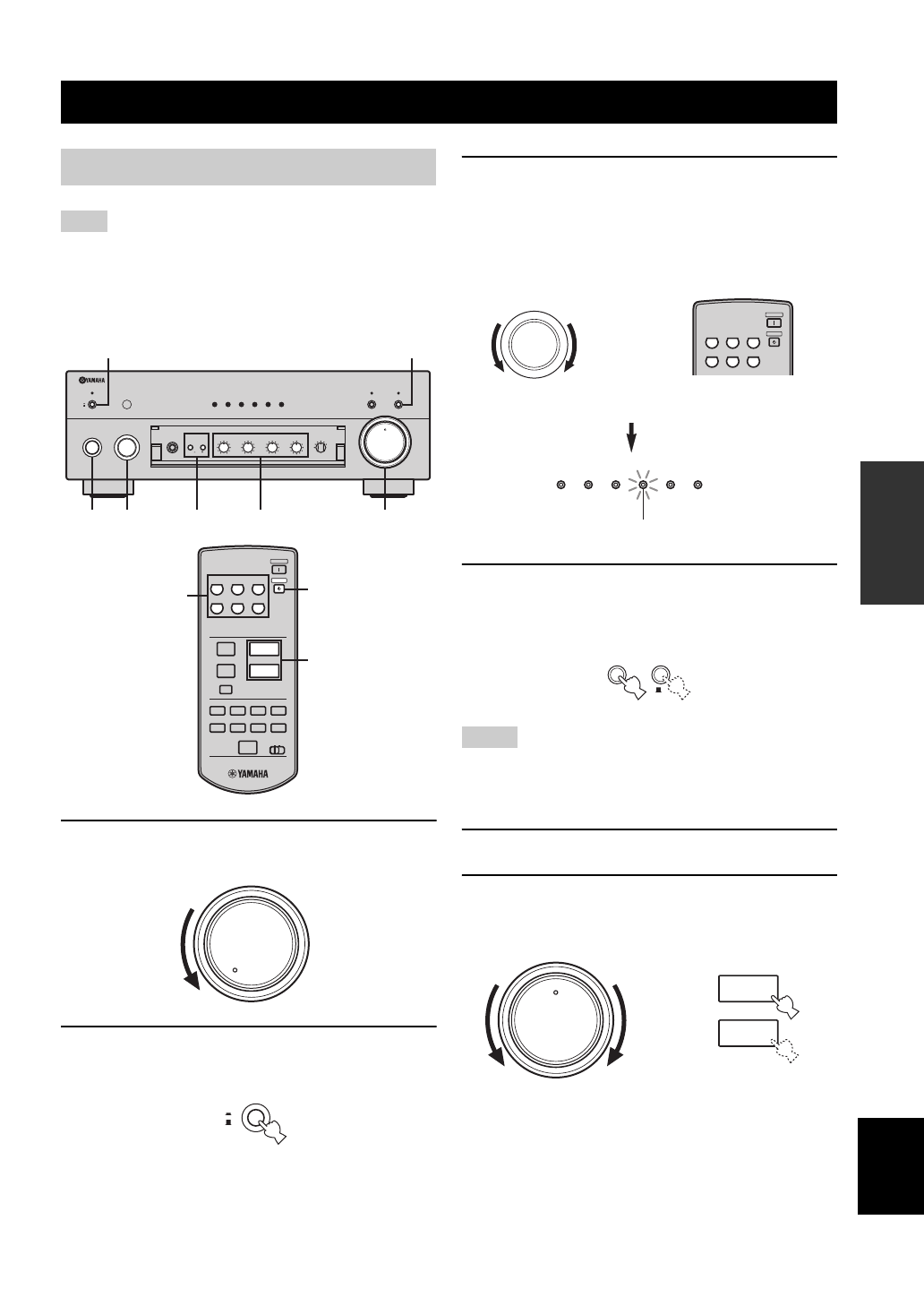

PLAYING AND RECORDING

11

English

OPE

R

A

T

IO

N

As for AX-397 only, if the TAPE MONITOR indicator on the
front panel lights up when you listen to a source, press TAPE
MONITOR on the front panel to turn off the TAPE MONITOR
function (the TAPE MONITOR indicator turns off as a result).

1

Set VOLUME on the front panel
counterclockwise to the extreme end.

2

Press POWER on the front panel inward to
the ON position.

3

Rotate the INPUT selector on the front panel
(or press one of the input selector buttons on
the remote control) to select the input source
you want to listen to.

The indicator of the selected input source lights up.

4

Press SPEAKERS A and/or B on the front
panel to select speakers A and/or B.

• Both SPEAKERS A and B can be selected.
• If you listen with headphones, press both switches to release

them outward to the OFF position.

5

Play the source.

6

Rotate VOLUME on the front panel (or press
VOLUME +/– on the remote control) to adjust
the sound output level.

PLAYING AND RECORDING

Playing a source

Note

0

12

12

2

8

4

∞

20

20

60

60

26

26

40

40

16

16

-dB

-dB

STANDBY

/ON

STANDBY

INPUT

PHONES

SPEAKERS

BASS

5

1

4

2

3

5

1

4

2

3

A

POWER

ON

OFF

ON

OFF

AUX

MD

TAPE

CD/DVD

TUNER

PHONO

PURE DIRECT

CD/DVD DIRECT AMP

B

+

–

TREBLE

5

1

4

2

3

5

1

4

2

3

+

–

BALANCE

5

1

4

2

3

5

1

4

2

3

TUNER

PHONO

TAPE

MD

AUX

R

L

LOUDNESS

REC OUT

VOLUME

7

–30dB

FLAT

CD/DVD

10

9

5

6

1

4

2

3

8

4

3

8

7

1,6

2

7

CD/DVD

PHONO

TUNER

POWER

STANDBY

MD

TAPE

AUX

+

–

u

d

DISPLAY

A/B

REC

DISC

DIR A

p

DIR B

A/B/C/D/E

PRESET

VOLUME

TAPE

CD

w

e

f

b

s

a

DISPLAY

8

6

3

0

12

12

2

8

4

∞

20

20

60

60

26

26

40

40

16

16

-dB

-dB

VOLUME

POWER

ON

OFF

Notes

INPUT

CD/DVD

PHONO

TUNER

POWER

STANDBY

MD

TAPE

AUX

AUX

MD

TAPE

CD/DVD

TUNER

PHONO

Front panel

Remote control

or

Lights up

SPEAKERS

A

ON

OFF

B

0

12

12

2

8

4

∞

20

20

60

60

26

26

40

40

16

16

-dB

-dB

VOLUME

+

–

VOLUME

Remote control

Front panel

or
