CONNECTIONS

■

Connecting the AC power supply cord

Plug the power supply cord into the AC wall outlet after
all other connections are complete.

■

AC OUTLET(S) (SWITCHED)

U.K. and Australia models ..................................... 1 outlet
Korea model .............................................................. None
Other models ........................................................ 3 outlets
Use these outlets to connect the power cords from your
other components to this unit. The power to the AC
OUTLET(S) is controlled by POWER or STANDBY/ON
on the front panel of this unit (or on the remote control).
The outlet(s) supply power to any connected component
whenever the power of this unit is turned on. For
information on the maximum power (total power
consumption of components), see “SPECIFICATIONS”
on page 18.

■

VOLTAGE SELECTOR
(Asia and General models only)

The VOLTAGE SELECTOR on the rear panel of this unit
must be set for your local main voltage BEFORE plugging
the power supply cord into the AC wall outlet.
Voltages are as follows:
Asia model .......................... AC 220/230–240 V, 50/60 Hz
General model ...... AC 110/120/220/230–240 V, 50/60 Hz

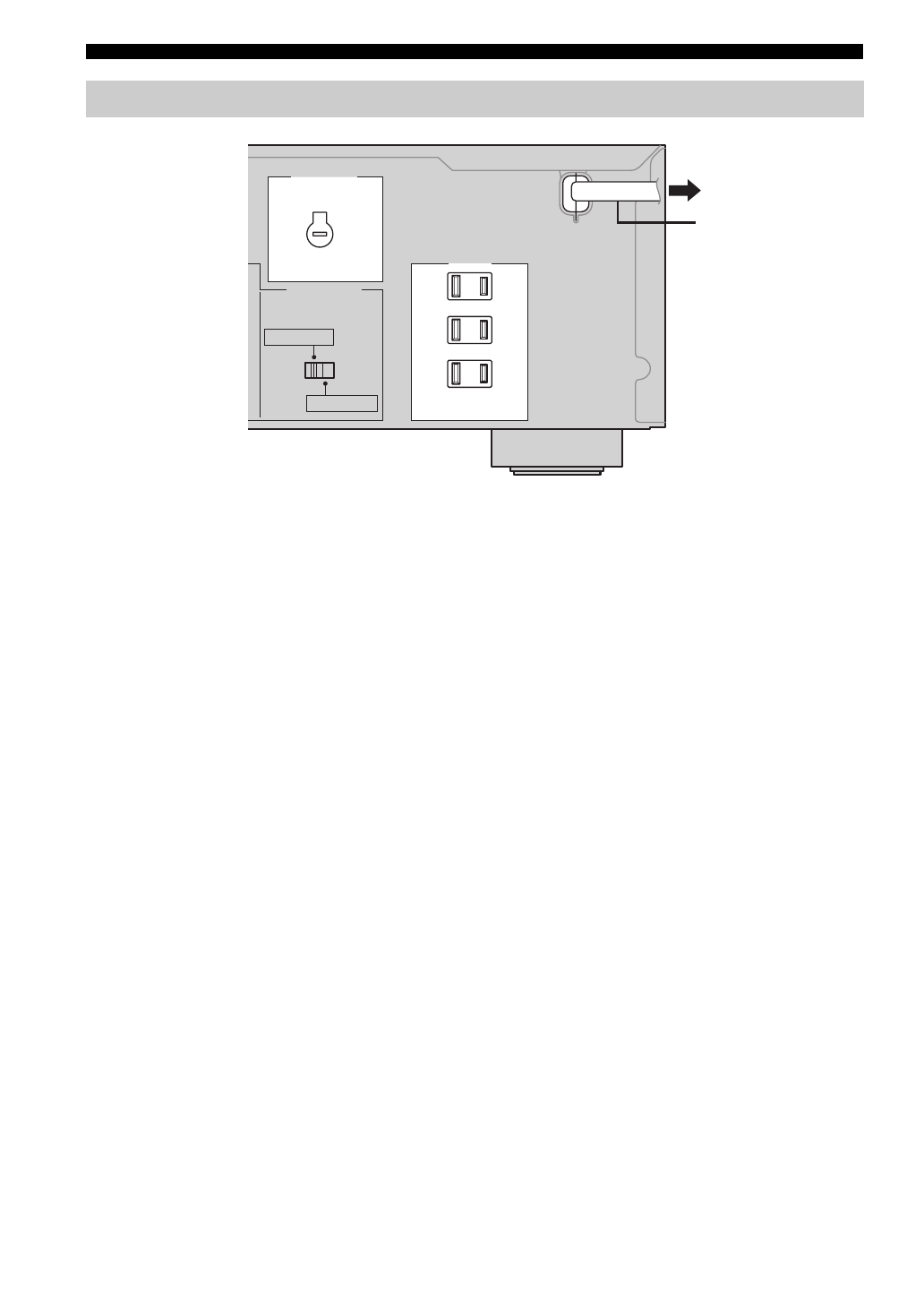

Connecting the power supply cord

AC OUTLETS

VOLTAGE SELECTOR

IMPEDANCE SELECTOR

SWITCHED

100W MAX. TOTAL

A OR B: 4

Ω

MIN / SPEAKER

A+B: 8

Ω

MIN / SPEAKER

A OR B:   6

Ω

MIN / SPEAKER

A+B: 12

Ω

MIN / SPEAKER

(General model)

To an AC wall outlet

AC power supply cord
