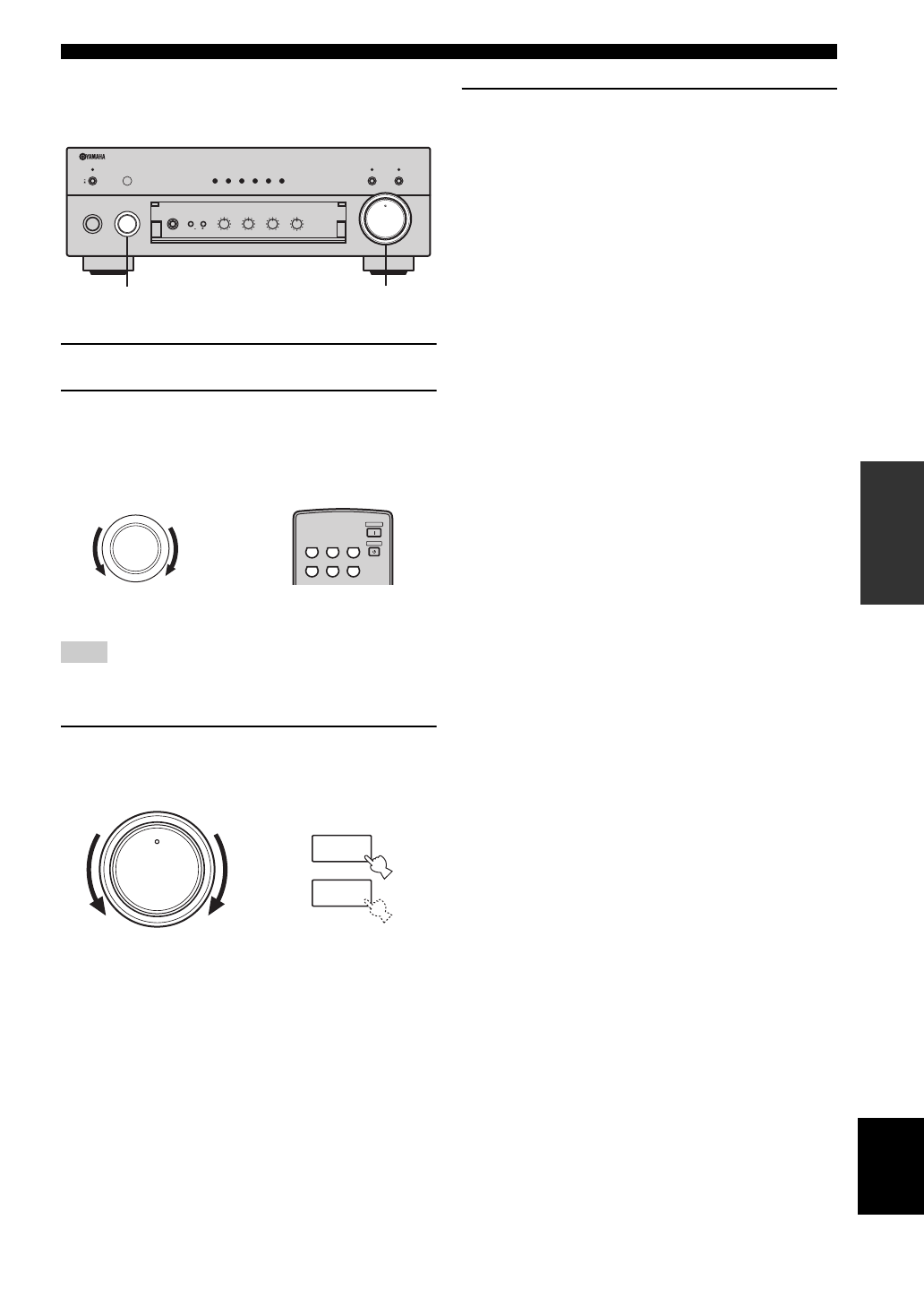

PLAYING AND RECORDING

OPE

R

A

T

IO

N

English

■

AX-397

1

Play the source.

2

Rotate the INPUT selector on the front panel
(or press one of the input selector buttons on
the remote control) to select the input source
you want to listen to.

You cannot select any input source while the TAPE MONITOR
indicator on the front panel lights up.

3

Rotate VOLUME on the front panel (or press
VOLUME +/– on the remote control) to adjust
the sound output level.

4

Begin recording on the tape deck or the MD
recorder.

y

If the 3-head tape deck is used for recording, you can monitor the
sound of recording by pressing TAPE MONITOR.
