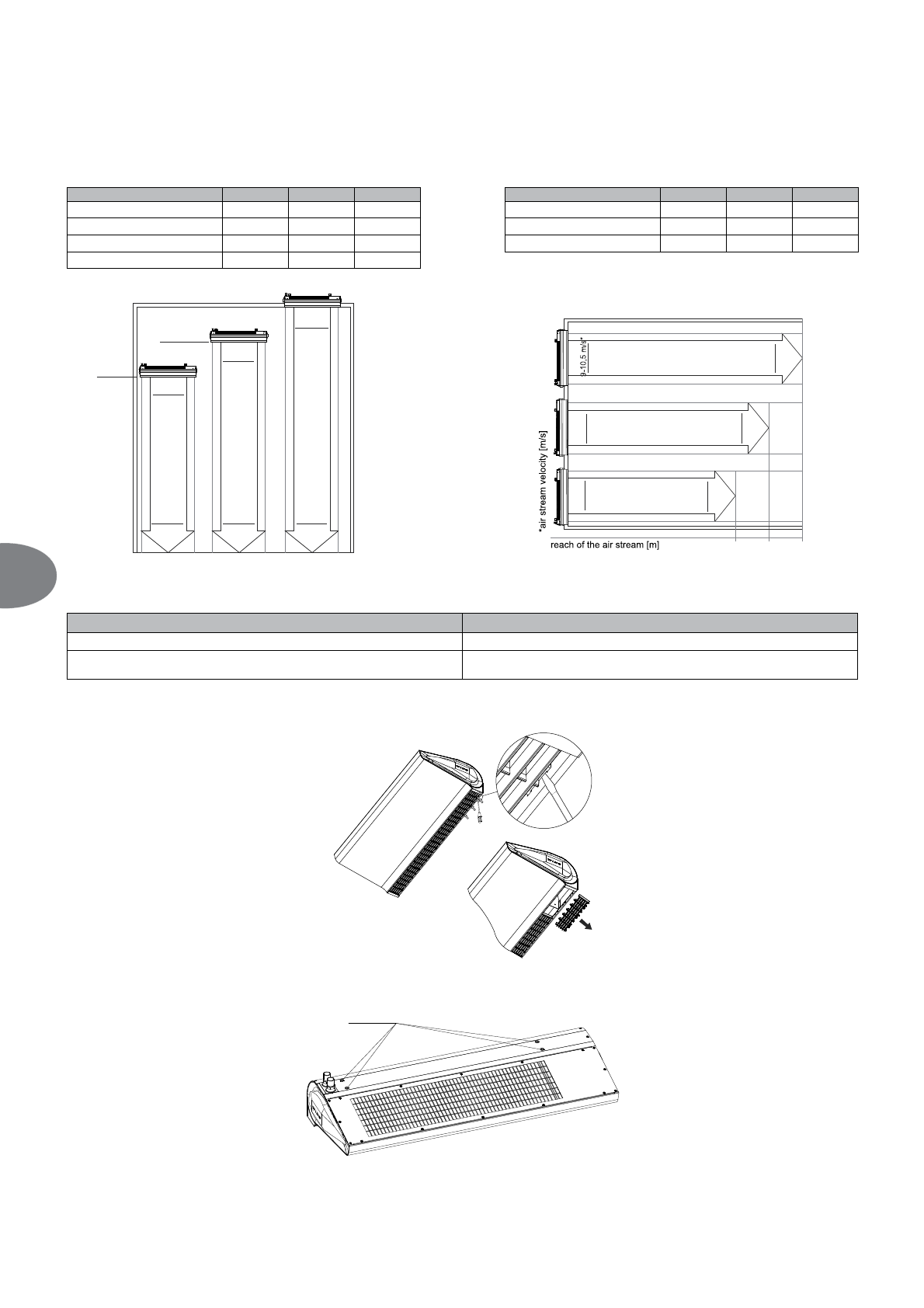

The range of the air jet - assembly height
IMPORTANT!
The heating output should be adjusted to the temperature inside the room, as well as the strength and direction of the wind outside. The primary criterion for the regulation of the
heating power is the temperature inside the room, near the door. Should a room thermostat be used, WING activates the heating mode, depending on the temperature settings.
IMPORTANT! Please consider additional factors that affect device operation.
Factors that have a negative effect on curtain operation
Factors that have a positive effect on curtain operation
doors or windows that are constantly open in the room, thus creating a draft
presence of awning, roofs etc. on the outer side of the door
constant and open access to staircases, available through the room, the chimney draft
effect
use of revolving doors
3.1. ASSEMBLY/ DISASSEMBLY OF SIDE COVERS
In order to remove the outlet grid you should carefully level the grid catches located with the use of a screwdriver and pull it away. Having installed the device and connected it to the electric
supply put the grid back by clicking it on the catches.
3.2. ASSEMBLY OF DEVICE
For directly instalation use the threaded sleeves (M8) in the top of decice.
M8
IMPORTANT!
The minimum distance between the unit and the ceiling should be 0.1m.
fan speed
III
II
I
height of assembly [m]
H3
H2
H1
WING W100, W150, W200
3.7
2.9
2.3
WING E100, E150, E200
3.7
2.9
2.3
WING C100, C150, C200
4.0
2.9
2.3
fan speed
III
II
I
width of the door [m]
H3
H2
H1
WING W100, W150, W200
3.7
2.9
2.3
WING C100, C150, C200
4.0
2.9
2.3
- horizontal installation
- vertical installation
5-
6,
5
m/
s
*
2,
2
m/
s
*
2,2 m/s*
2,
2 m/s
*
7-8 m/s*
H1
H2
H3
5-6,5 m/s*
7-8 m/s*
2,2 m/s* 2,2 m/s* 2,2 m/s*
9-10,5 m/s*
H1
H2
H3
height of assembly [m]
*air stream velocity [m/s]
