English

40

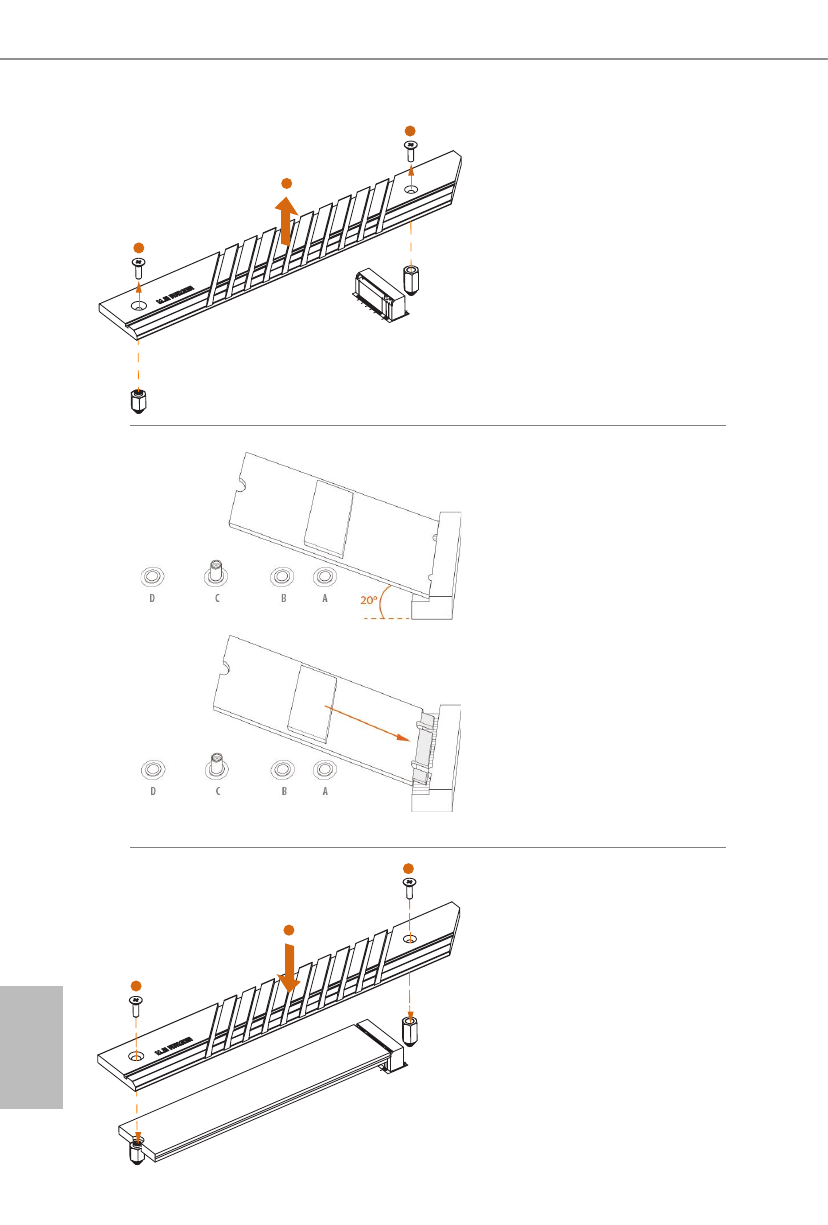

Step 3

Before installing a M.2 (NGFF) SSD
module, please loosen the screws to
remove the M.2 heatsink.
*Please remove the protective films
on the  bottom side of the M.2
heatsink before you install a M.2
SSD module.

Step 4

Prepare the M.2 standoff that comes
with the package. Then hand tighten
the standoff into the desired nut
location on the motherboard. Align
and gently insert the M.2 (NGFF)
SSD module into the M.2 slot. Please
be aware that the M.2 (NGFF) SSD
module only fits in one orientation.
Then tighten the screw that comes
with the package to secure the
modules into place.

Step 5

Tighten the screw with a screwdriver
to secure the module and M.2
heatsink into place. Please do
not overtighten the screw as this
might damage the module and M.2
heatsink.

2

1

1

1

2

2
