English

36

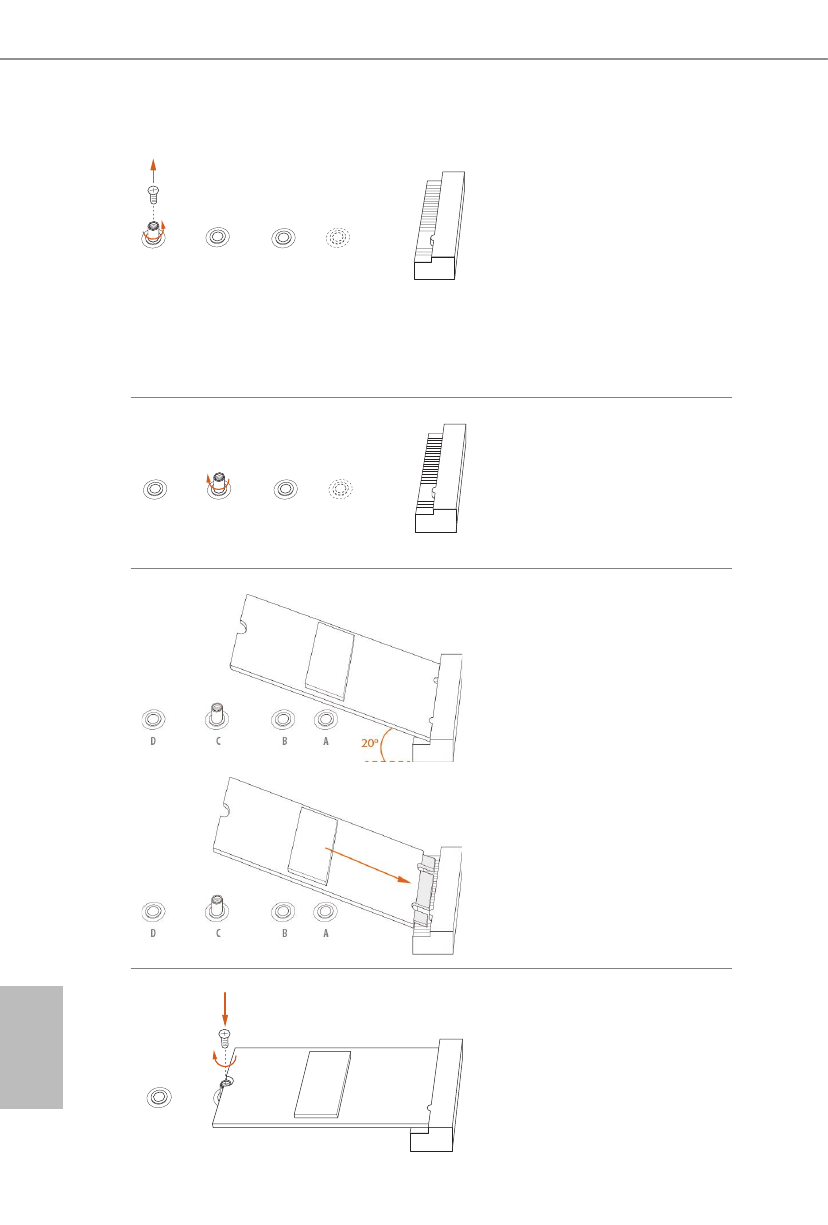

Step 3

Move the standoff based on the
module type and length.
The standoff is placed at the nut
location D by default. Skip Step 3 and
4 and go straight to Step

5

if you are

going to use the default nut.
Otherwise, release the standoff by
hand.

Step 4

Peel off the yellow protective film on
the nut to be used. Hand tighten the
standoff into the desired nut location
on the motherboard.

Step 5

Gently insert the M.2 (NGFF) SSD
module into the M.2 slot. Please
be aware that the M.2 (NGFF) SSD
module only fits in one orientation.

Step 6

Tighten the screw with a screwdriver
to secure the module into place.
Please do not overtighten the screw as
this might damage the module.

B

C

D

E

A

B

C

D

E

A

NUT1

NUT2

D

E
