English

30

2.9  M.2 WiFi/BT PCIe WiFi Module and Intel® CNVi (Integrated

          WiFi/BT) Installation Guide (For Z690 Steel Legend/D5)

The M.2, also known as the Next Generation Form Factor (NGFF), is a small size and
versatile card edge connector that aims to replace mPCIe and mSATA. The M.2 Socket (Key
E) supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVi (Integrated WiFi/BT).
* The M.2 socket does not support SATA M.2 SSDs.

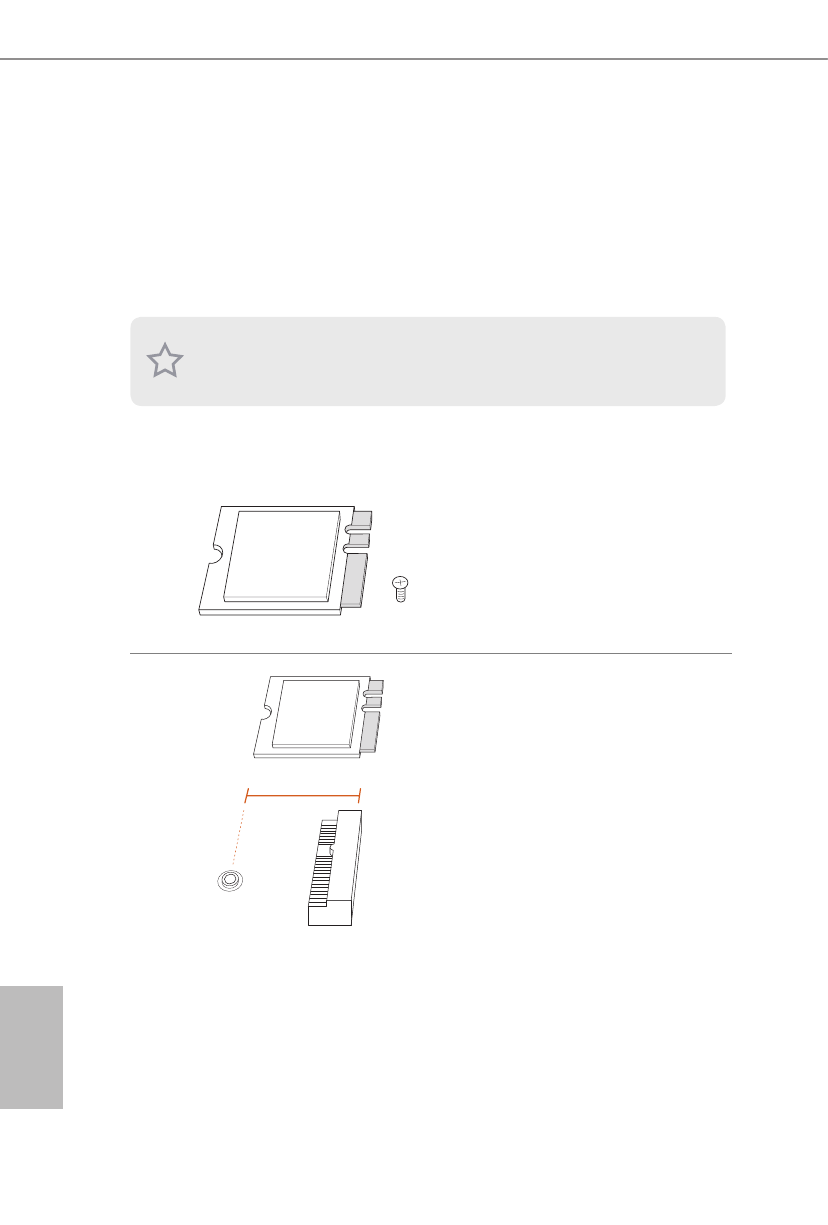

Installing the WiFi/BT module or Intel® CNVi (Integrated WiFi/BT)

Step 1

Prepare a type 2230 WiFi/BT
PCIe WiFi module or Intel® CNVi
(Integrated WiFi/BT) and the screw.

PCB Length: 3cm

Module Type: Type2230

A

Step 2

Find the nut location to be used.

Before you install Intel® Integrated Connectivity (CNVi) module, be sure to turn off
the AC power.
