42

BIOS Setup

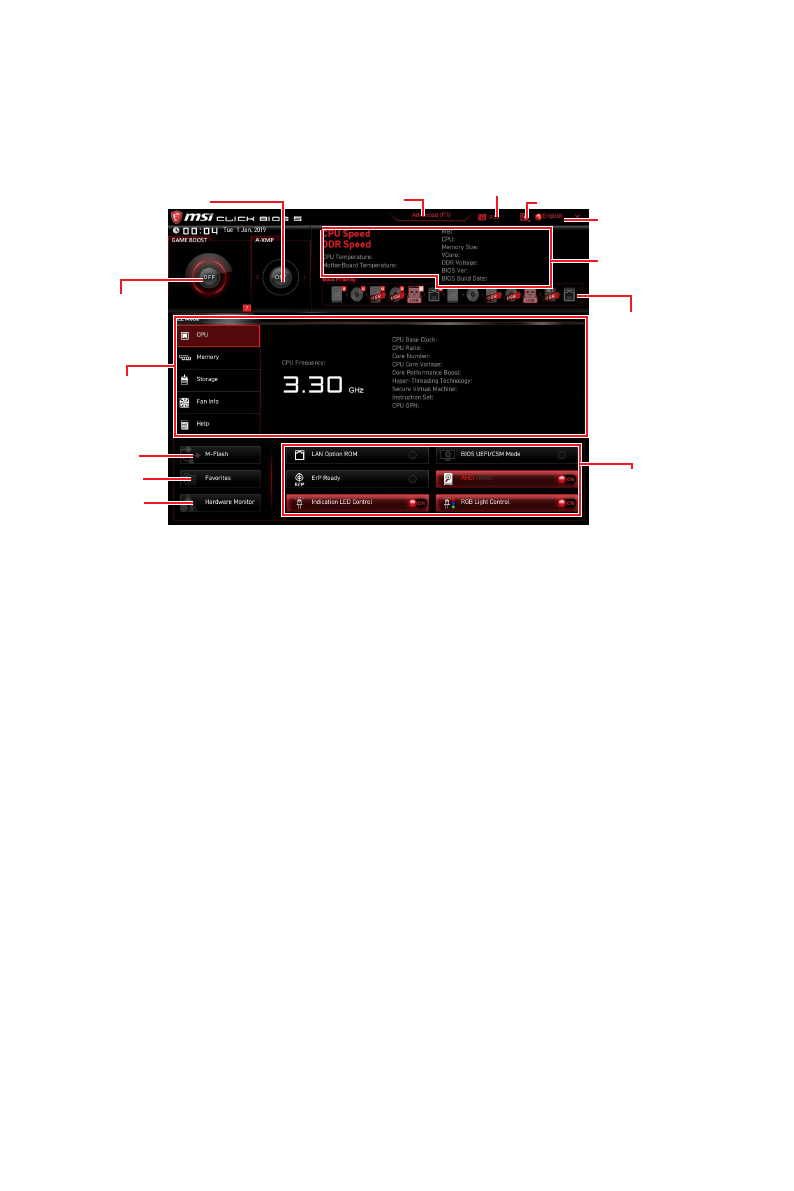

EZ Mode

At EZ mode, it provides the basic system information and allows you to configure the

basic setting. To configure the advanced BIOS settings, please enter the Advanced

Mode by pressing the

Setup Mode switch

or

F7

 function key.

A-XMP switch

Information

display

System

information

Boot device

priority bar

Function

buttons

Language

GAME BOOST

switch

Search

Screenshot

Setup Mode switch

M-Flash

Hardware

Monitor

Favorites

∙

GAME BOOST switch

- click on it to toggle the

GAME BOOST

 for OC.

⚠

Important

Please don’t make any changes in OC menu and don’t load defaults to keep the

optimal performance and system stability after activating the

GAME BOOST

 function.

∙

A-XMP switch (optional)

- click on the inner circle to enable/ disable the A-XMP.

Switch the outer circle to select the memory profile if any. This switch will only be

available if the installed processor and memory modules support A-XMP function.

∙

Setup Mode switch

 - press this tab or the

F7

 key to switch between Advanced mode

and EZ mode.

∙

Screenshot

 - click on this tab or the

F12

 key to take a screenshot and save it to USB

flash drive (FAT/ FAT32 format only).

∙

Search

 - click on this tab or the

Ctrl+F

 keys to enter the search page. It allows you

to search by BIOS item name. Move the mouse over a blank space and right click the

mouse to exit the search page.

⚠

Important

In search page, only the F6, F10 and F12 function keys are available.

∙

Language

 - allows you to select language of BIOS setup.

∙

System information

 - shows the CPU/ DDR speed, CPU/ MB temperature, MB/ CPU

type, memory size, CPU/ DDR voltage, BIOS version and build date.

∙

Boot device priority bar

 - you can move the device icons to change the boot priority.

The boot priority from high to low is left to right.

∙

Information display

- click on the

CPU

,

Memory

,

Storage

,

Fan Info

 and

Help

 buttons

on left side to display related information.
