21

Overview of Components

M2_1~3: M.2 Slots (Key M)

2

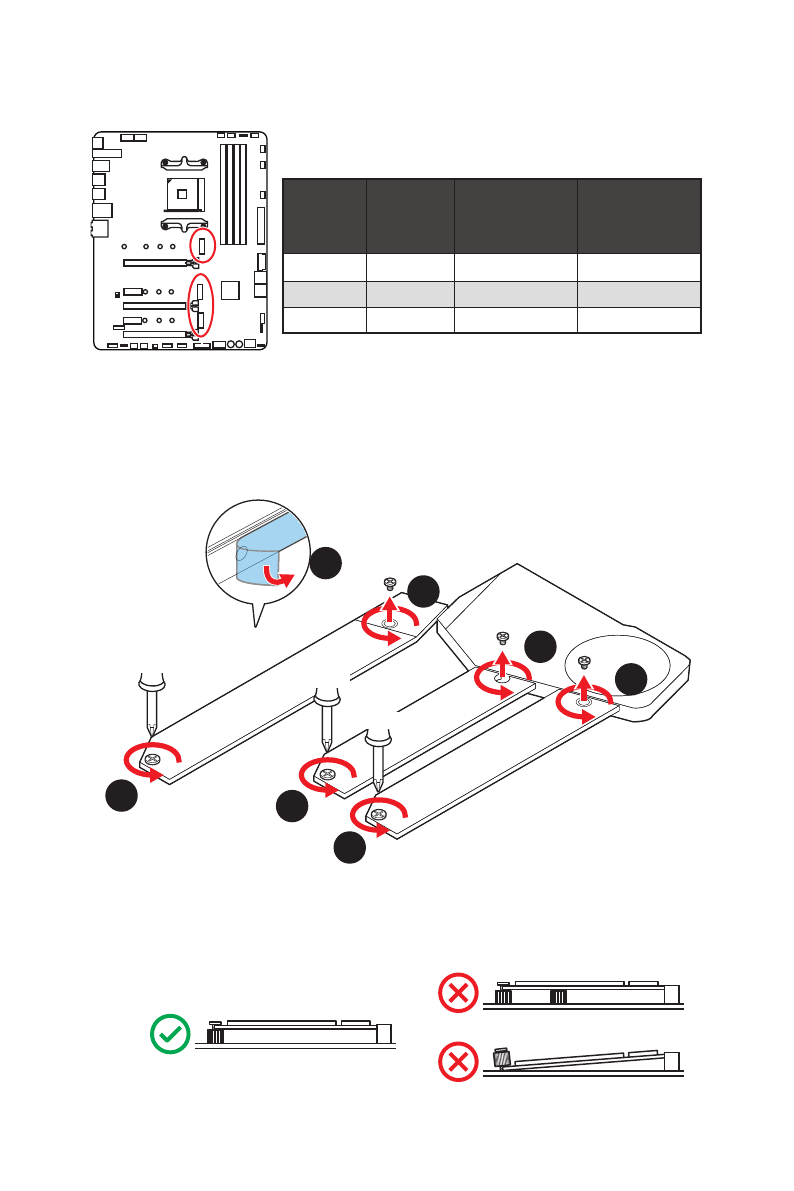

Installing M.2 module

1.

Loosen the screws of M.2 SHIELD FROZR heatsink.

2.

Remove the M.2 SHIELD FROZR heatsink and remove the protective films from

the thermal pads.

1

1

1

1

1

1

M2_1
M2_2

M2_3

3.

Move and fasten the M.2 standoff to the appropriate position for your M.2 SSD.

Please make sure there is no M.2 standoff underneath the M.2 SSD to avoid

damage to it.

The following table describes the relationship between the

M.2 slots and the PCIe bandwidth of the processors.

Slots

3rd Gen AMD

Ryzen™

2nd Gen AMD

Ryzen™

Ryzen™ with Radeon™

Vega Graphics and 2nd

Gen AMD Ryzen™ with

Radeon™ Graphics

M2_1 (CPU)

PCIe 4.0 x4

PCIe 3.0 x4

PCIe 3.0 x4

M2_2 (PCH)

PCIe 4.0 x4

PCIe 3.0 x4

PCIe 3.0 x4

M2_3 (PCH)

PCIe 4.0 x4

PCIe 3.0 x4

PCIe 3.0 x4

30º

30º

30º

30º
