VALVE N1
N
L
VALVE N1
N
L
VALVE N1
N
L
3 way valve
Relay (220-240V, 10A)
Chiller

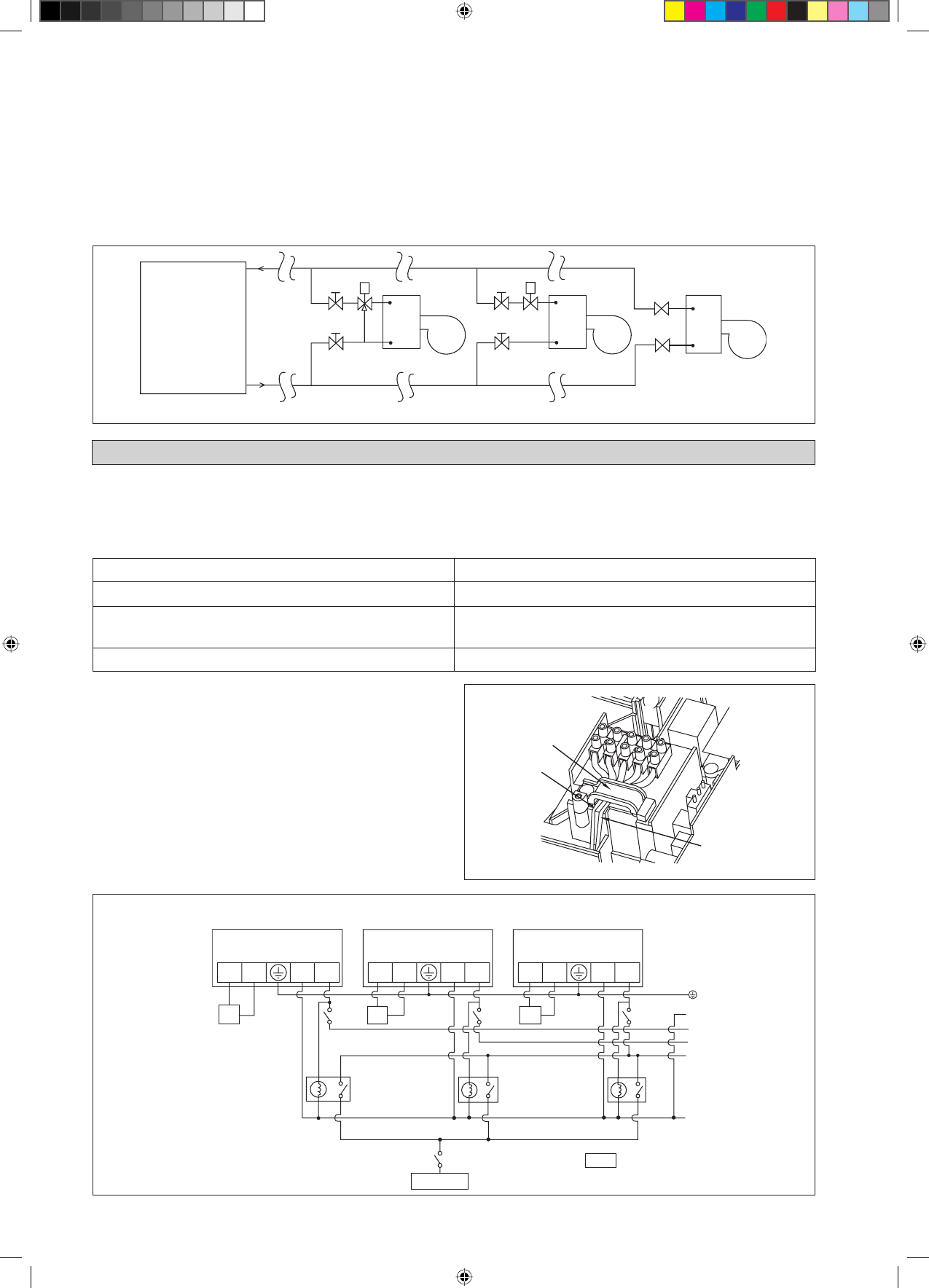

Water Piping Connection
The indoor unit is equipped with water outlet and inlet threaded connection. There is an air-vent for air purging that is
fi
tted at
the outlet water header.
3 ways valve is required for cycling off or bypass the chilled water.
Black steel pipe, polyuthrene pipe, PVC pipe and copper tube are recommended in
fi
eld installation.
All types of piping and connection must be insulated by polyurethane (ARMAFLEX type or equivalent) to avoid condensation.
Do not use contaminated or damaged pipe and
fi
tting for installation.
Some main
fi
tting components are needed in the system to enhance the capacity and ease of service, such as gate valve, balancing
valve, 2 ways or 3 ways valve,
fi
lter, strainer, etc.
Gate Valve
Three Way Valve
Gate Valve
Two Way Valve
Gate Valve
Chiller
Gate Valve
Good Controlling
Bad Controlling
Gate Valve
FCU
FCU
FCU
Worst Controlling
Gate Valve
ELECTRICAL WIRING CONNECTION
Model
FWT02/03/04/05/06
Voltage range**
220V – 240V/1Ph/50Hz +
!
Power supply cable size*
mm
2
Number of conductors
1.5
3
Recommended time delay fuse
A
2
All wires must be
fi
rmly connected.
All wires must not touch the water piping, or any moving
parts of the fan motor.
The connecting wires to the indoor unit must be clamped
on the wire clamps as shown in the
fi
gure.
The power supply cord must be equivalent to H07RN-F
which is the minimum requirement, and to be used in
protective tube.
•
•
•
•
Wire Clamp
Interconnection
Cable
IMPORTANT :
*
These values are for information only, they should be checked and selected to comply with the local and/or
national codes and regulations. They are also subjected to the type of installation and size of conductors.
** The appropriate voltage range should be checked with data label on the unit.
There must be an all pole disconnection in the supply mains with a contact separation of at least 3mm.
Power Supply Cable
FWT02/03/04/05/06
FCU3
3wv
x1
FCU2
3wv
x2
FCU1
3wv
x3
N
T
S
R
x1x2x3
3WV
