1-5
English

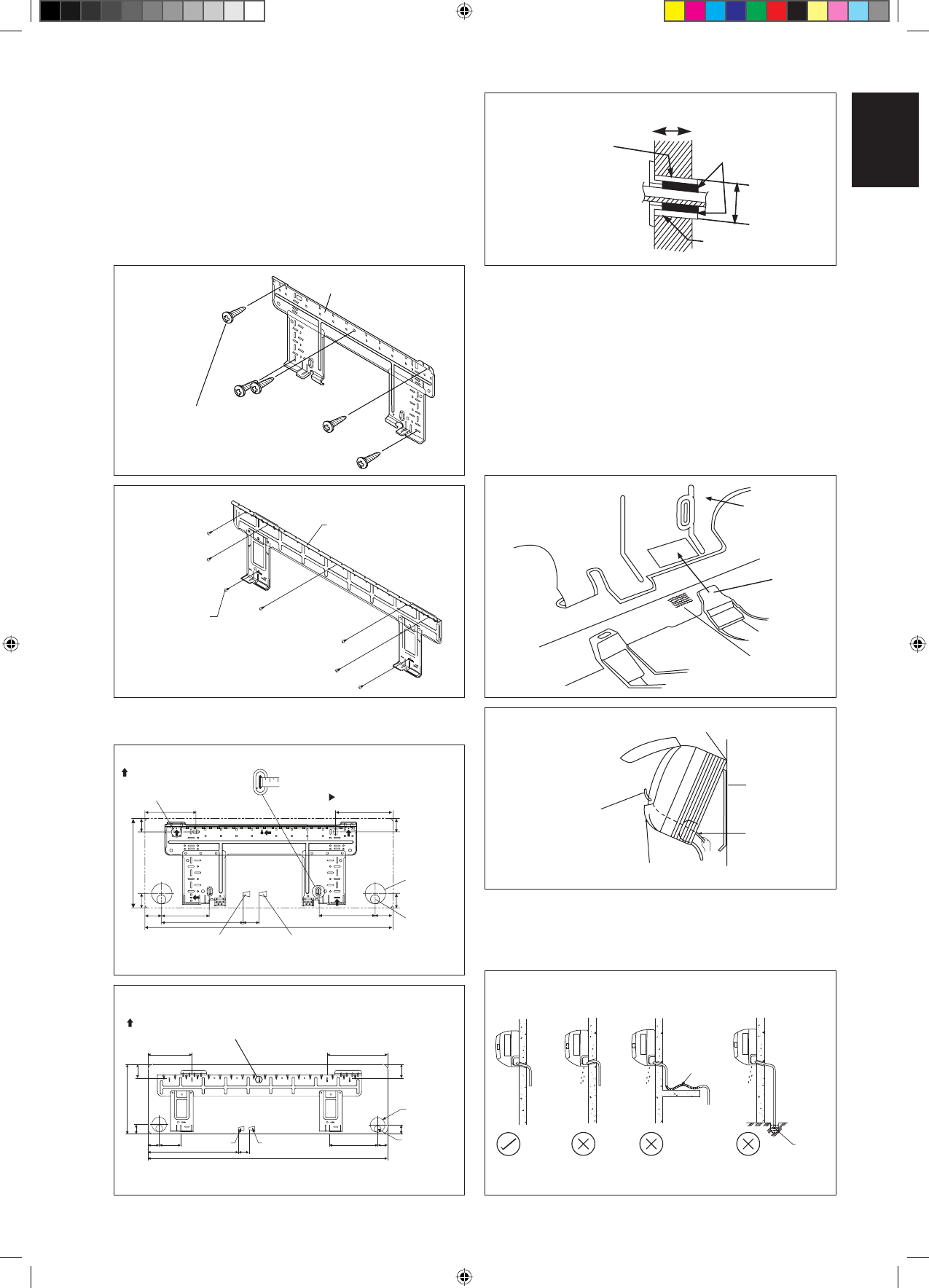

Mounting Installation Plate
Ensure that the wall is strong enough to withstand the weight
of the unit. Otherwise, it is necessary to reinforce the wall
with plates, beams or pillars.
Use the level gauge for horizontal mounting, and fix it with
5 suitable screws for FWT02/03/04 and 7 suitable screws for
FWT05/06.
In case the rear piping draws out, drill a hole 65mm in
diameter with a cone drill, slightly lower on the outside wall
(see figure).
Inside
Caulking
Outside
Wall embedded pipe
(Field supply)
Wall hole cover
(Field supply)
Wall embedded pipe
(Field supply)
Ø 65
Hole with cone drill
Mounting plate
Mounting plate
fi
xing screw
FWT02/03/04
Mount The Unit Onto The Installation Plate
Hook the indoor unit onto the upper portion of the installation
plate (Engage the two hooks at the rear top of the indoor unit
with the upper edge of the installation plate). Ensure that the
hooks are properly seated on the installation plate by moving
it to the left and right.
How To Attach The Indoor Unit
Hook the claws of the bottom frame to the mounting plate.
How To Remove The Indoor Unit
Push up the marked area (at the lower part of the front grille)
to release the claws.
Mounting plate
Clip
Mark (rear side)
Bottom frame
Front grille
Mounting plate
Mounting plate
fixing screw
FWT05/06
Recommended Mounting Plate Retention Spots And
Dimensions
Mounting plate
Interconnecting
wires
Hang indoor unit’s hook here.
Wire guide
W h e n s t r i p p i n g t h e
ends of interconnecting
wires in advance, bind
right ends of wires with
insulating tape.
Drain hose
position
Recommended mounting
plate retention spots
(5 spots in all)
Use tape measure as shown.
Position the end of a tape
measure at
Water outlet
Water inlet
166
184
181.7
55.5
54.5
153.8
263
51.9
800
45.9
42.2
288
42.2
45.9
All dimensions are in mm
FWT02/03/04
Through the
wall hole
Ø 65mm
Water Drainage Piping
The indoor drain pipe must be in a downward gradient for
smooth drainage. Avoid situations that are likely to cause
water to leak.
End dipped
into water
Water
leaking
Water
leaking
Water
leaking
Wrong
Wrong
Wrong
Drain
Water Drainage
Water
Retention
Correct
Recommended mounting plate
retention spots (7 spots in all)
190
173
61
310
61
Water outlet
Water inlet
48
45
580
1065
219
40
40
91
45
FWT05/06
All dimensions are in mm
Drain hose
position
Through the
wall hole
Ø 65mm
