 English |

19

Bosch Power Tools

1 609 92A 2C7 | (13.10.16)

Identify additional safety measures to protect the operator
from the effects of vibration such as: maintain the tool and the
accessories, keep the hands warm, organisation of work pat-
terns.

Assembly

Mounting the Protective Devices



Before any work on the machine itself, pull the mains
plug.

Note:

After breakage of the grinding disc during operation or

damage to the holding fixtures on the protection guard/power
tool, the machine must promptly be sent to an after-sales ser-
vice agent for maintenance. For addresses, see section “Af-
ter-sales Service and Application Service”.

Protection Guard for Grinding

Place the protection guard

5

 on the spindle collar. Adjust the

position of the protection guard

5

 to the requirements of the

operation and lock the protection guard

5

 with the locking

screw

6

.



Adjust the protection guard 5 in such a manner that
sparking is prevented in the direction of the operator.

Protection Guard for Cutting



For cutting with bonded abrasives, always use the pro-
tection guard for cutting 13.



Provide for sufficient dust extraction when cutting
stone.

The protection guard for cutting

13

 is mounted in the same

manner as the protection guard for grinding

5

.

Cutting Guide with Dust Extraction Protection Guard

The cutting guide with dust extraction protection guard

24

 is

mounted in the same manner as the protection guard for
grinding

5

.

Auxiliary Handle



Operate your machine only with the auxiliary handle 3.

Screw the auxiliary handle

3

 on the right or left of the machine

head depending on the working method.

Hand Guard



For operations with the rubber sanding plate 20 or with
the cup brush/wheel brush/flap disc, always mount the
hand guard 18.

The hand guard

18

 is fastened with the auxiliary handle

3

.

Mounting the Grinding Tools



Before any work on the machine itself, pull the mains
plug.



Do not touch grinding and cutting discs before they
have cooled down.

The discs can become very hot while

working.

Clean the grinder spindle

4

 and all parts to be mounted.

For clamping and loosening the grinding tools, lock the grind-
er spindle with the spindle lock button

1

.



Actuate the spindle lock button only when the grinder
spindle is at a standstill.

Otherwise, the machine may be-

come damaged.

Grinding/Cutting Disc

Pay attention to the dimensions of the grinding tools. The
mounting hole diameter must fit the mounting flange without
play. Do not use reducers or adapters.

When using diamond cutting discs, pay attention that the di-
rection-of-rotation arrow on the diamond cutting disc and the
direction of rotation of the machine (see direction-of-rotation
arrow on the machine head) agree.

See graphics page for the mounting sequence.

To fasten the grinding/cutting disc, screw on the clamping nut

9

 and tighten with the two-pin spanner; see Section “Quick-

clamping Nut ”.



After mounting the grinding tool and before switching
on, check that the grinding tool is correctly mounted
and that it can turn freely. Make sure that the grinding
tool does not graze against the protection guard or oth-
er parts.

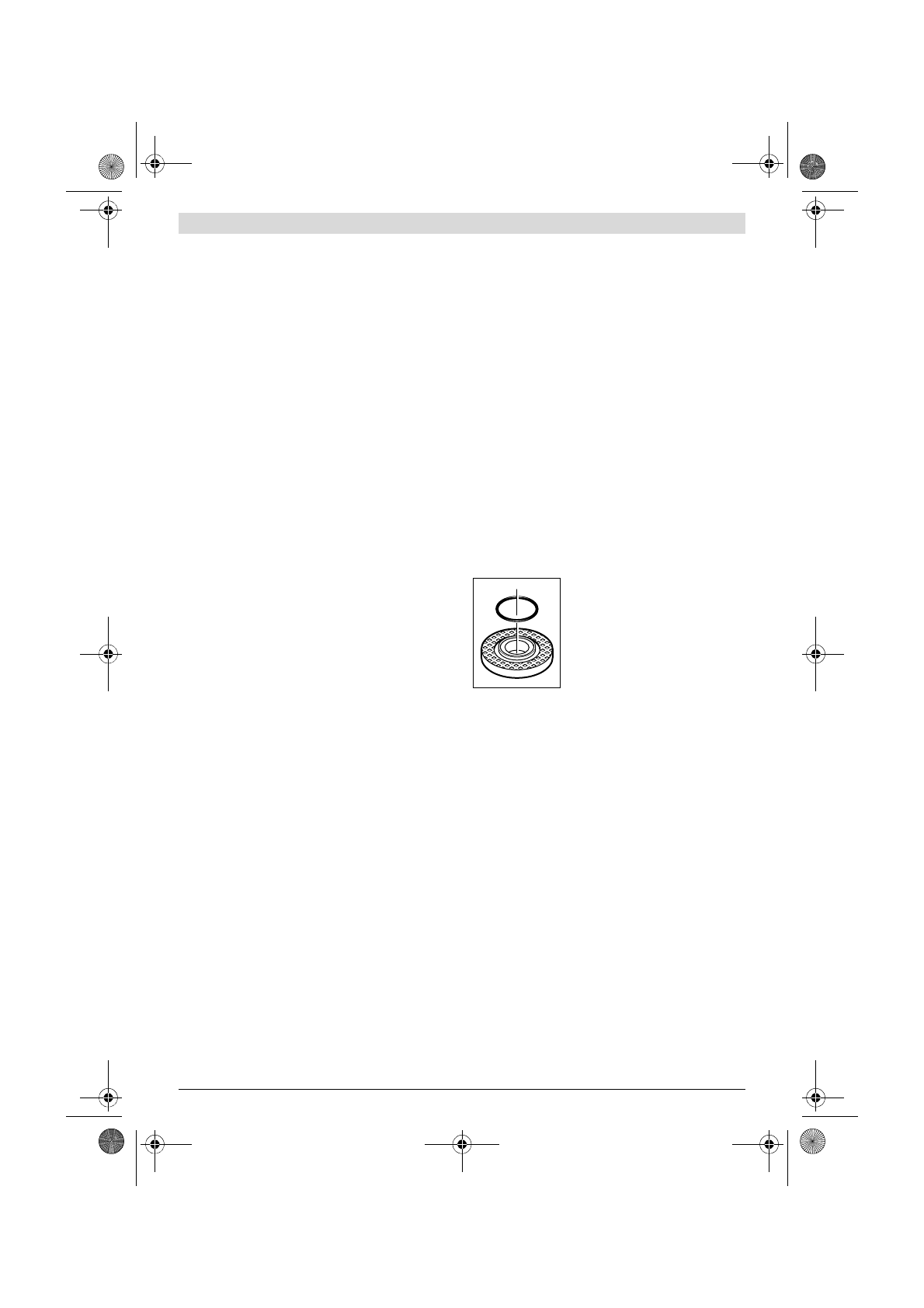

A plastic part (O-ring) is fitted around
the centring collar of mounting flange

7

.

If the O-ring is missing or damaged,

the mounting flange

7

 must be replaced

before resuming operation.

Flap Disc



For operations with the flap disc, always mount the
hand guard 18.

Rubber Sanding Plate



For operations with the rubber sanding plate 20, al-
ways mount the hand guard 18.

See graphics page for the mounting sequence.

Before mounting the rubber sanding plate

20

, put the 2 spac-

er discs

19

 onto the grinder spindle

4

.

Screw on the round nut

22

 and tighten with the two-pin span-

ner.

Cup Brush/Disc Brush



For operations with the cup brush/wheel brush, always
mount the hand guard 18.

See graphics page for the mounting sequence.

The cup brush/disc brush must be able to be screwed onto
the grinder spindle until it rests firmly against the grinder
spindle flange at the end of the grinder spindle threads. Tight-
en the cup brush/disc brush with an open-end spanner.
