2.12  ASRock Polychrome SYNC

ASRock Polychrome SYNC is a lighting control utility specifically designed for unique indi-
viduals with sophisticated tastes to build their own stylish colorful lighting system. Simply by
connecting the LED strip, you can customize various lighting schemes and patterns, including
Static, Breathing, Strobe, Cycling, Music, Wave and more.

Connecting the LED Strip

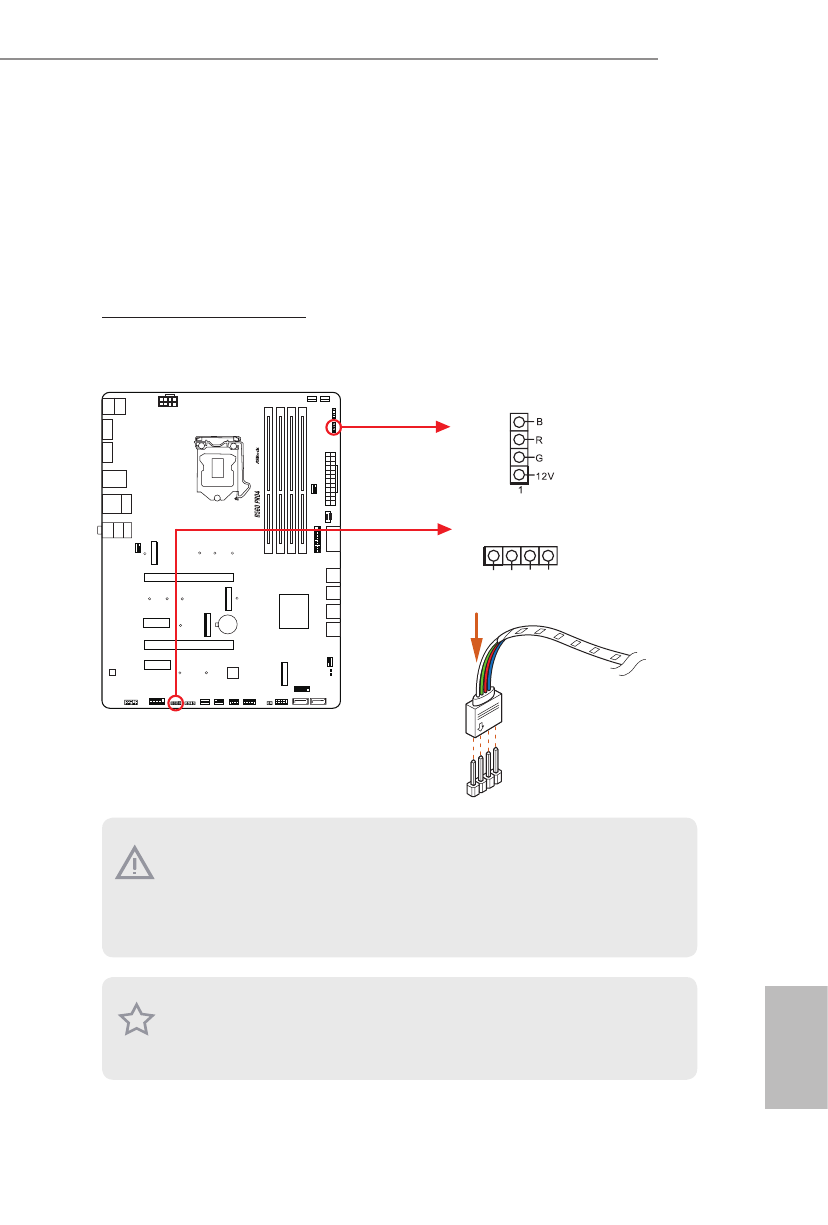

Connect your RGB LED strips to the

RGB LED Headers (RGB_LED1 / RGB_LED2)

 on the

motherboard.

1.  Never install the RGB LED cable in the wrong orientation; otherwise, the cable

may be damaged.

2.  Before installing or removing your RGB LED cable, please power off your system

and unplug the power cord from the power supply. Failure to do so may cause dam-
ages to motherboard components.

1.  Please note that the RGB LED strips do not come with the package.
2.  The RGB LED header supports standard 5050 RGB LED strip (12V/G/R/B), with a

maximum power rating of 3A (12V) and length within 2 meters.

12V

    G

    R

     B

1

12V G R B

1

RGB_LED2

RGB_LED1
