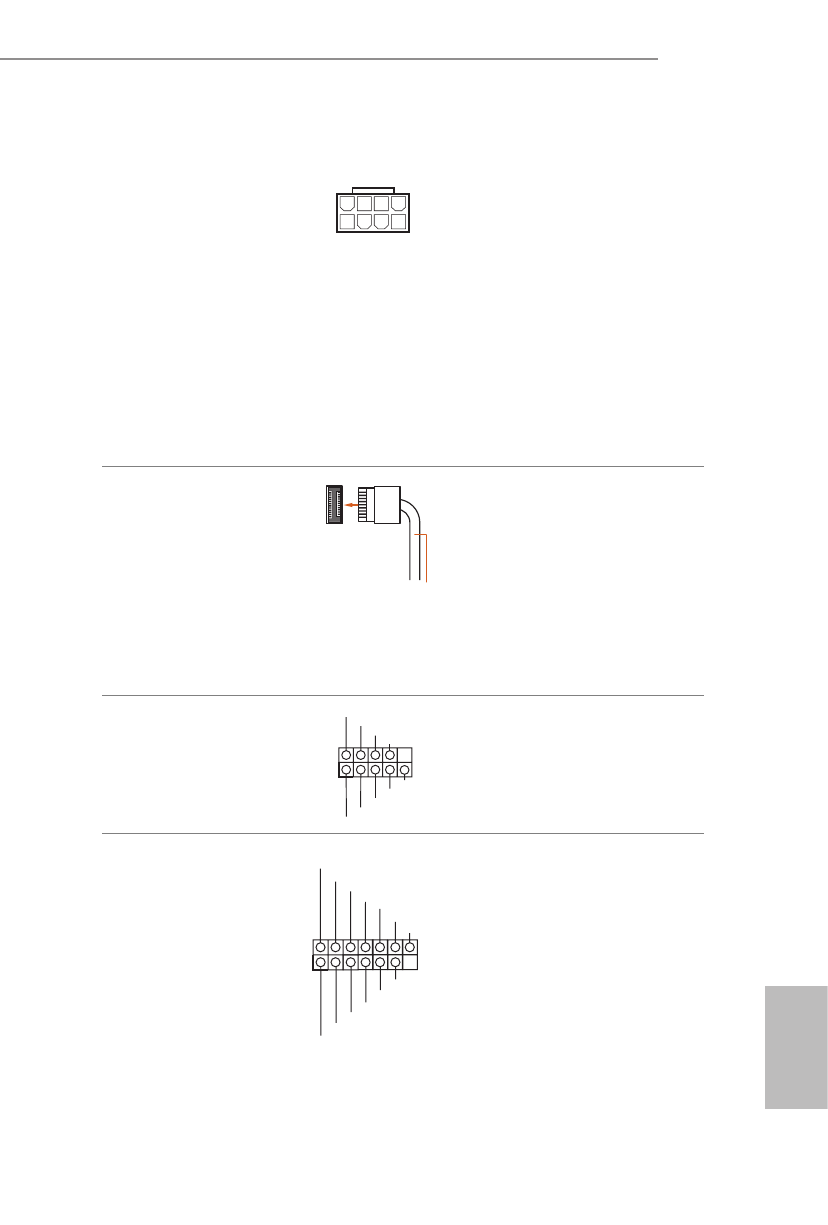

ATX 12V Power
Connector
(8-pin ATX12V1)
(see p.1, No. 1)

This motherboard provides
an 8-pin ATX 12V power
connector. To use a 4-pin
ATX power supply, please
plug it along Pin 1 and Pin
5.

*Warning: Please make
sure that the power cable
connected is for the CPU
and not the graphics card.
Do not plug the PCIe pow-
er cable to this connector.

Front Panel Type C USB
3.2 Gen1 Header
(20-pin USB31_TC_1)
(see p.1, No. 10)

USB Type-C Cable

There is one Front
Panel Type C USB 3.2
Gen1 Header on this
motherboard. This header
is used for connecting a
USB 3.2 Gen1 module for
additional USB 3.2 Gen1
ports.

Serial Port Header
(9-pin COM1)
(see p.1, No. 30)

C C T S # 1

R R T S # 1

D D S R # 1

D D T R # 1

R R X D 1

G N D

T T X D 1

D D C D # 1

1

R R I # 1

This COM1 header
supports a serial port
module.

SPI TPM Header
(13-pin SPI_TPM_J1)
(see p.1,  No. 19)

1

SPI_DQ3

+3.3V

SPI_DQ2

SPI_CS0

TPM_Present

CLK

SPI_MISO

SPI_MOSI

GND

SPI_TPM_CS#

RST#

RSMRST#

TPM_PIRQ

This connector supports SPI
Trusted Platform Module (TPM)
system, which can securely
store keys, digital certificates,
passwords, and data. A TPM
system also helps enhance
network security, protects digital
identities, and ensures platform
integrity.

4                            1

8                            5
