Nut Location

A

B

C

PCB Length

4.2cm

6cm

8cm

Module Type

Type2242

Type 2260

Type2280

2.9 M.2_SSD (NGFF) Module Installation Guide (M2_1)

The M.2, also known as the Next Generation Form Factor (NGFF), is a small size and
versatile card edge connector that aims to replace mPCIe and mSATA. The Hyper M.2
Socket (M2_1) supports M Key type 2242/2260/2280 M.2 PCI Express module up to
Gen4x4 (64 Gb/s) (Only supported with 11

th

 Gen Intel® Core

TM

 Processors).

Installing the M.2_SSD (NGFF) Module

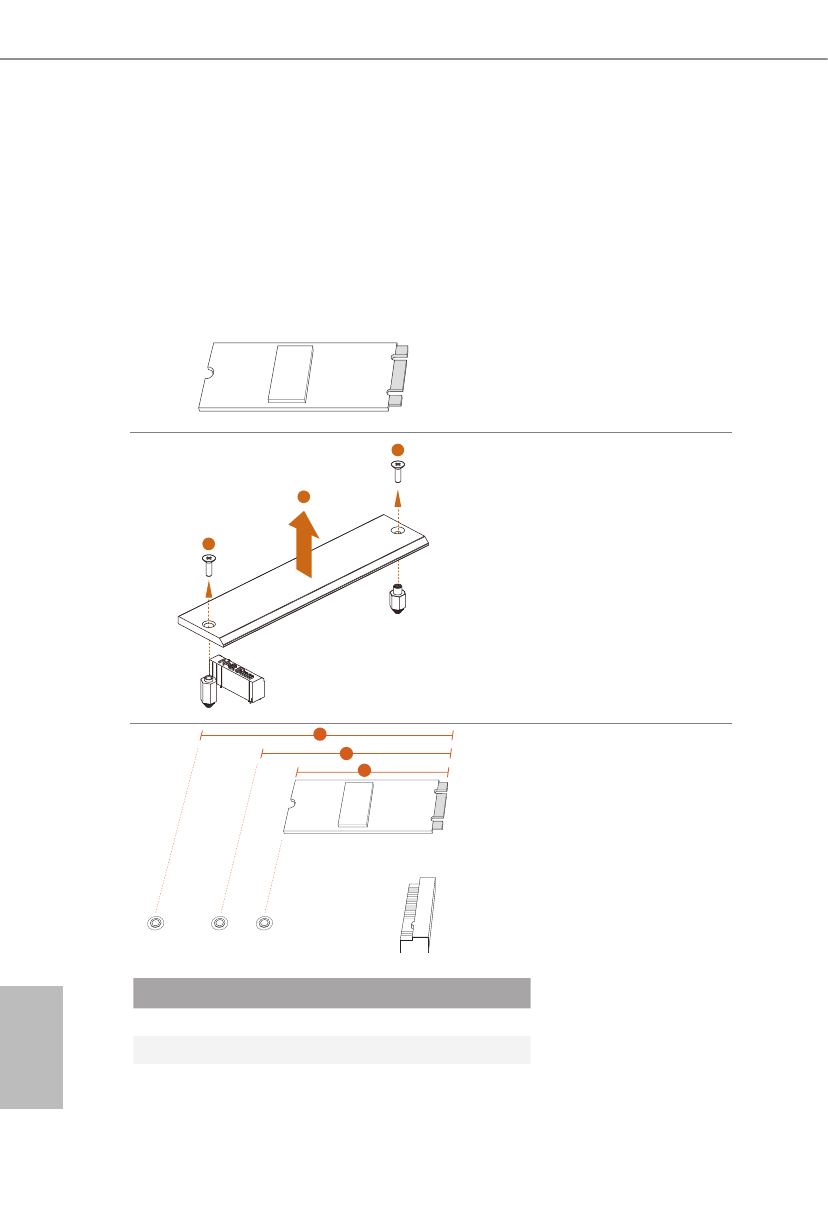

Step 1

Prepare a M.2_SSD (NGFF) module
and the screw.

1

2

1

Step 2

Before installing a M.2 (NGFF)
SSD module, please loosen
the screws to remove the M.2
heatsink.
*Please remove the protective
films on the bottom side of the
M.2 heatsink before you install
a M.2 SSD module.

1

2

3

A

B

C

Step 3

Depending on the PCB type and
length of your M.2_SSD (NGFF)
module, find the corresponding nut
location to be used.
