To Connect A Conventional TV or VCR
*
If your VCR has a SCART connector, use the
provided cable adapter.
**
Connect when your TV/VCR has S-VIDEO IN
and A/V input connectors. In this case, it is not
necessary to connect the yellow video cable.
*** Not required for watching still images only.
**** When connecting the cable, open the cover.
NOTE:
Set the video out select switch of the cable adapter
as required:
Y/C:
When connecting to a TV or VCR which
accepts Y/C signals and uses an S-Video cable.
CVBS:
When connecting to a TV or VCR which does
not accept
Y/C
signals and uses an audio/video
cable.
To Connect To A TV or VCR Equipped With The
Component Video Connectors
*
Not required for watching still images only.
** When connecting the cable, open the cover.

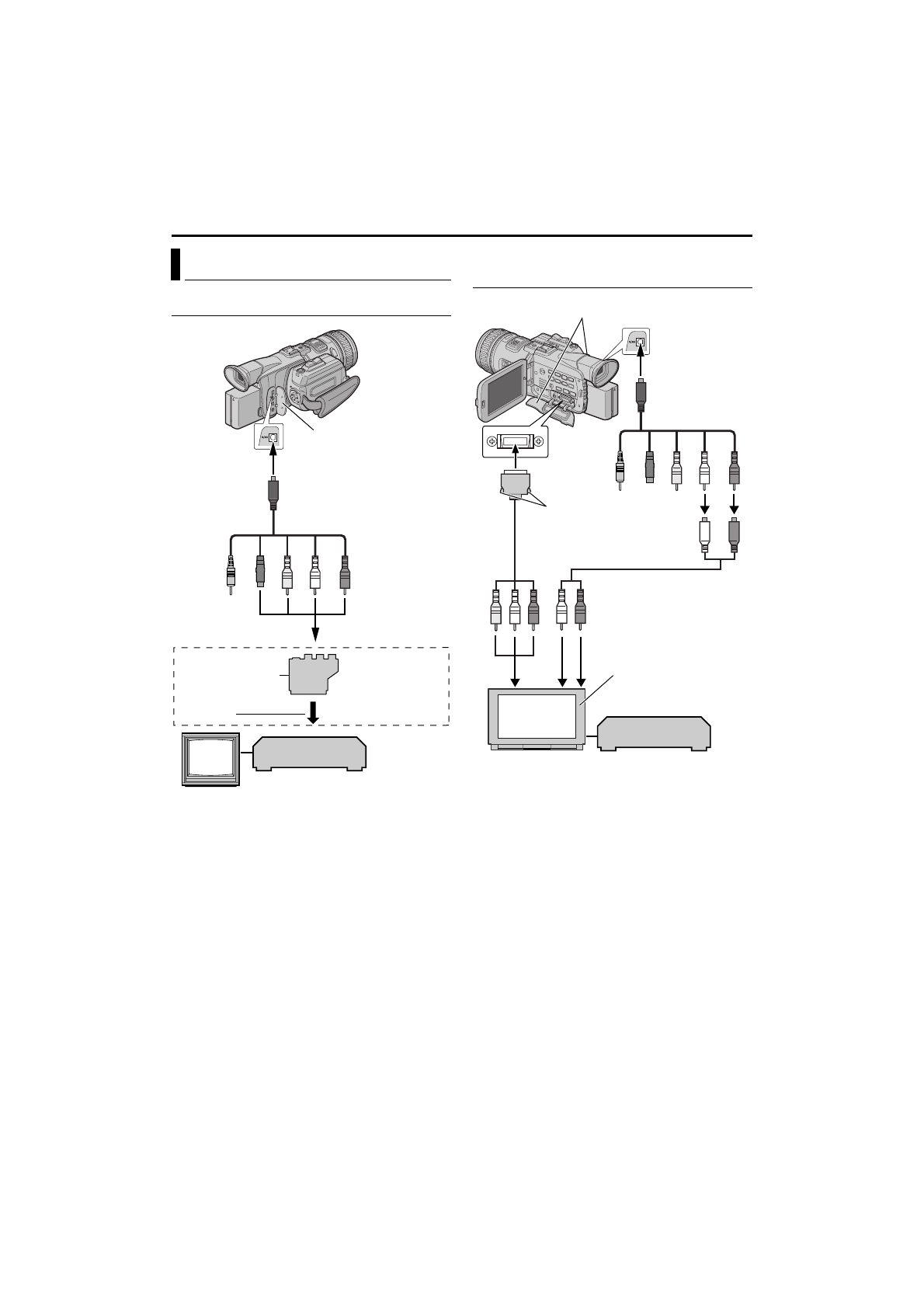

Connections To A TV Or VCR
1
2
3 4
5
TV
VCR
Connector
Cover****
A
Not required for connection.
B
Black to S-VIDEO IN**
C
Yellow to VIDEO IN
D
White to AUDIO L IN***
E
Red to AUDIO R IN***
S/AV/Editing cable
(provided)
To S/AV
To TV or VCR
“Y/C”/“CVBS”
Video Out Select
Switch
Cable Adapter*
1
2
3
2
3
4
5 6
Wide-screen TV
VCR
Connector Cover**
A
To component video connectors
B
White to AUDIO L IN*
C
Red to AUDIO R IN*
D
Not required for connection.
E
Not required for connection.
F
Not required for connection.
S/AV/Editing cable
(provided)
To S/AV
To Y/P
B
/P
R
Component video cable
(provided)
Push to connect or
disconnect
Audio extension cable
(provided)
