English

22

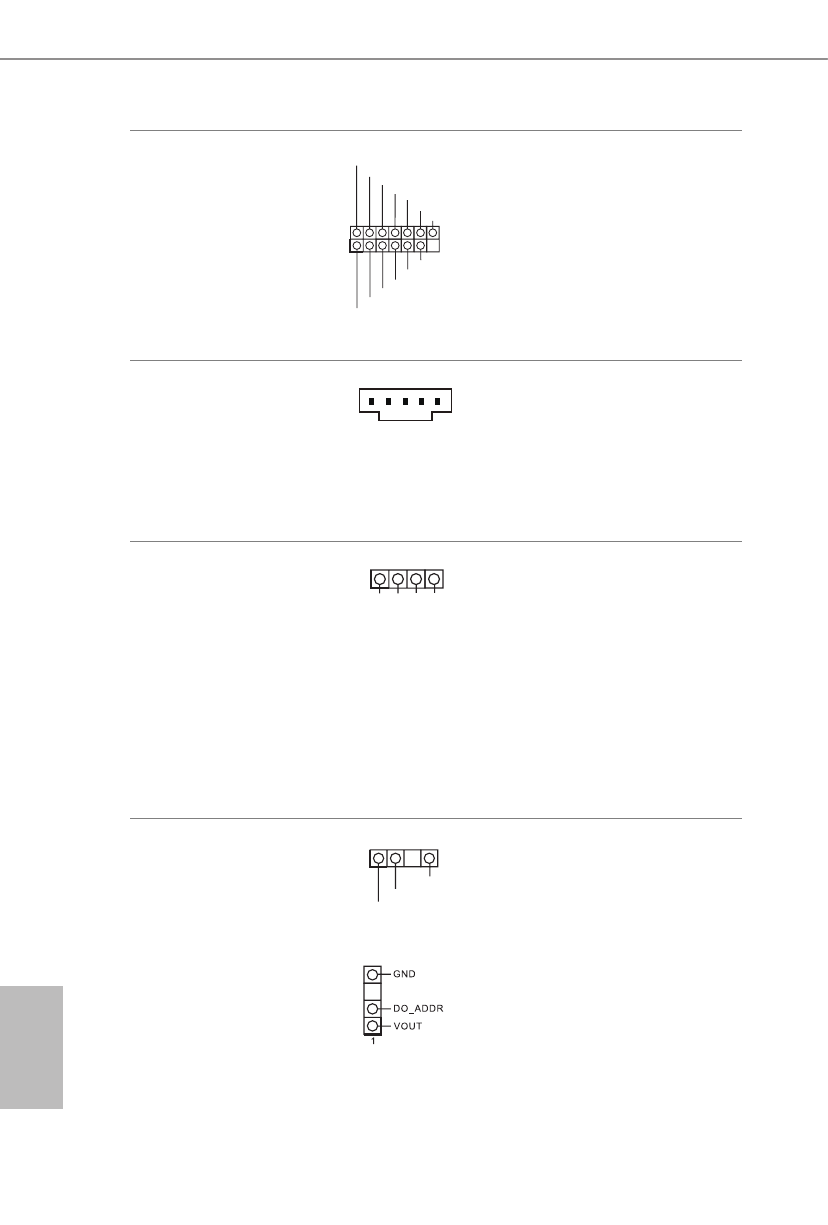

SPI TPM Header
(13-pin SPI_TPM_J1)
(see p.1, No. 17)

This connector supports SPI
Trusted Platform Module (TPM)
system, which can securely store
keys, digital certificates, passwords,
and data. A TPM system also helps
enhance network security, protects
digital  identities, and ensures
platform integrity.

Thunderbolt AIC
Connector
(5-pin TB1)
(see p.1, No. 26)

Please connect a Thunderbolt™ add-
in card (AIC) to the Thunderbolt
AIC connector via the GPIO cable.
*Please install the Thunderbolt™
AIC card to PCIE3 (default
slot).

RGB LED Header
(4-pin RGB_LED1)
(see p.1, No. 27)

This RGB header is used to connect
RGB LED extension cable which
allow users to choose from
various LED lighting effects.

Caution: Never install the
RGB LED cable in the wrong
orientation; otherwise, the cable
may be damaged.

*Please refer to page 36 for further
instructions on this header.

Addressable LED
Headers
(3-pin ADDR_LED1)
(see p.1, No. 28)

(3-pin ADDR_LED2)
(see p.1, No. 7)
(3-pin ADDR_LED3)
(see p.1, No. 6)

These headers are used to connect
Addressable LED extension cables
which allow users to choose from
various LED lighting
effects.

Caution:

Never install the Ad-

dressable LED cable in the wrong
orientation; otherwise, the cable
may be damaged.

*Please refer to page 37 for
further instructions on this header.

1

SPI_DQ3

SPI_PWR

SPI_DQ2

SPI_CS0

Dummy

CLK

SPI_MISO

SPI_MOSI

GND

SPI_TPM_CS#

RST#

RSMRST#

TPM_PIRQ

12V G R B

1

VOUT

DO_ADDR

GND

1
