INSTALLATION

Check the appliance is electrically safe and gas sound when you have finished.

33

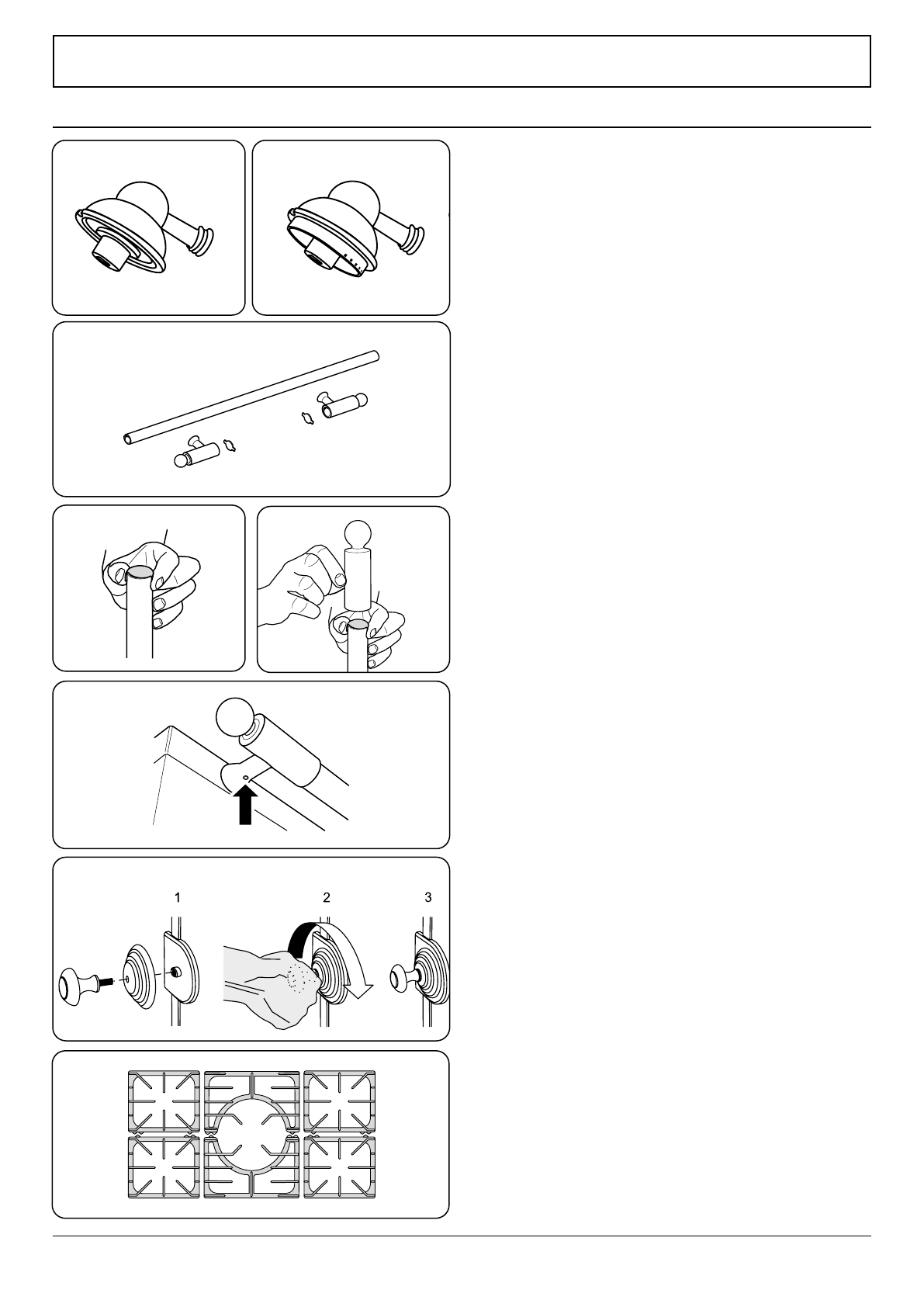

13.  Final fitting and checks

Assemble the range

Installing the control knobs

The range is supplied with 5 burner control knobs. These are

for the gas controls to the left of the control panel (

Fig. 13.1

).

There are also 3 oven control knobs (

Fig. 13.2

).

Push the multi-function oven selector knob and temperature

knob on to the control spindles at the right-hand side of the

control panel.

Installing the handrail

Components (Fig. 13.3)

•

1x Hand rail tube

•

2x End cap with Allen fixing screw

•

2x Plastic friction cup

Hold a friction cup by the tabs on one end of the tube (

Fig.

13.4

).

Line up one of the end caps to the tube and push it on the

tube over the friction cup (

Fig. 13.5

).

Turn the tube over and push on the other end cap using the

second friction cup, making sure that you

DO NOT

 scratch or

damage the first end piece and confirm the two end pieces

are lined up correctly.
The Allen screws should be on the underside (

Fig. 13.6

).

Installing the door handle

Attach the door knob to the door knob base and screw it to

the mounting on the oven door. Hand tighten only –

DO NOT

use any tools (

Fig. 13.7

).

Installing the toe kick

Remove the 3 screws for the toe kick mounts along the

bottom front edge of the range. Fasten the toe kick using

these screws (alternative color screws can be found in the

loose parts pack).

Fitting the grates

Make sure that the grates are in the correct position and

sitting down (

Fig. 13.8

).

ArtNo.020-0007 Knob Types USA

ArtNo.280-0053 Door Knob Screw to Door

ArtNo.020-0007 Knob Types USA

Fig. 13.1

Fig. 13.2

Fig. 13.3

Fig. 13.4

Fig. 13.5

Fig. 13.6

Fig. 13.7

ArtNo280-0084 DF Pan Supports

Fig. 13.8
