17

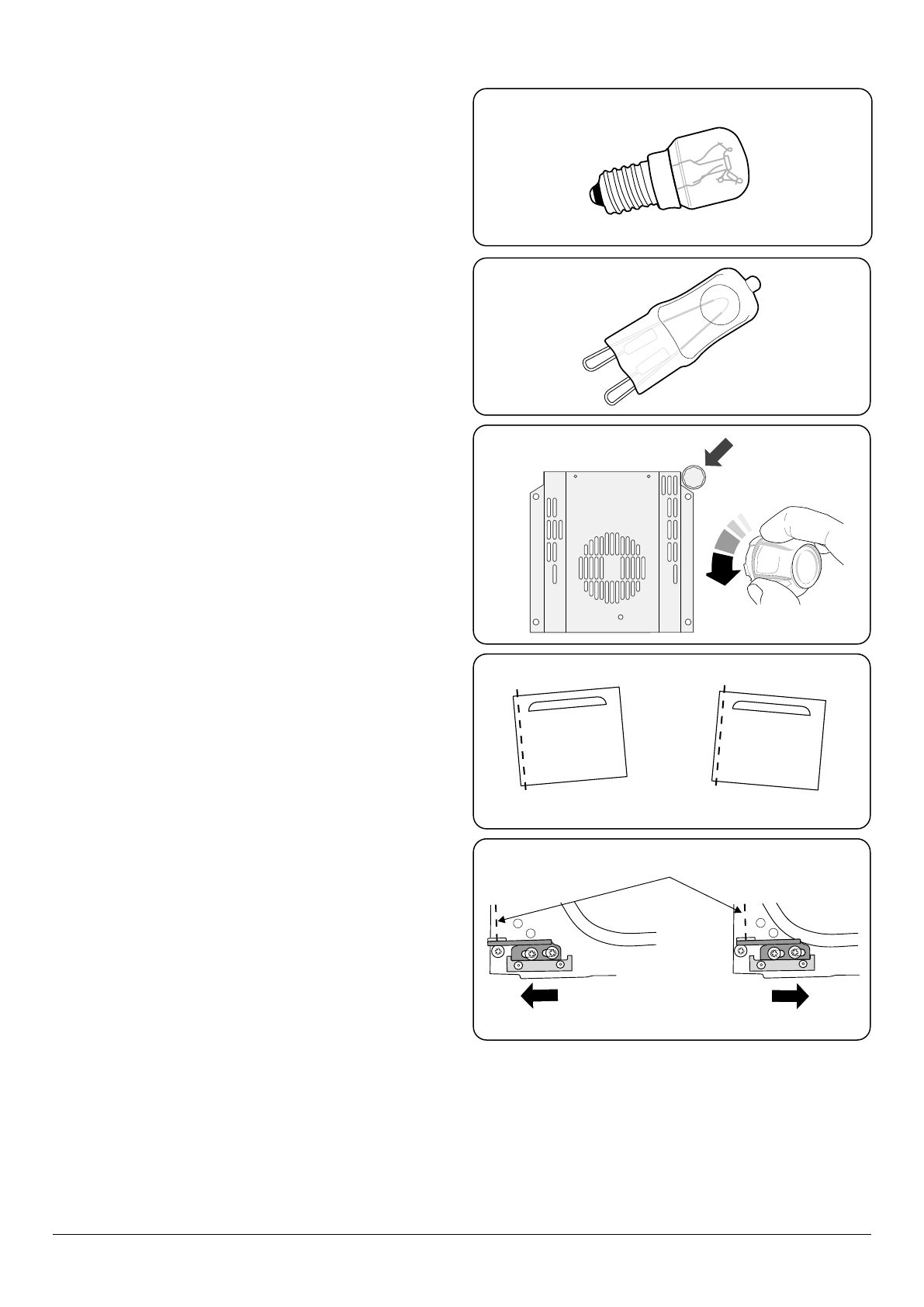

Oven light is not working

The bulb has probably burnt out. You can buy a replacement

bulb (which is not covered under the warranty) from a good

electrical store. Depending on the type of bulb, ask for a 15 W

– 110V / 130V lamp (

Fig. 6.1

) or a 40 W – 110 V / 130V halogen

lamp (G9) (

Fig. 6.2

).

Note:

 For bulb type 1, it

MUST

 be a

special bulb, heat resistant to 300 °C.
Turn off the power at the circuit breaker.
Before removing the existing bulb, turn off the power supply

and make sure that the oven is cool. Open the oven door and

remove the oven shelves.
Unscrew the bulb cover by turning counter-clockwise. It may

be very stiff (

Fig. 6.3

).

For bulb type 1

Taking care to protect your fingers with a glove in case the

bulb should shatter, unscrew the old bulb.
Screw in the new bulb; screw back the bulb cover. Turn on the

circuit breaker and check that the bulb now lights.

For bulb type 2

Pull the existing bulb to remove it. When handling the

replacement bulb, avoid touching the glass with your fingers,

as oils from your hands can cause premature failure. Push,

click in the replacement bulb.
Replace the bulb cover by turning it a quarter turn, clockwise.

Turn on the circuit breaker and check that the bulb now

lights.

The oven door is misaligned

The bottom hinge of either oven door can be adjusted to

alter the angle of the door (

Fig. 6.4

). Loosen the bottom

hinge fixing screws and use the notch and a flat bladed

screwdriver to move the position of the hinge to set the

hinge position (

Fig. 6.5

).

Retighten the hinge screws.

ArtNo.324-0005  Oven light bulb

Fig. 6.1

Fig. 6.2

Fig. 6.3

15 W – 110V / 130V

Bulb type 1

Bulb type 2

40W – 110V / 130V

ArtNo.320-0007 Oven door hinge adjustment 2

Effect of hinge adjustment – exaggerated for clarity

Oven door omitted for clarity

Centre line of hinge pin

Fig. 6.4

Fig. 6.5
