INSTALLATION

Check the appliance is electrically safe and gas sound when you have finished.

25

ArtNo.280-0001 36” wide oven dimensions

Min 435/16” (110 cm) - 4311/16“ (111 cm)

For Canada, min 445/16” (112.5 cm)

Min 31½” (80 cm)

between the top of the cooktop

and a horizontal combustible surface

Maximum 13”

(33 cm)

Min 433/8” (110.2 cm)

recommended to allow for moving the range.

For Canada, min 445/16” (112.5 cm)

For electrical and

gas supply zone

Min 35 13⁄16” (91cm)

Max 36 7/8” (93.7cm)

4.5” (11.3 cm)

12.5” (32 cm)

8” (20 cm)

Gas shut-off

 valve

Electrical

outlet

Minimum 18”

(46 cm)

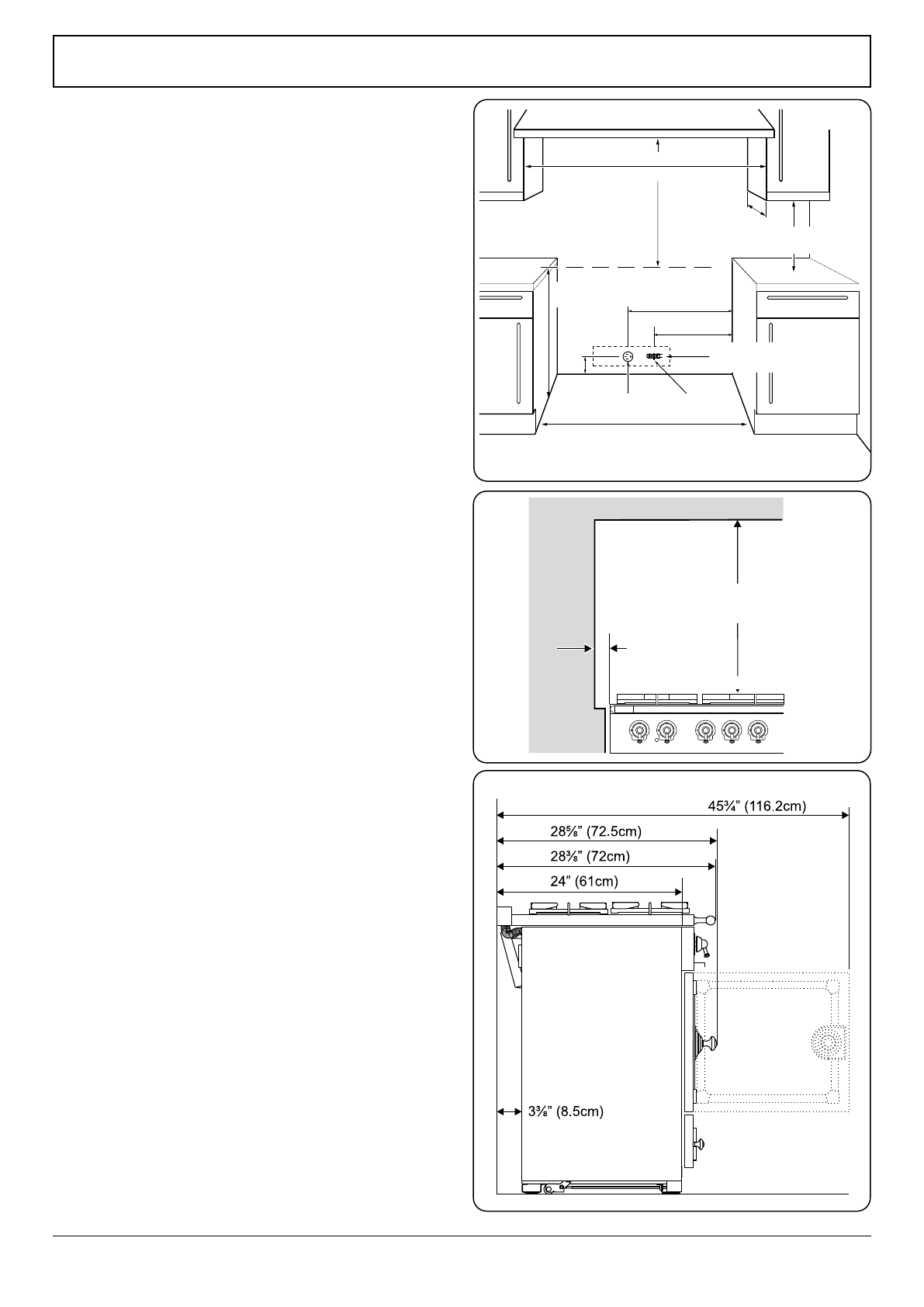

Positioning the range

Fig. 10.1

 and

Fig. 10.2

 show the minimum recommended

distances and clearances from the range to nearby surfaces.
You must provide adequate clearances between the range

and adjacent combustible surfaces. These dimensions must

be met for safe use of your range.
The location of the electrical outlet and pipe opening (see

Gas Pipe and Electric Outlet Locations) may be adjusted to

meet specific requirements.
A gap of at least 3” (7.5 cm) should be left between each

side of the range

ABOVE

 the cooktop level and any adjacent

vertical surface.
The cooktop surround should be level with, or above, any

adjacent work surface.
For non-combustible surfaces (such as unpainted metal or

ceramic tiles) the gap on each side can be reduced from 3” to

1” (2. 5 cm).
A minimum space of 31½” (80 cm) is required between the

top of the cooktop and a horizontal combustible surface. The

maximum depth for cabinets installed above cooktops is 13’’

(33 cm).
The depth of the range is 283/8’’ (72 cm) overall (

Fig. 10.3

).

Any range hood should be installed in accordance with the

hood manufacturer’s instructions.
*Any splash-back must be fitted in accordance with the

manufacturer's instructions. Allowance should be made for

the additional height of the flue trim, which is fitted to the

cooker hob.



For safety reasons, curtains MUST NOT be sited

immediately behind the range.

We recommend a gap of 433/8” (110.2 cm) (for Canada 445/16”

(112.5 cm)) between units to allow for moving the range.
If a flush fit is required (USA only), install the range up to the

unit at one side then install the unit the other side.

DO NOT

 box the range in – it must be possible to move the

range in and out for cleaning and servicing.

*

3” (7.5cm)

minimum

31½” (80cm)

minimum

Fig. 10.1

Fig. 10.2

Fig. 10.3

minimum

minimum

without side extension

fitted

Open oven door

shown dotted

Min 435/16” (110 cm) - 4311/16” (111 cm)

For Canada, min 445/16” (112. 5 cm)

Min 31½” (80 cm) between the top

of the cooktop and a horizontal

combustible surface

Maximum 13”

(33 cm) Minimum 18”

(46 cm)

Gas shut-off

valve

Electrical

outlet

For electrical and gas

supply zone

recommended to allow for moving the range.

For Canada, min 445/16” (112. 5 cm)
