INSTALLATION

Check the appliance is electrically safe and gas sound when you have finished.

28

ArtNo.280-0070 - Side extension A

ArtNo.280-0071 - Side extension B

ArtNo.281-0004 - 90SC

- Fitting the side panel

ArtNo.281-0005 - Albertine SC

- Side panel in place

Side panel extension kit

Two side extension panels are supplied with the range. These

can be installed where the side of the range is exposed. The

extension installation must be performed by a qualified gas

installer, preferably during installation of the appliance

(

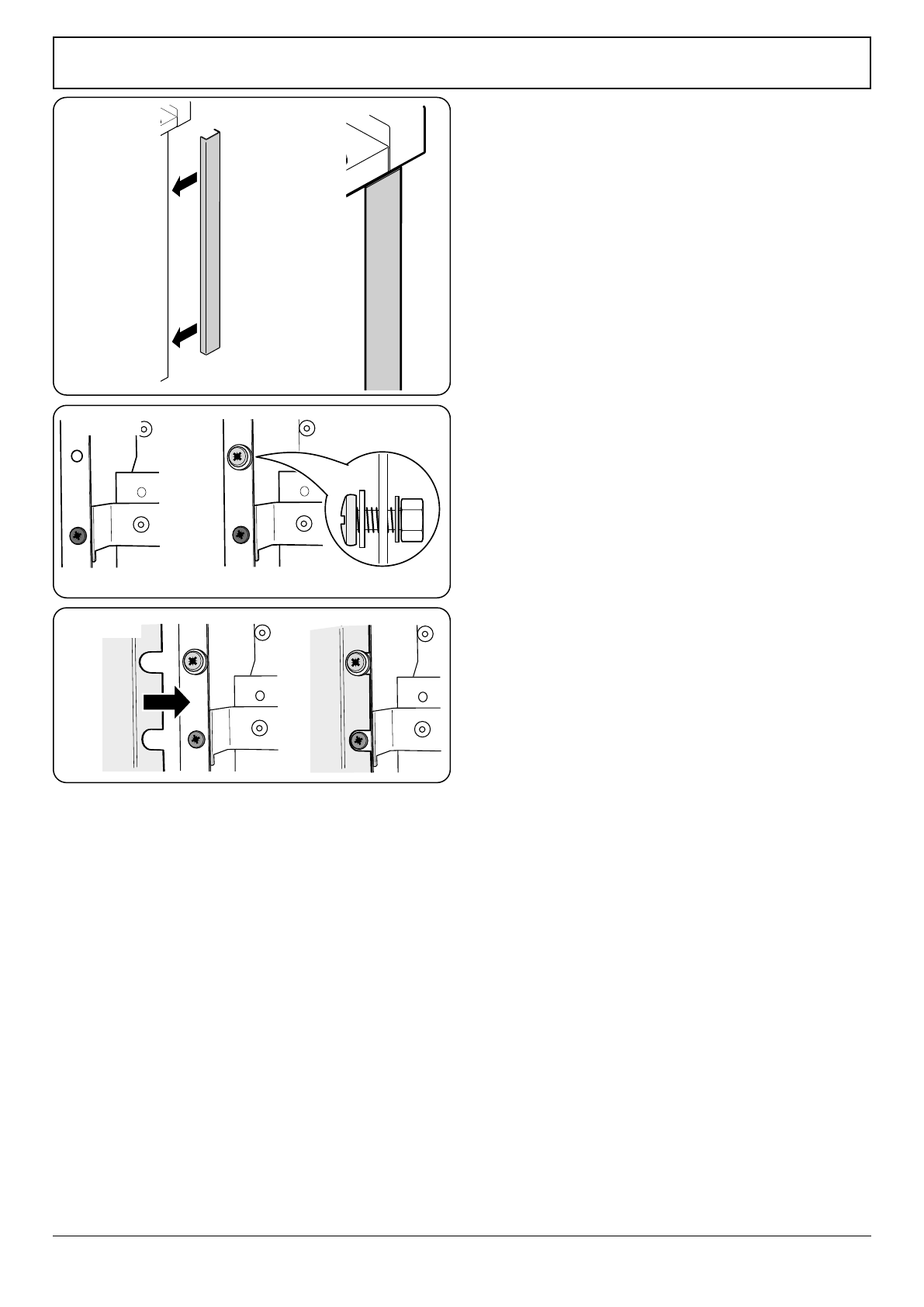

Fig. 10.13

).

Kit Contents:

•

2x Side panel extension

•

4x M5 screw

•

4x M5 nut

•

4x Large washer

•

4x Shake-proof washer

Procedure
1.

Place a screw and washer in the top hole in the rear

edge of the range side panel. Add a shake-proof washer

and start the nut on the screw threads so that the screw

is loosely held in place. Repeat with the other hole

(

Fig. 10.14

).

2.

Slide the side extension in from the side behind the

washers (

Fig. 10.15

).

3.

Tighten the top and bottom screws to hold the side

extension in place.

Reposition the range making sure the anti-tip device is re-

engaged properly when the range is replaced. Failure to take

this precaution could result in tipping of the range and cause

injury.

NOTE:

Check that the extension panel does not foul the

mains lead or gas connection when the cooker is pushed

back.  Reconnect the electricity supply.

Fig. 10.13

Fig. 10.14

Fig. 10.15
