OPERATING INSTRUCTIONS

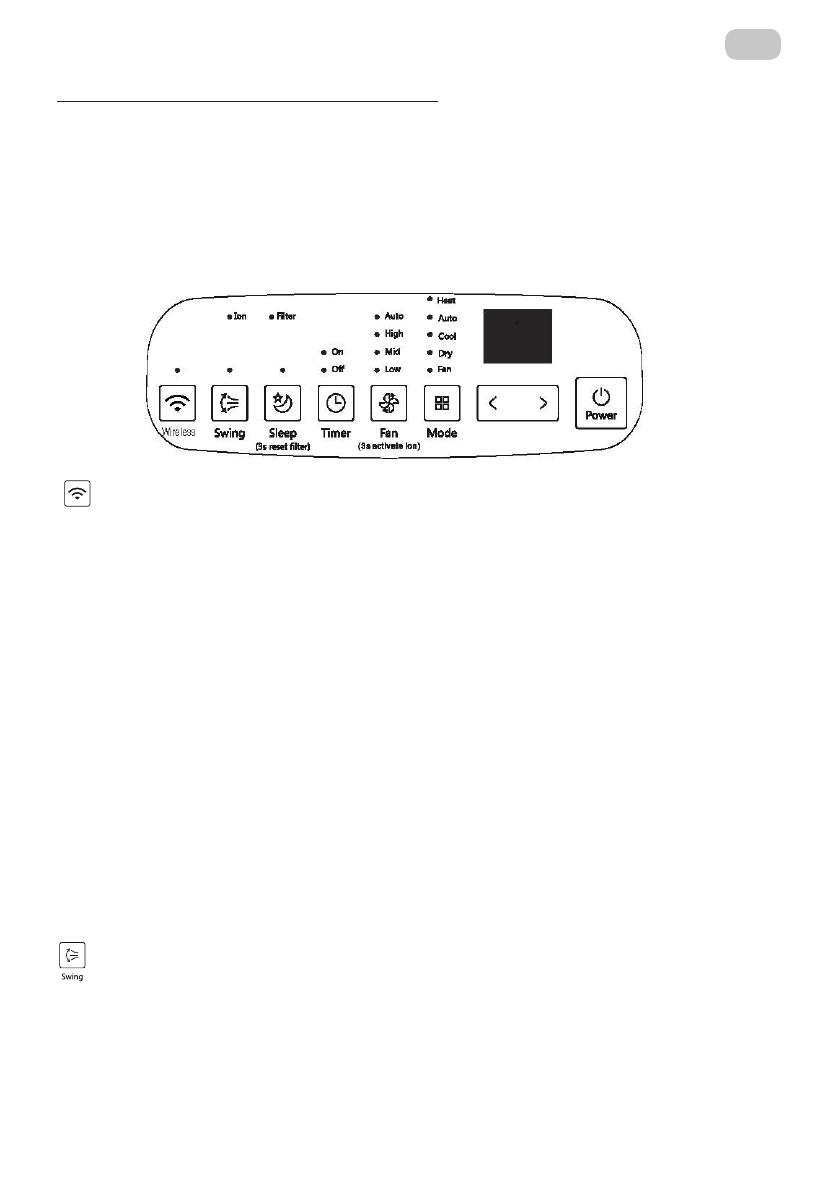

Control Panel Features

NOTE: The following control panels are for explanation purpose only.

The control panel of the unit you purchased may be slightly different

according to the models. Your machine may not contain some

indicators or buttons. The actual shape shall prevail.



Page 17



Operating Instructions

Control Panel Features

Wireless

Swing button(On some models)

(Applicable to the models with auto swing feature

only)

Used to initiate the Auto swing feature. When the

operation is ON, press the SWING button can stop the

louver at the desired angle.

NOTE: When you restart the wireless function, it

may take a period of time to connect to the network

automatically.

Wireless

(3s activate ion)

Sleep(Eco)/Filter button

Used to initiate the SLEEP/ECO operation.

Mode button

Selects the appropriate operating mode. Each

time you press the button, a mode is selected

in a sequence that goes from AUTO, COOL,

DRY, FAN and HEAT (cooling only models

without).The mode indicator light illuminates

under the different mode settings.

 Wireless button(On some models)

Used to initiate the wireless connection mode. For the first time to use

wireless function, press the wireless button for 3 seconds to initiate

the wireless connection mode. The LED DISPLAY shows ‘AP’ to indicate

you can set wireless connection. If connection(router) is successful

within 8 minutes, the unit will exit wireless connection mode

automatically and the wireless indicator illuminates. If connection

is failure within 8 minutes, the unit exits wireless connection mode

automatically. After Wireless connection is successful, for some

models you can press Wireless and DOWN (-) buttons at the same

time for 0.5 seconds to turn off Wireless function and the LED DISPLAY

shows ‘OF’ for 3 seconds, press Wireless button to turn on Wireless

function and the LED DISPLAY shows ‘ON’ for 3 seconds.

NOTE: When you restart the wireless function, it may take a period of

time to connect to the network automatically.



Page 17



Operating Instructions

Control Panel Features

Wireless

Swing button(On some models)

(Applicable to the models with auto swing feature

only)

Used to initiate the Auto swing feature. When the

operation is ON, press the SWING button can stop the

louver at the desired angle.

NOTE: When you restart the wireless function, it

may take a period of time to connect to the network

automatically.

Wireless

(3s activate ion)

Sleep(Eco)/Filter button

Used to initiate the SLEEP/ECO operation.

Mode button

Selects the appropriate operating mode. Each

time you press the button, a mode is selected

in a sequence that goes from AUTO, COOL,

DRY, FAN and HEAT (cooling only models

without).The mode indicator light illuminates

under the different mode settings.

 Swing button(On some models)

(Applicable to the models with auto swing feature only)

Used to initiate the Auto swing feature. When the operation is ON,

press the SWING button can stop the louver at the desired angle.
