Exhaust Hose Installation

The exhaust hose and adaptor must be installed or removed in

accordance with the usage mode. For COOL,HEAT(heat pump type)

or AUTO mode must be installed exhaust hose. For FAN, DRY or HEAT

(electrical heat type) mode must be removed exhaust hose.

Choosing The Right Location

Your installation location should meet the

following requirements:

- Make sure that you install your unit on an even

surface to minimize noise and vibration.

- The unit must be installed near a grounded

plug, and the Collection Tray Drain (found on the

back of the unit) must be accessible.

- The unit should be located at least 30cm

(12”) from the nearest wall to ensure proper air

conditioning. The horizontal louver blade should

be at least 50cm (19.7”) away from obstacles.

- DO NOT cover the Intakes, Outlets or Remote Signal Receptor of the

unit, as this could cause damage to the unit.

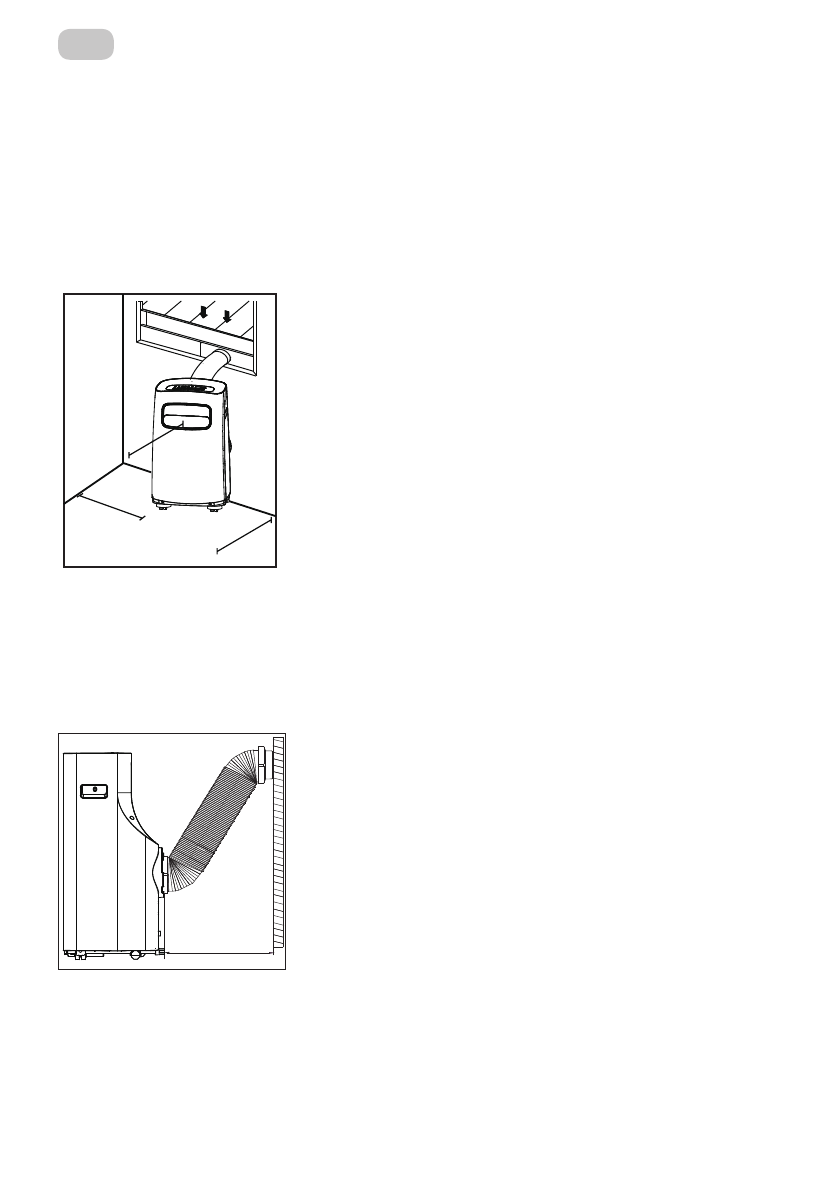

Recommend Installation



Page 12



50cm

50cm

19.7inch

50cm

19.7inch

19.7inch

 Installation

Instructions

Choosing The Right Location

Recommend Installation

Your installation location should meet the following requirements:

-Make sure that you install your unit on an even surface to minimize noise and

vibration.

-The unit must be installed near a grounded plug, and the Collection Tray Drain

(found on the back of the unit) must be accessible.

-The unit should be located at least 30cm (12”) from the nearest wall to ensure

proper air conditioning. The horizontal louver blade should be at least 50cm

(19.7”) away from obstacles.

-DO NOT cover the Intakes, Outlets or Remote Signal Receptor of the unit, as this

could cause damage to the unit.

50cm

19.7 inch

Energy Rating Information

How to Stay Cool with a New Portable Air Conditioner(For the models comply with the
requirements of Department Of Energy in US)

Because of a new federal test procedure for Portable Air Conditioners, you may notice that the cooling capacity

claims on portable air conditioner packaging are significantly lower than that of models produced prior to 2017.

This is due to changes in the test procedure, not to the portable air conditioners themselves.

The unit with 3 meters extended exhaust duct is running by using 2 exhaust ducts(Diameter:150mm, Length:1.5m

+ Diameter: 130mm, Length: 1.5m)

.

The Energy rating and noise information for unit with 3 meters extended

exhaust duct is not assessed.(For some models)

NOTE

：

We recommend that operating the unit at room temperature below 35

°C

 . Since there is a risk that the unit with 3

meters extended exhaust duct would not work at room temperature above 35

°C

under some extreme conditions,

such as the lower air intake be blocked for 50%.

The energy rating and noise information for this unit is based on the standard installation using an un-extended

exhaust duct without window slider adaptor (as shown in the Installation section of this manual). At the

same time, the unit must be operate on the COOL MODE and HIGH FAN SPEED by remote controller.

MODE

Temperature Range

MODE

Temperature Range

Ambient Temperature Range For Unit Operating

Cool

17-35°C (62-95°F)

Dry

Heat(pump heat mode)
Heat(electrical heat mode)

13-35°C (55-95°F)

5-30°C (41-86°F)

Exhaust Hose Installation

The exhaust hose and adaptor must be installed or removed in accordance with the usage mode. For

COOL,HEAT(heat pump type) or AUTO mode must be installed exhaust hose. For FAN, DRY or HEAT

(electrical heat type) mode must be removed exhaust hose.

30°C (86°F)

≥



Page 12



50 cм

50 cм

50 cм

 Installation

Instructions

50 cм

How to Stay Cool with a New Portable Air Conditioner(For the models comply with the

requirements of Department Of Energy in US)

Because of a new federal test procedure for Portable Air Conditioners, you may notice that the

cooling capacity claims on portable air conditioner packaging are significantly lower than that of

models produced prior to 2017. This is due to changes in the test procedure, not to the portable

air conditioners themselves.

What should I look for first when purchasing a portable air conditioner?

The right air conditioner helps you cool a room efficiently. An undersized unit won't cool adequately

while one that's too large will not remove enough humidity, leaving the air feeling damp. To find

the proper air conditioner, determine the square footage of the room you want to cool by

multiplying the room length by its width. You also need to know the air conditioner's BTU (British

Thermal Unit) rating, which indicates the amount of heat it can remove from a room. A higher
