124

EN

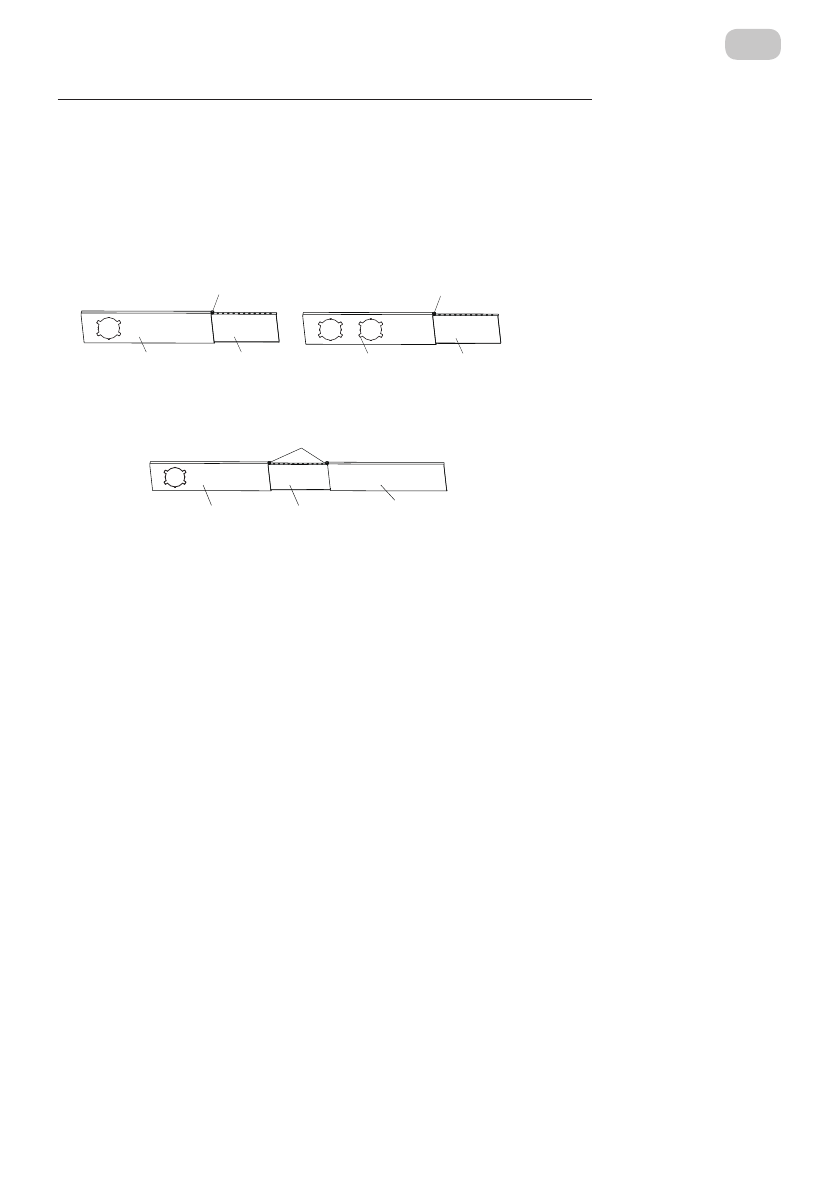

Step Three: Preparing the Adjustable Window Slider

1.  Depending on the size of your window, adjust the size of the

window slider.

2.  If the length of the window requires two or three window sliders,

use the bolt(s) to fasten the window sliders once they are adjusted

to the proper length.



Page  15



Installation

NOTE: Once the Exhaust Hose assembly and Adjustable Window Slider are prepared, choose from one of

the following two installation methods.

 Installation

Instructions

Step Three: Preparing the Adjustable Window

Slider

1. Depending on the size of your window, adjust

the size of the window slider.

2. If the length of the window requires two or three

window sliders, use the bolt(s) to fasten the

window sliders once they are adjusted to the

proper length.

or

Window slider A

MODEL A

MODEL B

Window slider B

Bolt

Window slider A Window slider B

Bolt

MODEL A

Window slider A Window slider B

Window slider C

Bolts

Or

Or

Or

Foam seal B

(Adhesive type-shorter)

Foam seal A

(Adhesive type)

Window

slider A

Window slider

B(if required)

Foam seal C

(Non-adhesive type)

Type 1: Hung Window or Sliding Window Installation(For some models)

1. Cut the adhesive foam seal A and B strips to the proper lengths, and attach them to the window sash

and frame as shown.

3. Cut the non-adhesive foam seal C strip to match the width(or height) of the window. Insert the seal

between the glass and the window frame to prevent air and insects from getting into the room.

2. Insert the window slider assembly into the window opening.

Foam seal B

(Adhesive type-shorter)

Foam seal A

(Adhesive type)

Window slider A

Window slider B

(if required)

Foam seal C

(Non-adhesive type)
