18

 En

Connections

■

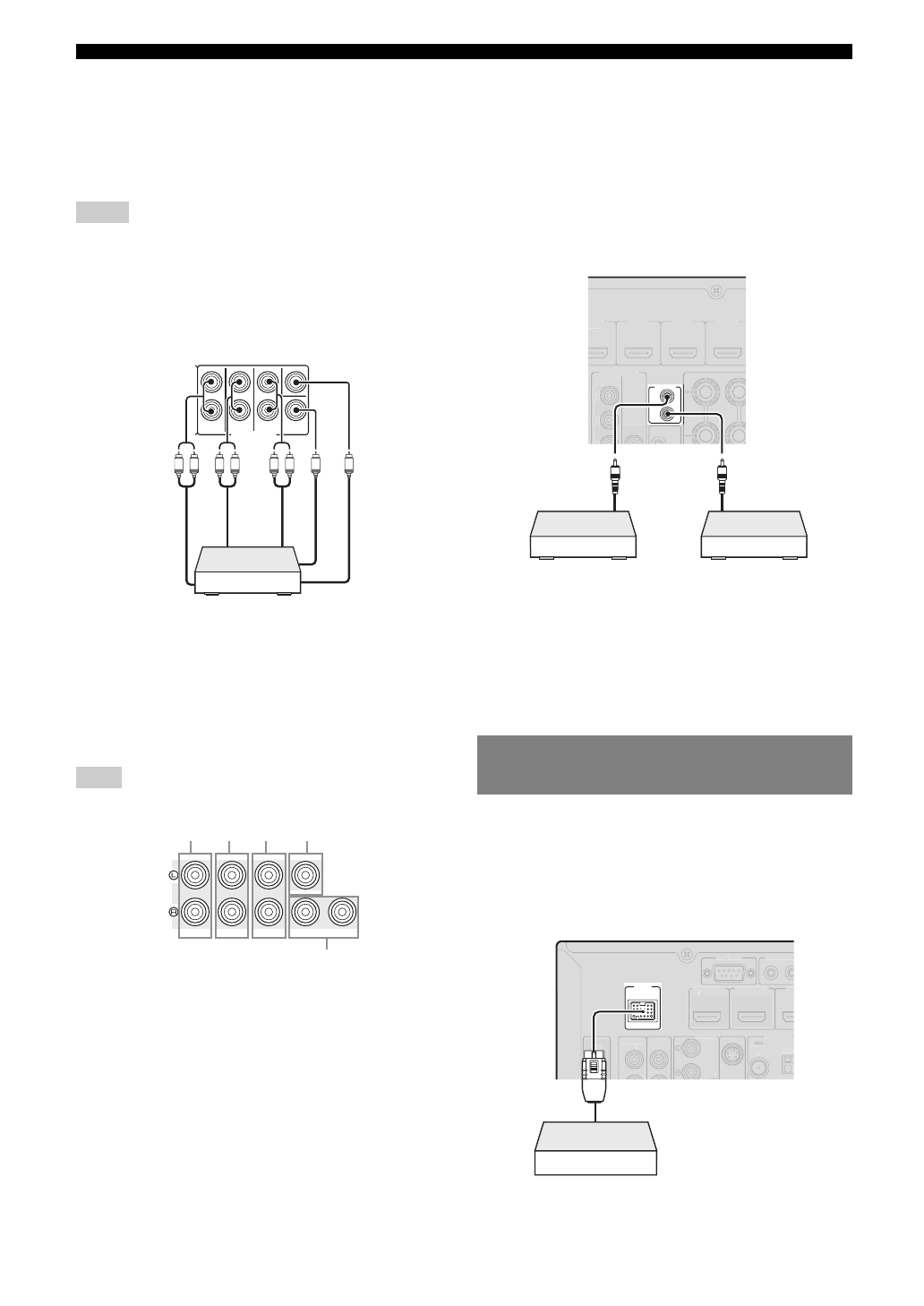

Connecting a multi-format player or an
external decoder

This unit is equipped with 8 additional input jacks (Front
L/R, Center, Surround L/R, Surround Back L/R and
Subwoofer) for analog multi-channel input from a multi-
format player, external decoder, etc.

Notes

•

When you select “MULTI CH” as the input source, the digital sound field
processor is automatically disabled.

•

Since this unit does not redirect signals input at the MULTI CH INPUT
jacks to accommodate for missing speakers, connect at least a 5.1-
channel speaker system when using this feature.

•

You can specify a video signal to be output during a multi-channel audio
reproduction (page 45). If your DVD player has analog multi-channel
output jacks, connect them to the MULTI CH INPUT jacks while making
a video connection (component video or composite).

■

Connecting an external amplifier

If you want to use another amplifier, connect an external
amplifier to the PRE OUT jacks. Each PRE OUT jack
outputs the same channel signals as the corresponding
speaker terminals.

Note

•

When you make connections to the PRE OUT jacks, do not make any
connections to the speaker terminals.

a

FRONT PRE OUT jacks

Front channel output jacks.

b

SURROUND PRE OUT jacks

Surround channel output jacks.

c

SUR.BACK PRE OUT jacks

Surround back output jacks. When you only connect one
external amplifier for the surround back channel, connect it to
the left SUR.BACK (SINGLE) jack.

y

•

To output surround back channel signals at these jacks, set
“Surround Speaker” to any parameter except “None” (page 49).

d

CENTER PRE OUT jack

Center channel output jack.

e

SUBWOOFER PRE OUT 1/2 jack

Connect a subwoofer with a built-in amplifier. When two
subwoofers are connected, the same sound is output from them.

■

Transmitting/receiving remote control signals

When the components have the capability of the
transmission of the remote control signals, connect the
REMOTE IN and REMOTE OUT jacks to the remote
control input and output jack with the monaural analog
mini cable as follows.

y

•

If connecting a Yamaha component that supports the SCENE control
signal reception to the REMOTE OUT jack of this unit, you can start
playback on the Yamaha component by using the SCENE function
(page 24).

•

If connecting a component other than Yamaha products to the REMOTE
OUT jack of this unit, set “SCENE IR” to “OFF” in the advanced setup
menu (page 63).

This unit has the DOCK terminal, to which you can
connect a Yamaha iPod universal dock (YDS-11, sold
separately) or a Bluetooth wireless audio receiver (YBA-
10, sold separately). You can play an iPod or a Bluetooth
component with this unit by connecting it to the DOCK
terminal.

FRONT

SURROUND

SUR.BACK

SUBWOOFER

MULTI CH INPUT

CENTER

L

R

L

R

R

L

Surr

ound

bac
k out

Surr

ound

out

Fr

o

n

t out

Subw

oof
er out

Center out

Multi-format player or external decoder

(7.1-channel output)

FRONT

SURROUND

SUR. BACK

SUBWOOFER

PRE OUT

CENTER

SINGLE

1

2

a

b

c

d

e

Connecting a Yamaha iPod universal dock
or Bluetooth™ wireless audio receiver

IN

OUT

REMOTE

HDMI 1

BD/DVD)

HDMI 2

HDMI 3

HDMI 4

VIDEO

MONITOR OUT

P

R

P

B

Y

COMPONENT

VIDEO

Remote

control out

Remote

control in

Infrared signal

receiver or Yamaha

component

IR flasher or

Yamaha component

(CD or DVD player, etc.)

DOCK

RS- 232C

TRIGGER O

COMPONENT

VIDEO

P

R

1

2

OPTICAL

OUT

HDMI OUT 2

HDMI OUT 1

ANTENNA

PHONO

UNBAL.

FM

GND

S VIDEO

HD

(BD

(HDMI CONTROL)

GND

Yamaha iPod universal dock or

Bluetooth wireless audio receiver
