59

 En

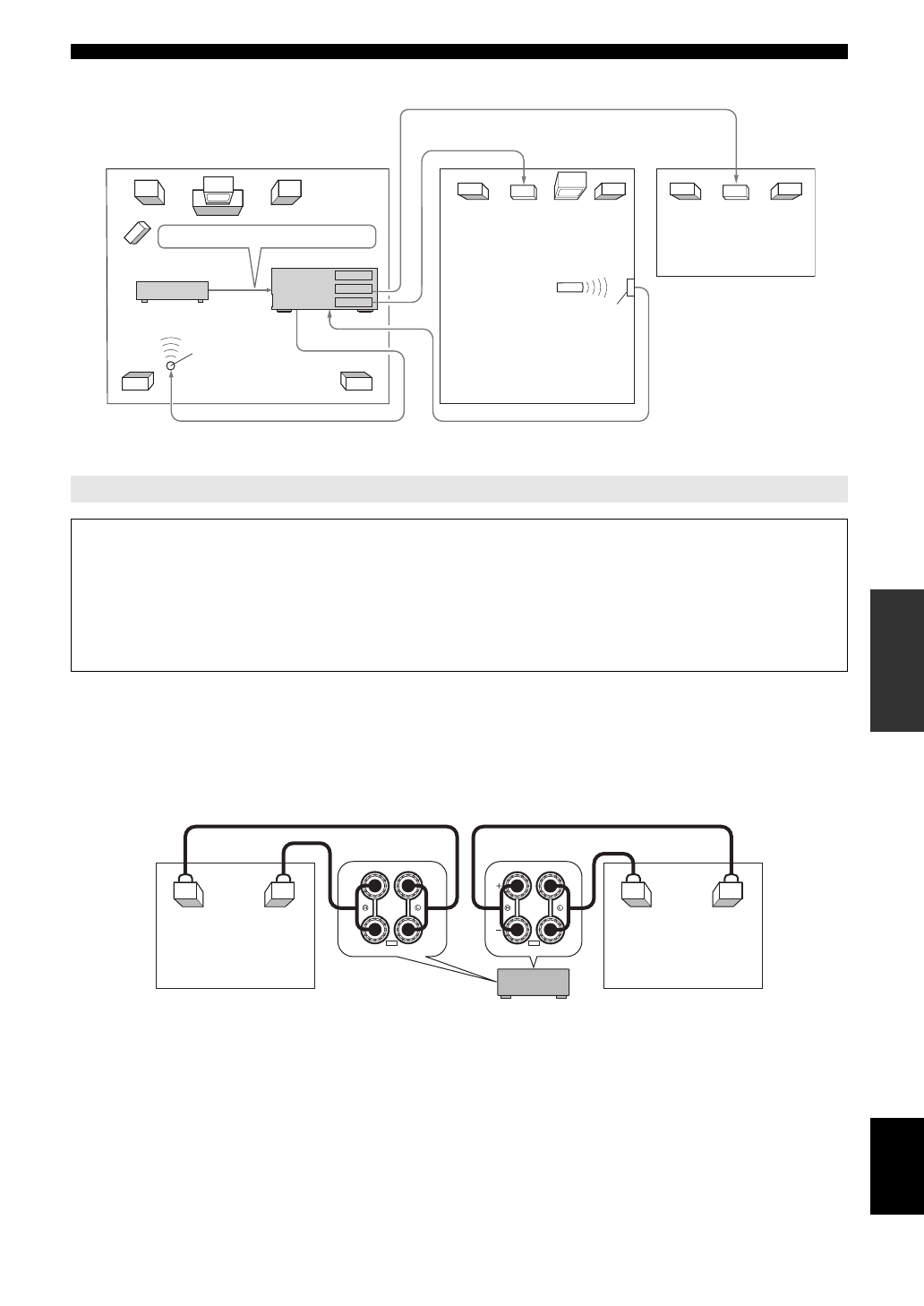

Using multi-zone configuration

English

INTR

ODUCTION

AD
DITIONAL

INFORMA

T

ION

APPENDIX

PRE

PARA

T

ION

BA
S

IC

OPERA

T

ION

AD
VANCED

OPERA

T

ION

If you want to use one internal amplifier of this unit

Connect the Zone 2 speakers directly to the SP1 terminals and then set “Extra Speaker Assignment” to “Zone2”
(page 49)

If you want to use two internal amplifiers of this unit

Connect the Zone 2 and Zone 3 speakers directly to the SP1 and SP2 terminals and then set “Extra Speaker Assignment”
to “Zone2 + Zone3” (page 49).

y

•

You can use the speakers connected to EXTRA SP (SP1/SP2) terminals as the front speaker system of another zone.

•

When you use the internal amplifiers for the Zone2/3 speakers, you can adjust the volume level and set the initial volume and maximum volume of the
Zone2/3 speakers (page 53).

Using the internal amplifiers of this unit

Important safety notice

The EXTRA SP terminals of this unit should not be connected to a Passive Loudspeaker Selector Box or more than
one loudspeaker per channel.
Connection to a Passive Loudspeaker Selector Box or multiple speakers per channel could create an abnormally low
impedance load resulting in amplifier damage. See this owner’s manual for correct usage.
Compliance with minimum speaker impedance information for all channels must be maintained at all times. This
information is found on the back panel of your unit.

MAIN

ZONE 2

ZONE 3

Infrared signal
emitter

DVD player etc.

Amplifier

Remote control

Infrared signal
receiver

Amplifier

Second zone

(Zone 2)

Third zone

(Zone 3)

Main zone

This unit

From the ZONE2 OUT jacks

From the ZONE3 OUT jacks

To the REMOTE IN jack

From the REMOTE OUT jack

Analog audio signals only

ZONE2/PRESENCE

SP1

ZONE3

SP2

Zone3 speakers

This unit

Zone2 speakers
