To output sound of a TV from this unit, make connection
between one of the AV 1-6 jacks of this unit and an audio
output jack of the TV.
If the TV supports an optical digital output, we
recommend that you use the AV 1 jack. Connecting to the
AV 1 jack allows you to switch an input source to the AV 1
jack with a just a single key operation using the SCENE
function (page 24).

Note

•

If the video monitor connected to this unit supports the HDMI control
function, we recommend that you connect its audio output jack to the
OPTICAL jack of the AV1 jacks of this unit. By doing so, this unit
automatically turns on and "TV" of SCENE is automatically selected
when you turn on the video monitor. You can obtain the same result even
if you connect the audio output jacks to the AV2-6, AUDIO1-2 or VAUX
jacks by assigning those jacks to TV in advance (page 24).

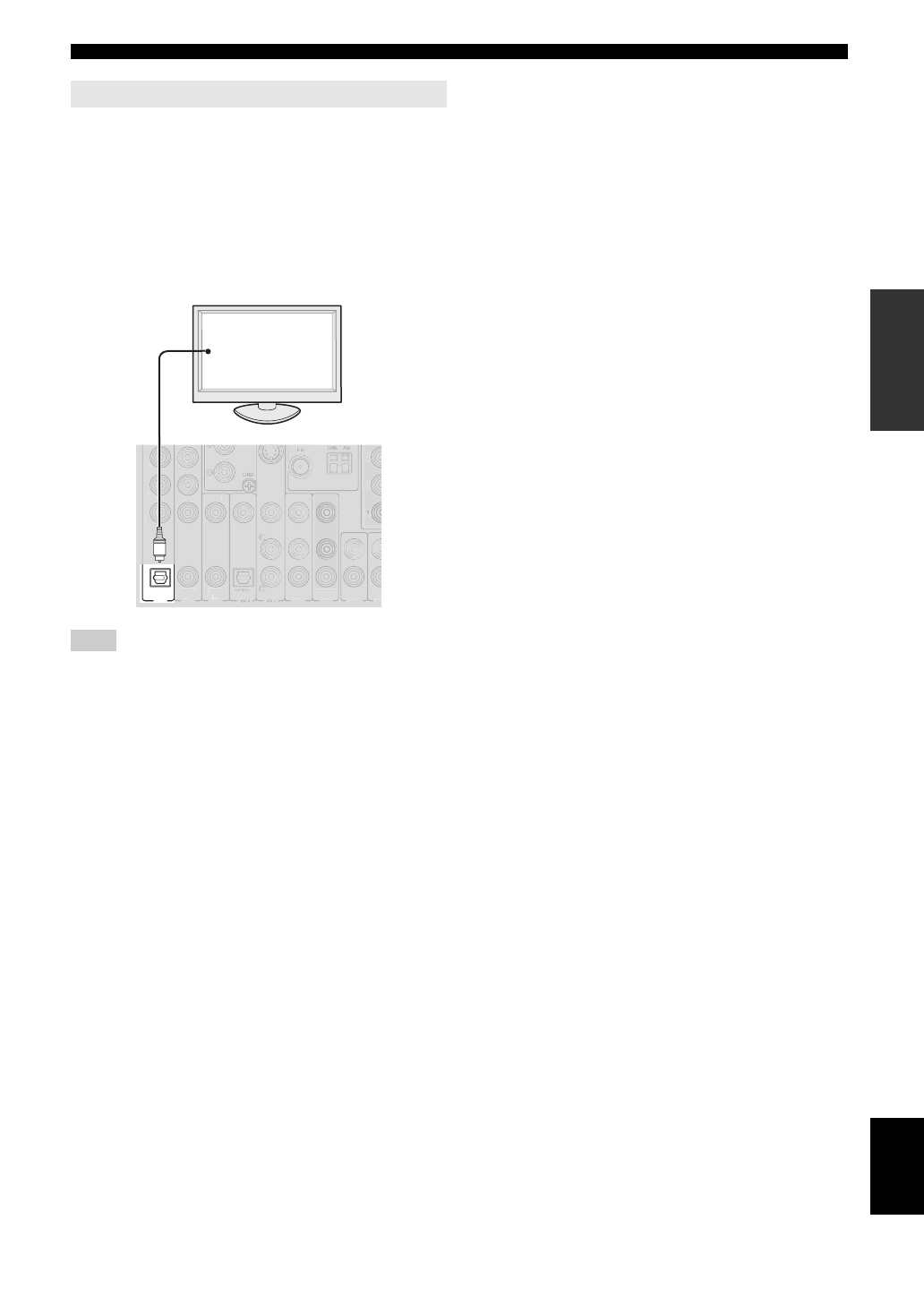

Outputting TV sounds from this unit

OPTICAL

( TV  )

AV

A 1

P

R

P

B

Y

AV 2

COAXIAL

AV 3

(CD)

COAXIAL

AV 6

AV

OUT

AUDIO1

AUD

VIDEO

P

R

P

B

O

Digital output

(optical)

TV
