Connections

English

INTR

ODUCTION

AD
DITIONAL

INFORMA

T

ION

APPENDIX

PRE

PARA

T

ION

BA
S

IC

OPERA

T

ION

AD
VANCED

OPERA

T

ION

This unit has the following input and output jacks. Use jacks and cables appropriate for components that you are
connecting.

■

Audio jacks

■

Video jacks

■

Video/audio jacks

y

•

We recommend that you use a commercially available 19-pin HDMI
cable no longer than 5 meters (16 feet) with the HDMI logo printed on it.

•

Use a conversion cable (HDMI jack

↔

 DVI-D jack) to connect this unit

to other DVI components.

•

You can check the potential problem about the HDMI connection
(page 44).

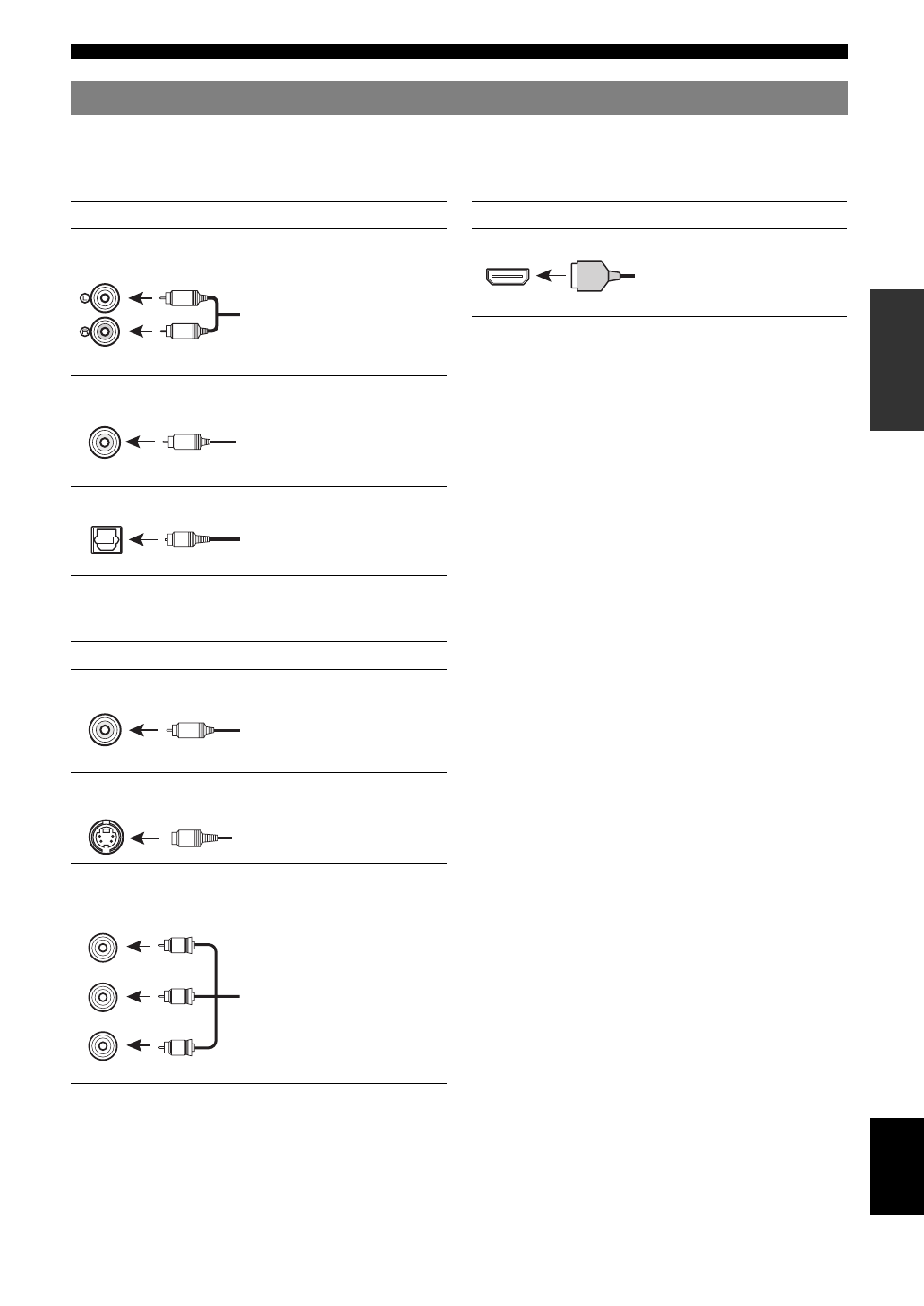

Information on jacks and cable plugs

Jack and cables

Description

Analog audio jacks

To transmit conventional analog

stereo audio signals. Use stereo pin

cables.

COAXIAL jacks

To transmit coaxial digital audio

signals. Use pin cables.

OPTICAL jacks

To transmit optical digital audio

signals. Use optical fiber cables.

Jack and cables

Description

VIDEO jacks

To transmit conventional

composite video signals. Use pin

cables.

S VIDEO jack

To transmit S-video signals that

include luminance (Y) and

Cameroonians (C) components.

Use an S-video cable.

COMPONENT VIDEO
jacks

To transmit component video

signals that include luminance (Y),

chrominance blue (P

B

) and

chrominance red (P

R

) components.

Use component video cables.

L

R

(white)

(red)

COAXIAL

C

(orange)

OPTICAL

O

VIDEO

V

(yellow)

S VIDEO

S

P

R

P

B

Y

COMPONENT

VIDEO

P

B

Y

P

R

(red)

(blue)

(green)

Jack and cables

Description

HDMI jacks

To transmit digital video and

digital audio signals. Use HDMI

cables.

HDMI

HDMI
