17

 En

Connections

English

INTR

ODUCTION

AD
DITIONAL

INFORMA

T

ION

APPENDIX

PRE

PARA

T

ION

BA
S

IC

OPERA

T

ION

AD
VANCED

OPERA

T

ION

y

•

Input jacks in parentheses indicate the jacks to which the SCENE function (page 24) is assigned by the initial factory settings. To use the SCENE function
with the initial factory settings, connect external components that support the SCENE function to these jacks.

•

You can change the name of the input source displayed on the front panel display as necessary (page 53).

•

See page 58 on how to use the ZONE2/3 OUT jacks.

•

You can select the video to be output when “AUDIO1” or “AUDIO2” is selected as the input source or assign another video input jack to “AV3” or “AV4”
(page 45). In case the default combinations of the audio/video input jacks on this unit do not correspond to your external component, change the video
input jack assignments according to your external component.

■

Audio player

y

•

If your CD player has a coaxial digital output jack, connect it to the AV3 jack of this unit. In this case, you can use the SCENE function (page 24) with the
initial factory settings.

•

When connecting a turntable with a low-output MC cartridge to the PHONO jacks, use an in-line boosting transformer or MC-head amplifier.

•

Connect your turntable to the GND terminal of this unit to reduce noise in the signal.

■

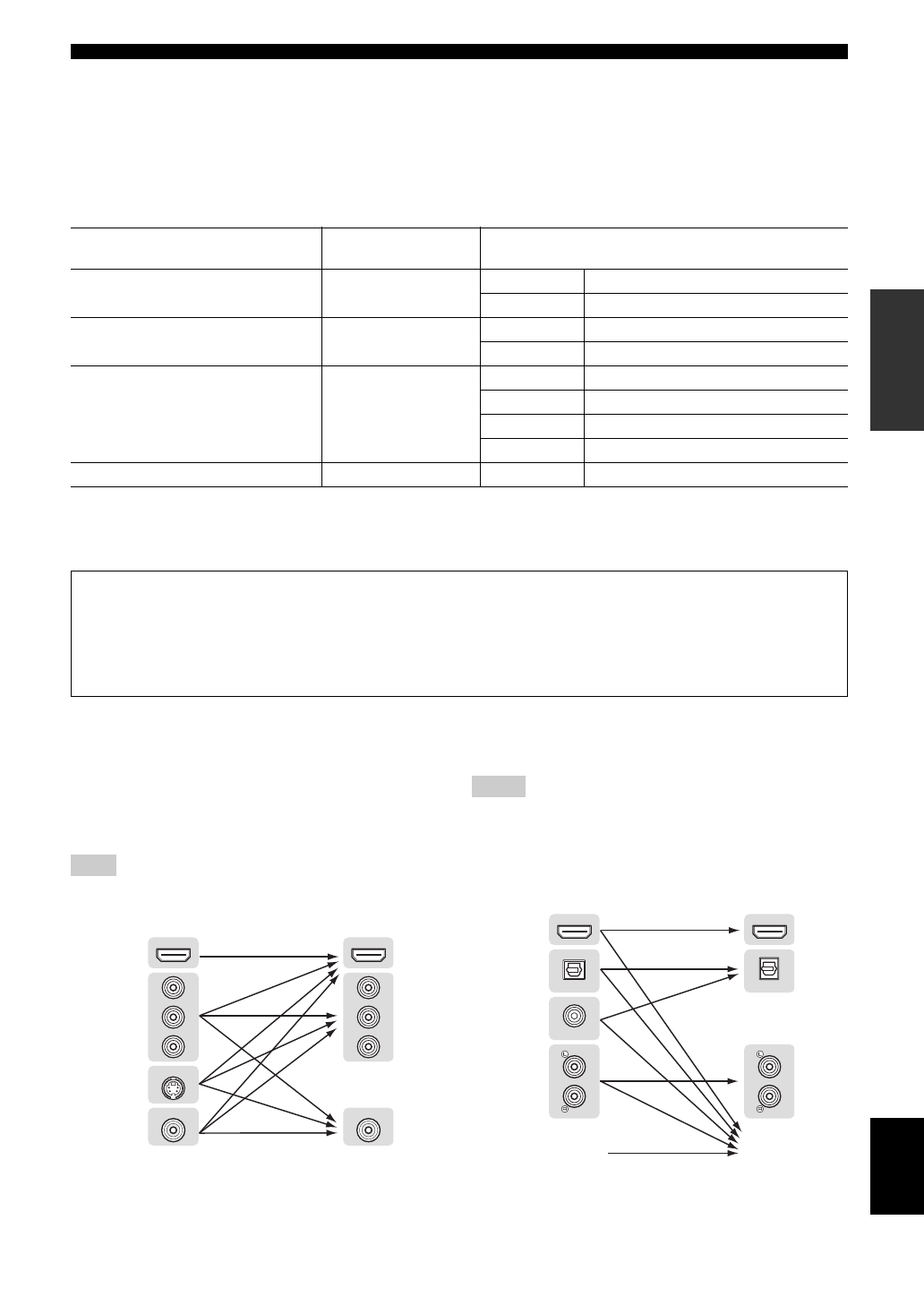

Internal signal flow

Video signal flow

This unit automatically converts input video signals and
outputs the signals to the HDMI OUT jacks and
MONITOR OUT (COMPONENT VIDEO and VIDEO)
jacks (video conversion).

Note

•

The AV OUT (composite video) jack only outputs video signals input to
the composite video input jacks.

Audio signal flow

Notes

•

Audio signals input to the HDMI input jacks are output from either the
speaker terminals or HDMI OUT 1/2 jacks depending on the “Audio
Output” setting (page 51).

•

The DIGITAL AUDIO (OPTICAL OUT) jack outputs digital audio
signals only when signals are input to the optical or coaxial optical input
jacks and corresponding input source is selected.

External component

Output jacks on

components

Input jacks on this unit

External component with optical digital

output

Optical digital output

AV 1 (TV)

OPTICAL

AV 4

OPTICAL

External component with coaxial digital

output

Coaxial digital output

AV 2

COAXIAL

AV 3 (CD)

COAXIAL

External component with analog audio

output

Analog audio output

AV 5

Analog audio

AV 6

Analog audio

AUDIO 1

Analog audio

AUDIO 2

Analog audio

Turntable

Analog audio output

PHONO

Analog audio

About audio/video output jacks

When using the AV OUT jacks:

 connect these jacks to composite video and analog audio input jacks of an external

component.

When using the AUDIO OUT jacks:

 connect these jacks to analog audio input jacks of an external component.

When using the DIGITAL AUDIO (OPTICAL OUT) jack:

 connect this jack to optical digital input jack of an

external component.

HDMI

S VIDEO

VIDEO

P

R

P

B

Y

HDMI OUT

VIDEO

P

R

P

B

Y

HDMI

Component

video

S-video

Input

Output

Composite

video

HDMI

OPTICAL

HDMI OUT

OPTICAL

OUT

COAXIAL

HDMI

Optical

digital

Analog

Input

Output

MULTI CH INPUT

Speaker

terminals

Coaxial

digital
