The lithium-ion battery is protected against deep discharging
by the “Electronic Cell Protection (ECP)”. When the battery is
empty, the machine is switched off by means of a protective
circuit: The inserted tool no longer rotates.



Do not continue to press the On/Off switch after the
machine has been automatically switched off.

The bat-

tery can be damaged.

Observe the notes for disposal.

Removing the battery

The battery

5

 is equipped with two locking levels that should

prevent the battery from falling out when pushing the battery
unlocking button

6

 unintentionally. As long as the battery is

inserted in the power tool, it is held in position by means of a
spring.

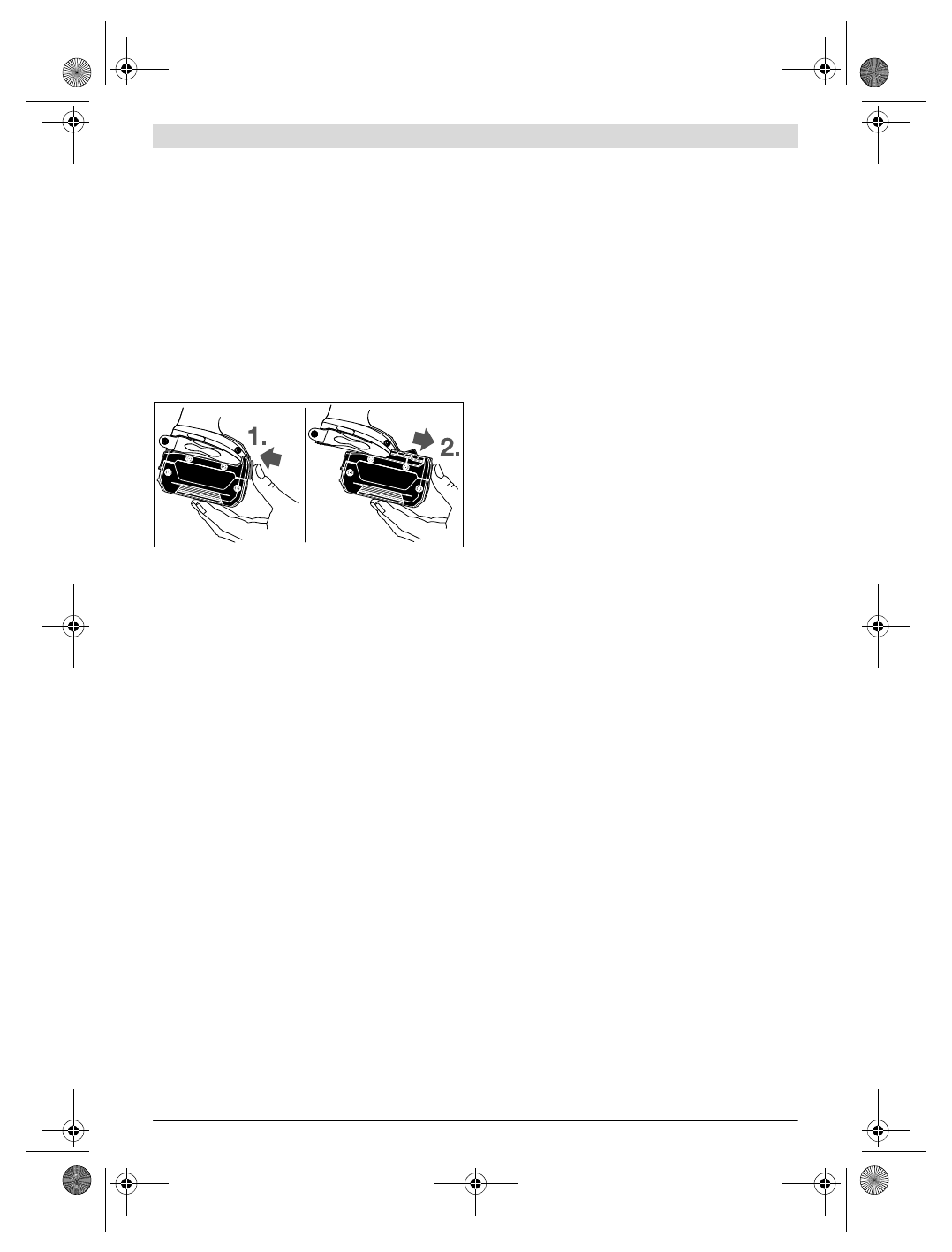

To remove the battery

5

, press the unlocking button

6

 and

pull out the battery toward the front.

Do not exert any force.

Changing the Tool (see figure A – C)



Before any work on the machine itself (e. g. mainte-
nance, tool change, etc.) as well as during transport
and storage, remove the battery from the power tool.

There is danger of injury when unintentionally actuating
the On/Off switch.



Regularly clean the power tool’s air vents.

The motor’s

fan will draw the dust inside the housing and excessive ac-
cumulation of powdered metal may cause electrical haz-
ards.

GDR 14,4 V-LI / GDR 18 V-LI / GDX 14,4 V-LI / GDX 18 V-LI:
Inserting

Pull the locking sleeve

2

 forward, push the insert tool to the

stop into the tool holder

1

 and release the locking sleeve

2

 to

lock the insert tool.

Use only screwdriver bits with ball catch

11

 (DIN 3126-E6.3).

Other screwdriver bits

13

 can be used with a universal bit

holder with ball catch

12

.

Removing

Pull the locking sleeve

2

 forward and remove the insert tool.

GDS 14,4 V-LI / GDS 18 V-LI / GDX 14,4 V-LI / GDX 18 V-LI:



When working with an application tool, pay attention
that the application tool is connected securely on the
tool holder.

When the application tool is not securely con-

nected with the tool holder, it can come off during applica-
tion.

Slide the application tool

14

 onto the square drive of the tool

holder

1

.

With this system, there will be a slight amount of play around
the application tool

14

 after connecting securely to the tool

holder

1

; this has no influence on the function/safety.

Operation

Method of Operation

The tool holder

1

 with the tool is driven by an electric motor

via a gear and impact mechanism.

The working procedure is divided into two phases:

Screwing in

 and

tightening

 (impact mechanism in action).

The impact mechanism is activated as soon as the screwed
connection runs tight and thus load is put on the motor. In this
instance, the impact mechanism converts the power of the
motor to steady rotary impacts. When loosening screws or
nuts, the process is reversed.

Starting Operation

Inserting the battery

Set the rotational direction switch

7

 to the centre position to

protect the power tool against accidental starting.

Insert the charged battery

5

 from the front into the base of the

power tool until the battery is securely locked.

Reversing the rotational direction (see figure D)

The rotational direction switch

7

 is used to reverse the rota-

tional direction of the machine. However, this is not possible
with the On/Off switch

8

 actuated.

Right Rotation:

 For driving in screws and tightening nuts,

press the rotational direction switch

7

 through to the left

stop.

Left Rotation:

 For loosening and unscrewing screws and

nuts, press the rotational direction switch

7

 through to the

right stop.

Switching On and Off

To

start

 the machine, press the On/Off switch

8

 and keep it

pressed.

The power light

9

 lights up when the On/Off switch

8

 is slightly

or completely pressed, and allows the work area to be illumi-
nated when lighting conditions are insufficient.

To

switch off

 the machine, release the On/Off switch

8

.

To save energy, only switch the power tool on when using it.

Adjusting the Speed

The speed of the switched-on power tool can be variably ad-
justed, depending on how far the On/Off switch

8

 is pressed.

Light pressure on the On/Off switch

8

 results in a low rotation-

al speed. Further pressure on the switch results in an increase
in speed.

Working Advice



Apply the power tool to the screw/nut only when it is
switched off.

Rotating tool inserts can slip off.

The torque depends on the impact duration. The maximum
achieved torque results from the sum of all individual torques
achieved through impact. The maximum torque is achieved
