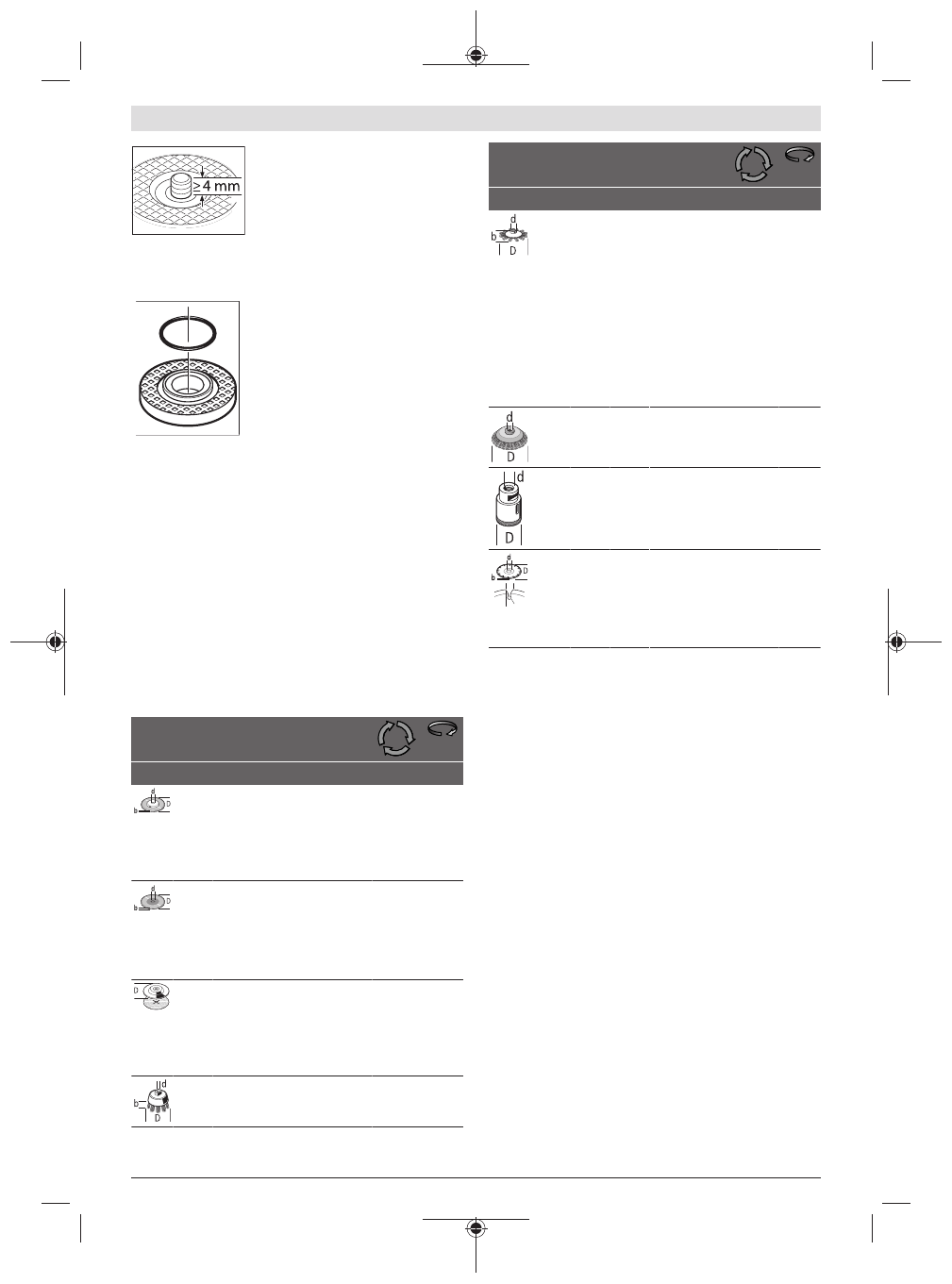

After fitting the mounting flange and
the grinding/cutting disc, the free
thread length of the grinding spindle
must be

at least 4 mm

.

Ensure that the abrasive tool is firmly seated, so that it does
not twist away from the spindle in the runout of the power
tool.

A plastic part (O-ring) is fitted around
the centring collar in the mounting
flange

(18)

.

If the O-ring is missing

or damaged,

 the mounting

flange

(18)

 must be replaced before

operation can resume.

u

After fitting the abrasive tool, check that the abrasive
tool is fitted correctly and can turn freely before
switching on the power tool. Make sure that the abras-
ive tool does not brush against the protective guard or
other parts.

Approved abrasive tools

You can use all the abrasive tools mentioned in these operat-
ing instructions.
The permissible speed [min

-1

] or the circumferential speed

[m/s] of the abrasive tools used must at least match the val-
ues given in the table.
It is therefore important to observe the permissible

rota-

tional/circumferential speed

 on the label of the abrasive

tool.

Max. [mm]

[mm]

[°]

D

b

s

d

α

[min

-1

] [m/s]

100

115

125

150

7.2

7.2

7.2

7.2

–

–

–

–

16

22.2

22.2

22.2

–

–

–

–

9000

9000

9000

7500

80

80

80

80

100

115

125

150

3.2

4.2

4.2

4.2

–

–

–

–

16

22.2

22.2

22.2

–

–

–

–

9000

9000

9000

7500

80

80

80

80

100

115

125

150

–

–

–

–

–

–

–

–

–

–

–

–

–

–

–

–

9000

9000

9000

7500

80

80

80

80

75

30

–

M 14

–

9000

45

Max. [mm]

[mm]

[°]

D

b

s

d

α

[min

-1

] [m/s]

100

100

115

115

125

125

150

150

24

19

24

19

24

19

24

19

–

–

–

–

–

–

–

–

M 10

16

M 14

22.2

M 14

22.2

M 14

22.2

–

–

–

–

–

–

–

–

9000

9000

9000

9000

9000

9000

7500

7500

80

80

80

80

80

80

80

80

125

–

–

M 14

–

9000

80

82

–

–

M 14

–

9000

80

α

s

100

115

125

150

6

6

6

6

10

10

10

10

16

22.2

22.2

22.2

> 0

> 0

> 0

> 0

9000

9000

9000

7500

80

80

80

80

Rotating the machine head (see figure G)

(GWS 18V-10 / GWS 18V-10 PC)

u

Remove the battery from the power tool before carry-
ing out work on the power tool (e.g. maintenance,
changing tool, etc.). The battery should also be re-
moved for transport and storage.

 There is risk of injury

from unintentionally pressing the on/off switch.

The machine head can be rotated in 90° increments. In this
way, the on/off switch can be brought into a more favourable
handling position for particular applications, e.g. for left-
handed tool users.
Completely unscrew the four screws (

➊

). Rotate the ma-

chine head carefully,

without removing it from the hous-

ing

, into the new position (

➋

). Screw in and retighten the

four screws (

➌

).

Dust/Chip Extraction

Dust from materials such as lead-containing coatings, some
wood types, minerals and metal can be harmful to one’s
health. Touching or breathing-in the dust can cause allergic
reactions and/or lead to respiratory infections of the user or
bystanders.
Certain dust, such as oak or beech dust, is considered carci-
nogenic, especially in connection with wood-treatment ad-
ditives (chromate, wood preservative). Materials containing
asbestos may only be worked by specialists.
– Provide for good ventilation of the working place.
