46

1.1

INTRODUCTION

The

“Slim HPS”

are hot water generators

designed for medium-sized heating plants.
Are designed and built in accordance with

the european directives 2009/142/CEE,
2004/108/CEE, 2006/95/CEE and
92/42/CEE.
These appliances can be fired by natural
gas (methane) and butane gas (G30) or

propane gas (G31).

The instructions given in this manual are
provided to ensure proper installation and
perfect operation of the appliance.

1

DESCRIPTION OF THE BOILER

1.2

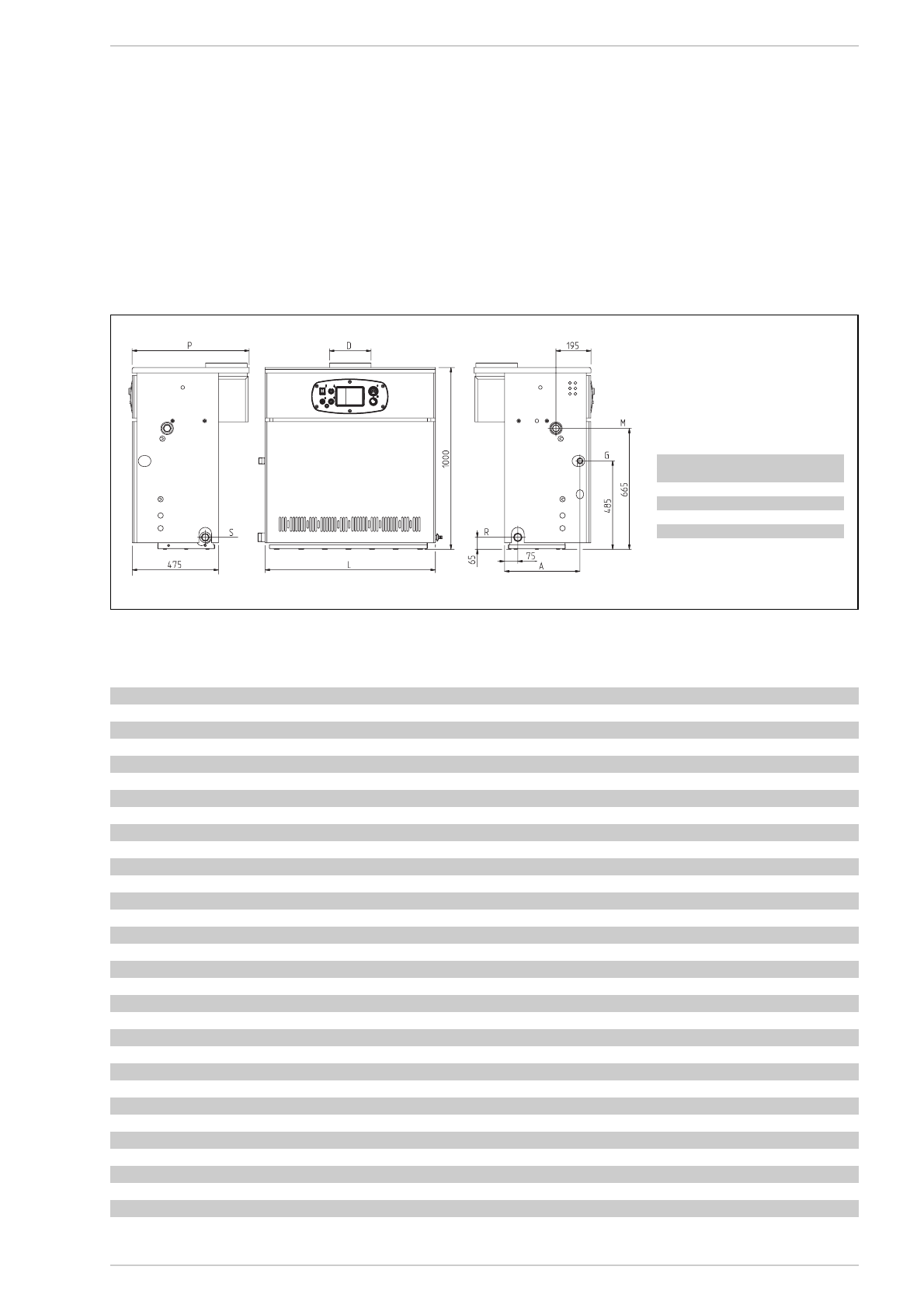

DIMENSIONS

Fig. 1

R C.H. return

1

1

/

2

”

M C.H.

flow

1

1

/

2

”

G Gas

connection

1”

S Boiler/filling

drain

3/4”

L

D

P

A

mm

ø mm

mm mm

1.80

940

180

645 415

1.99

1140

225

645 415

1.110

1240

250

670 400

1.3

TECHNICAL FEATURES

Slim HPS

1.80

1.99

1.110

Heat output

kW

56.0-78.7

69.9-98.6

74.7-107.9

Heat input

kW

62.2-87.4

77.7-109.5

85.5-120.5

Sections

n°

9

11

12

Power consumption

W

16

16

69

Maximum water head

bar

4

4

4

Test pressure

bar

6

6

6

Water content

l

28

34

37

Category

II

2H3+

II

2H3+

II

2H3+

Type

B

11BS

B

11BS

B

11

Smokes temperature

°C

160

144

140

Smokes flow

kg/h

180

287

330

Maximum temperature

°C

95

95

95

C.H. setting range

°C

40÷85

40÷85

40÷85

Main burner nozzles

Quantity

n°

8

10

11

Natural gas

ø mm

2.95

2.95

2.95

G30 - G31

ø mm

1.70

1.70

1.70

Gas consumption *

Natural gas

m

3

st/h

9.2

11.6

12.7

Butane (G30)

kg/h

6.8

8.5

9.3

Propane (G31)

kg/h

6.7

8.3

9.1

Burner gas pressure

Natural gas

mbar

4.6 - 9.1

4.7 - 9.3

4.6 - 9.3

Butane (G30)

mbar

12.3 - 25.4

12.5 - 25.1

12.6 - 25.6

Propane (G31)

mbar

16.1 - 30.2

16.6 - 32.7

16.6 - 34.3

Gas supply pressure

Natural gas

mbar

20

20

20

Butane (G30)

mbar

30

30

30

Propane (G31)

mbar

37

37

37

Weight

kg

266

322

350

*  The gas consumptions refer to the calorific value at standard conditions at 15°C - 1013 mbar.
